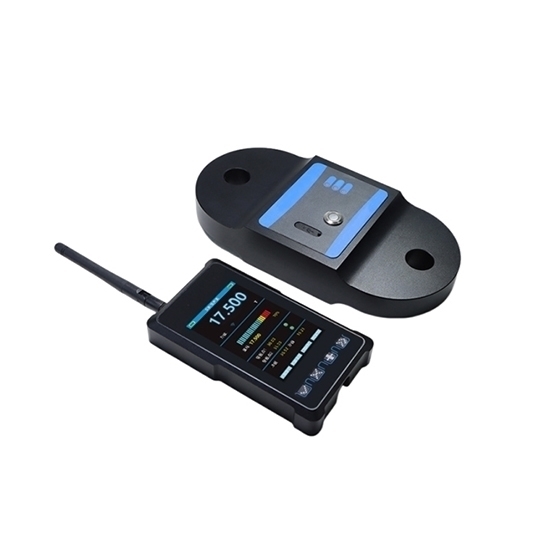

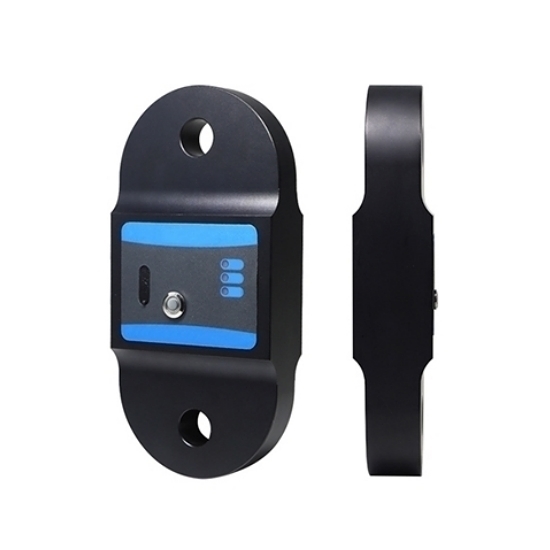

Wireless Digital Tension Dynamometer, 25 ton/ 100 ton/ 200 ton

Write a review

$1,393.78

Wireless digital tension dynamometer has optional capacities ranging from 25T to 200T, with KN/T/IB/KG one‑click unit switching, 200m high‑speed wireless transmission, alloy steel 42CrMo for wear and corrosion resistance. Ideal for industrial lifting, cable tension testing, and material analysis. Order now to boost your workflow efficiency.

Capacity *

SKU: ATO-DYN-WDT

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Professional wireless digital dynamometer is designed for heavy-duty lifting applications with 25 ton to 200 ton capacity options, featuring wireless data transmission, real-time force monitoring and durable alloy steel housing. Perfect for crane operators, lifting engineers and industrial buyers. Buy now and select your suitable model.

Specification

Model	ATO-DST-BH-25T	ATO-DST-BH-35T	ATO-DST-BH-50T	ATO-DST-BH-70T	ATO-DST-BH-100T	ATO-DST-BH-200T
Capacity	25000kg (25 ton)	35000kg (35 ton)	50000kg (50 ton)	70000kg (70 ton)	100000kg (100 ton)	200000kg (200 ton)
Output Sensitivity	2.0 ± 0.05mV/V
Zero Output	±1% F.S.
Non-linearity	0.3% F.S.
Hysteresis	0.3% F.S.
Repeatability	0.1% F.S.
Creep	0.1% F.S. (30 minutes)
Temperature Sensitivity Drift	0.05% F.S./10°C
Zero Temperature Drift	0.05% F.S./10°C
Response Frequency	10kHz
Material	Alloy steel
Impedance	350Ω
Insulation Resistance	≥5000MΩ/100VDC
Operating Voltage	5-15V
Operating Temperature Range	-20°C~60°C
Safety Overload	1.5
Limit overload	3
Wireless Transmission Distance	200m (No Shade)
Endurance	6 hours
Handheld Wireless Receiver Parameters
Display indexing	-99999~999999
Wireless Communication Linear Distance	>100m
Battery Charge and Discharge	Can be performed about 1000 times
Temperature Drift	Less than 20ppm
Working	12 hours of continuous operation on a full charge
Battery Capacity	3200mAh
Environment	-20°C to 50°C
Meter Weight	Approx. 290g
Protection Class	IP65

Features

Various Capacity Measurement: This wireless digital tension dynamometer supports 25/35/50/70/100/200 ton load ranges for heavy lifting applications. The wide capacity options meet different industrial lifting needs with reliable force measurement.
200m Wireless Transmission: Provides wireless data transmission up to 200m with a handheld receiver for real-time monitoring. This digital tension dynamometer enables safer operation by allowing remote load reading during lifting processes.
42CrMo Alloy Steel Construction: Made of high-strength 42CrMo alloy steel, the dynamometer features excellent wear, corrosion and oxidation resistance. The rugged construction ensures long service life in harsh lifting environments.
High Accuracy Measurement: The wireless dynamometer features 0.3% FS non-linearity and 0.1% FS repeatability for stable and accurate force measurement. It helps prevent overload and improve lifting safety.
Smart Data & Alarm Functions: This digital dynamometer supports KN/T/LB/KG unit switching, 800-group peak records and multiple alarms. These intelligent functions make load monitoring easier and more efficient.
Waterproof and Durable: With waterproof performance and -20°C to 60°C operating temperature, the wireless tension dynamometer performs reliably in outdoor and demanding industrial environments.

Dimension (unit: mm)

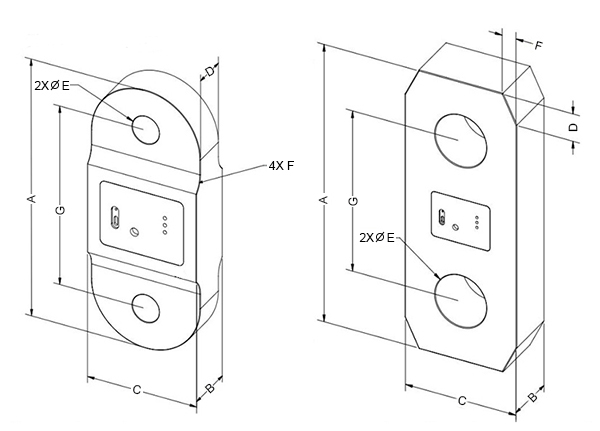

Wireless digital tension dynamometer dimension

Model	Rated Load	Dimension							Material	Net Weight
Model	Rated Load	øE	A	B	C	G	D	F	Material	Net Weight
ATO-DST-BH-25T	25T	53	340	60	125	215	40	20	Alloy steel	15KG
ATO-DST-BH-35T	35T	60	370	70	140	225	40	20	Alloy steel	22KG
ATO-DST-BH-50T	50T	73	400	75	160	230	40	20	Alloy steel	30KG
ATO-DST-BH-70T	70T	73	440	80	180	260	60	40	Alloy steel	39KG
ATO-DST-BH-100T	100T	99	540	100	220	320	60	40	Alloy steel	74KG
ATO-DST-BH-200T	200T	125	650	140	300	350	80	60	Alloy steel	173KG

Handheld Wireless Receiver

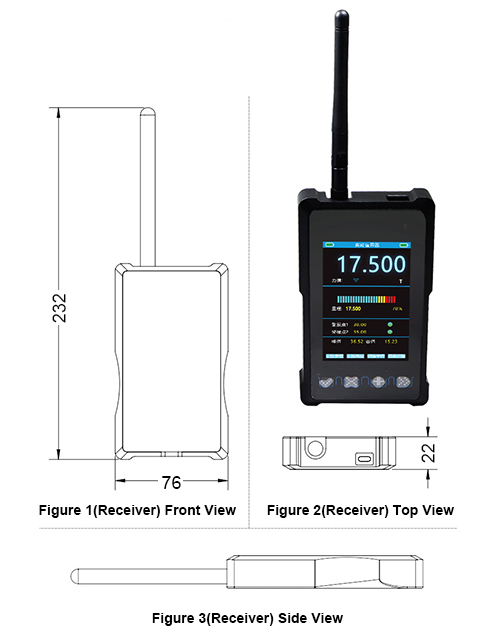

Wireless digital tension dynamometer handle receiver dimension

Handheld Wireless Receiver Details

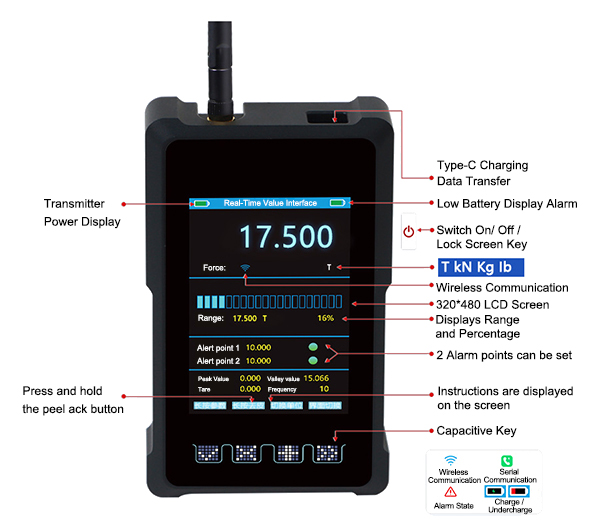

Wireless digital tension dynamometer handle receiver detail

Package Include

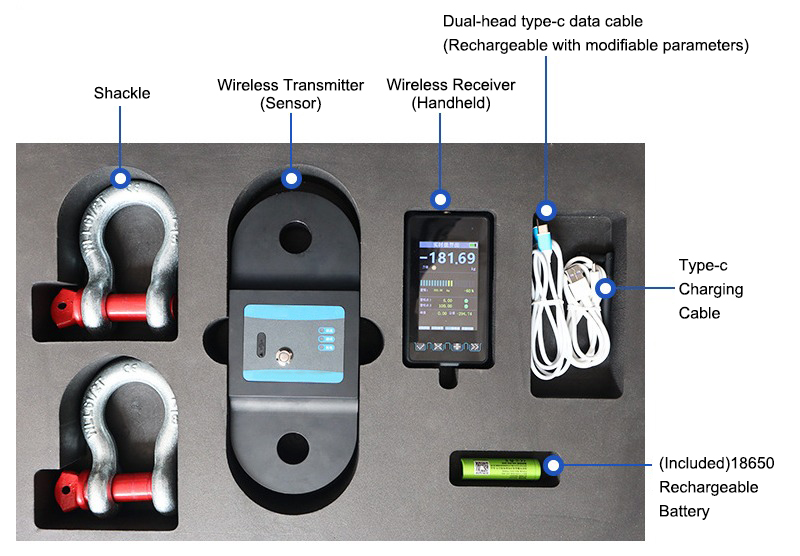

Wireless digital tension dynamometer package

Tips: What is the difference between a dynamometer and a load cell?

A dynamometer and a load cell both measure force, but they are designed for different purposes. A load cell is mainly a force-sensing component that converts applied force into an electrical signal and is usually integrated into weighing systems, machines or automated equipment. A dynamometer is a complete force measurement device that provides direct load readings, often with built-in displays or wireless transmission functions. For lifting, crane operations and tension testing, a dynamometer offers a more convenient solution for real-time force monitoring and field applications.
