    0.5μF 450V Ceiling Fan Capacitor

    5 out of 5 based on 1 reviews | Write a review
    CBB61 type ceiling fan capacitor is made of metallized polypropylene film sheet, with a capacity of 0.5μF, which is suitable for the operation and starting of all kinds of motor fans with a frequency of 50/60Hz.
    SKU: ATO-FC-CBB61-005
    This product has a minimum quantity of 100
    30-day Returns
    Free Shipping
    Delivery date: 10-12 days

    2 Wire ceiling fan capacitor capacity value 0.5mfd, tolerance ±5%, rated voltage 450V AC, maximum allowable voltage does not exceed 1.1 times the rated voltage, maximum allowable current does not exceed 1.3 times the rated current.


    • Model: ATO-FC-CBB61-005
    • Capacity: 0.5μF
    • Rated Voltage: 450V
    • Tolerance: ±5%
    • Withstand Voltage: 2. 0 Un (2s)
    • Loss: (DF)≤0.0010 100Hz
    • Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
    • Rated Frequency: 50/60Hz
    • Climate Category: 40/105/21
    • Scope of Application: Start, run
    • Appearance: Rectangular
    • Lead Out Method: Cord, pin, insert
    • Dielectric Material: Organic thin film
    • Dimension: 32(W) x 10(L) x 18(H)mm
    • Certificate: CE, CQC

    0.5μF Fan Capacitor 2 Wire Circuit Diagram

    Ceiling fan capacitor circuit diagram

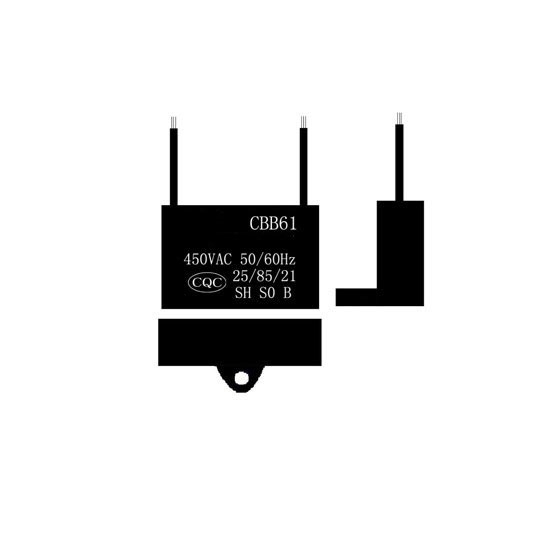

    Ceiling Fan Capacitor Details

    Ceiling fan capacitor detail

    Tips: Do fan capacitors have polarity?

    The capacitors are not positive or negative, the terminals are connected to the external metal layer, and the motor capacitor must be non-polarized. ATO-CBB61 fan capacitors are widely used in ceiling fans, wall fans, standing fans, industrial fans, range hood fans, ventilating fans, pumps, motors, generators, etc.
