    0.8μF 450V Ceiling Fan Capacitor

    5 out of 5 based on 1 reviews | Write a review
    2 Wire ceiling fan capacitor voltage 450V AC, 250V voltage can be customized, capacity 0.8μF, frequency 50/60Hz, small size, easy to install, is ideal for fans, smoke machines, motors, pumps, motors and air conditioning.
    SKU: ATO-FC-CBB61-008
    This product has a minimum quantity of 100
    30-day Returns
    Free Shipping
    Delivery date: 10-12 days

    CBB61 type ceiling fan capacitor with frequency of 50/60Hz AC power supply, rated voltage 450V, 0.8 mfd capacity, reliable insulation performance and long service life, is suitable for starting and running of various electrical motors.


    • Model: ATO-FC-CBB61-008
    • Capacity: 0.8μF
    • Rated Voltage: 450V
    • Tolerance: ±5%
    • Withstand Voltage: 2. 0 Un (2s)
    • Loss: (DF)≤0.0010 100Hz
    • Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
    • Rated Frequency: 50/60Hz
    • Climate Category: 40/105/21
    • Scope of Application: Start, run
    • Appearance: Rectangular
    • Lead Out Method: Cord, pin, insert
    • Dielectric Material: Organic thin film
    • Dimension: 36(W) x 10(L) x 18(H)mm
    • Certificate: CE, CQC

    0.8μF Fan Capacitor 2 Wire Circuit Diagram

    Ceiling fan capacitor circuit diagram

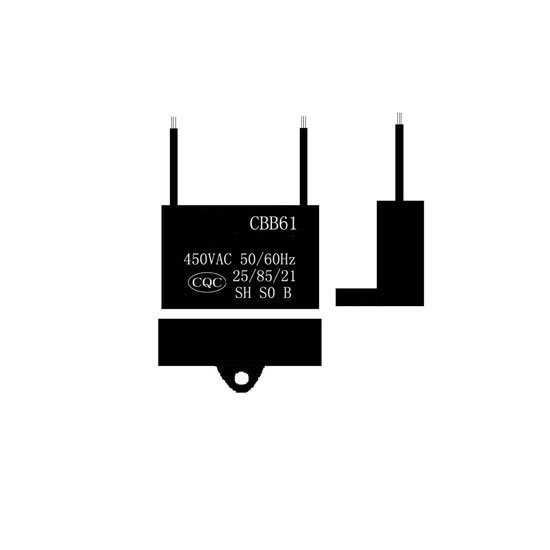

    Ceiling Fan Capacitor Details

    Ceiling fan capacitor detail

    Tips: Are the "principles" of non-polarized and polarized capacitors the same?

    The answer is the same, both non-polarized and polarized capacitors store and release charge, and the voltage on the pole plate (here the electric potential of charge accumulation is called voltage) cannot be changed suddenly.

    The difference lies in the different medium, different performance, different capacity, different structure, and different environment and usage. In turn, according to the needs of production practice, people have experimented and manufactured various functions of capacitors to meet the normal operation of various electrical appliances and new equipment. With the development of science and technology and the discovery of new materials, better quality and diversified capacitors will emerge.
