    1.2μF 450V Ceiling Fan Capacitor

    5 out of 5 based on 1 reviews | Write a review
    Buy 2 wire fan capacitor for ceiling fan, 1.2μF capacity, rated voltage 450V AC, machine frequency 50/60Hz AC power supply electric start and operation, is one of the important accessories for range hoods, motors, pumps, ceiling fans, wall fans and floor fans.
    SKU: ATO-FC-CBB61-012
    This product has a minimum quantity of 100
    30-day Returns
    Free Shipping
    Delivery date: 10-12 days

    2 Wire capacitor ceiling fan rated voltage 450V, 1.2 mdf capacity, low loss at high frequencies, suitable for higher currents, high insulation resistance and long service life, explosion-proof design, can be used indoor and outdoor.


    • Model: ATO-FC-CBB61-012
    • Capacity: 1.2μF
    • Rated Voltage: 450V
    • Tolerance: ±5%
    • Withstand Voltage: 2. 0 Un (2s)
    • Loss: (DF)≤0.0010 100Hz
    • Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
    • Rated Frequency: 50/60Hz
    • Climate Category: 40/105/21
    • Scope of Application: Start, run
    • Appearance: Rectangular
    • Lead Out Method: Cord, pin, insert
    • Dielectric Material: Organic thin film
    • Dimension: 36(W) x 11(L) x 22(H)mm
    • Certificate: CE, CQC

    1.2μF Ceiling Fan Capacitor 2 Wire Connection Diagram

    Ceiling fan capacitor circuit diagram

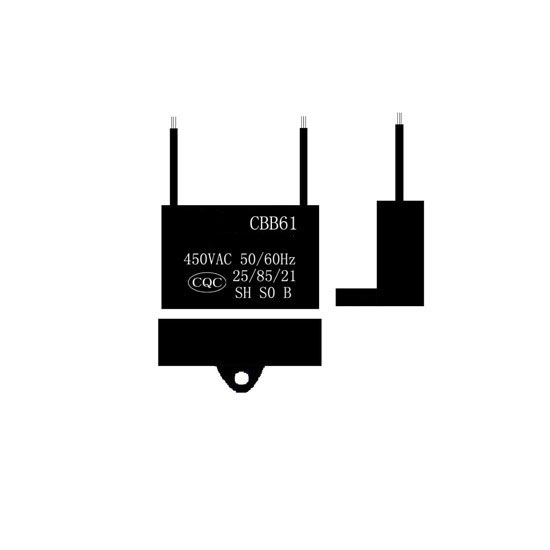

    Ceiling Fan Capacitor Details

    Ceiling fan capacitor detail

    Tips: Is the "medium" of non-polarized capacitor and polarized capacitor the same?

    The answer is different, the medium of capacitor is the material between the two poles of capacitor, most of the polarized capacitors use electrolyte as the medium material, generally the capacitor of the same volume has a large capacitance. In addition, the capacitance of the same volume of polarized capacitors made by different electrolytic materials and processes will be different. Moreover, the voltage resistance and the dielectric material are also closely related. There are many materials for non-polarized capacitors, but most of them use metal oxide film, polyester, etc. The reversible or irreversible performance of the dielectric determines the environment of polarized and non-polarized capacitors.

    Existing reviews of 1.2μF 450V Ceiling Fan Capacitor
    The ceiling fan capacitor fixed my ceiling fan perfectly!
    I have two large ceiling fans in a large room, one of which only runs at low speed, actually below low speed, no matter how many times you pull the chain. This capacitor held the fan perfectly and saved me the expense and effort of replacing two fans in the room. All speeds run perfectly .
    From: Noel | Date: 28/06/2022
