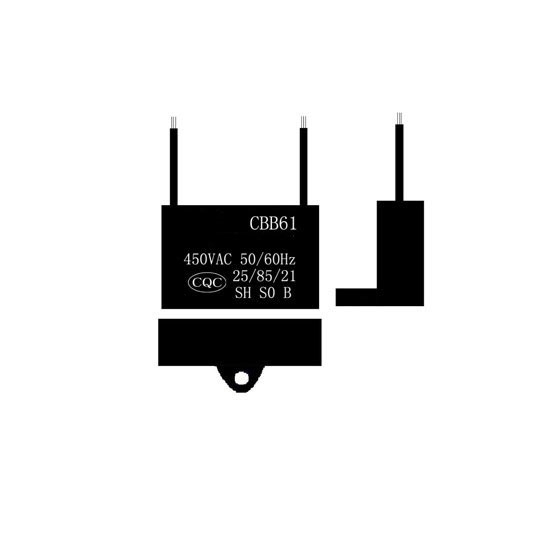

1μF 450V Ceiling Fan Capacitor

Buy ceiling fan capacitor online, low price, high overload capacity, 1μF capacity, voltage 450V, 250V can also be customized, suitable for all kinds of ventilation fans, pedestal fans, washing machines and other appliances.

Specification

• Model: ATO-FC-CBB61-01
• Capacity: 1μF
• Rated Voltage: 450V
• Tolerance: ±5%
• Withstand Voltage: 2. 0 Un (2s)
• Loss: (DF)≤0.0010 100Hz
• Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
• Rated Frequency: 50/60Hz
• Climate Category: 40/105/21
• Scope of Application: Start, run
• Appearance: Rectangular
• Lead Out Method: Cord, pin, insert
• Dielectric Material: Organic thin film
• Dimension: 36(W) x 10(L) x 20(H)mm
• Certificate: CE, CQC

1 mfd Fan Capacitor Wiring Diagram

Ceiling Fan Capacitor Details

Tips: Characteristics of polarized capacitors

Polarized electrolytic capacitors are usually used in power supply circuits or medium and low frequency circuits for power filtering, decoupling, signal coupling, time constant setting and DC isolation. Its capacity range is large, generally 1~1000μF, rated working voltage range is 6.3~450V. Its disadvantages are dielectric loss, large capacity error (maximum allowable deviation is +100%, -20%), poor heat resistance, and easy to fail after long storage time.
