12μF 450V Ceiling Fan Capacitor

Purchase the ceiling fan capacitors at lowest price, capacity value 20 μF, model CBB61, double lead length color can be customized, fan capacitor shell made of environmentally friendly materials, good sealing, high temperature resistance, explosion-proof.

Specification

• Model: ATO-FC-CBB61-120
• Capacity: 12μF
• Rated Voltage: 450V
• Tolerance: ±5%
• Withstand Voltage: 2. 0 Un (2s)
• Loss: (DF)≤0.0010 100Hz
• Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
• Rated Frequency: 50/60Hz
• Climate Category: 40/105/21
• Scope of Application: Start, run
• Appearance: Rectangular
• Lead Out Method: Cord, pin, insert
• Dielectric Material: Organic thin film

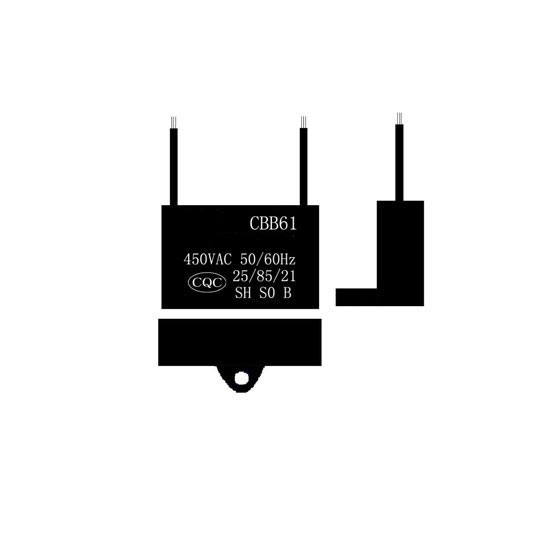

• Dimension: 48(W) x 28(L) x 40(H)mm
• Certificate: CE, CQC

12μF Ceiling Fan Capacitor Wiring Diagram

Ceiling Fan Capacitor Details

Tips: Characteristics of non-polarity capacitors

Non-polarized capacitors can be used in pure AC circuits and are mainly used for high frequency filtering because their capacitance is generally small. Typical capacitance value 0.1uF, 0.01uF, etc. are commonly used. The above value of non-polarized capacitor is often placed at the chip power supply to eliminate high frequency interference.
