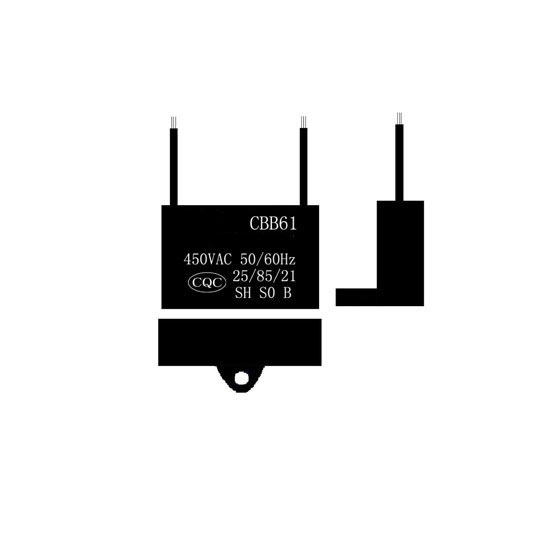

    2.5μF 450V Ceiling Fan Capacitor

    5 out of 5 based on 1 reviews | Write a review
    Low cost 2.5 mfd ceiling fan capacitor for sale, rated frequency 50/60 Hz, capacitor tolerance 5%, CBB61 fan capacitors are suitable for starting and running pedestal fans, range hoods, air conditioners, fans and pumps, etc.
    SKU: ATO-FC-CBB61-025
    This product has a minimum quantity of 100
    30-day Returns
    Free Shipping
    Delivery date: 10-12 days

    2 Wire ceiling fan capacitor capacity value 2.5μF, voltage 450V AC, small fan capacitor can control the start and stop mechanism of different types of ceiling fan motors.


    • Model: ATO-FC-CBB61-025
    • Capacity: 2.5μF
    • Rated Voltage: 450V
    • Tolerance: ±5%
    • Withstand Voltage: 2. 0 Un (2s)
    • Loss: (DF)≤0.0010 100Hz
    • Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
    • Rated Frequency: 50/60Hz
    • Climate Category: 40/105/21
    • Scope of Application: Start, run
    • Appearance: Rectangular
    • Lead Out Method: Cord, pin, insert
    • Dielectric Material: Organic thin film
    • Dimension: 37(W) x 15(L) x 26(H)mm
    • Certificate: CE, CQC

    2.5μF Ceiling Fan Capacitor 2 Wire Wiring Diagram

    Ceiling fan capacitor circuit diagram

    Ceiling Fan Capacitor Details

    Ceiling fan capacitor detail

    Tips: How to balance the fan blades of the ceiling fan?

    Power off to remove the fan. First remove the blade, to a piece of the original not deformed as a guideline, the deformation of the blade overlap in the blade not deformed, you can find out the location of the deformation, it can be adjusted. After adjusting the blade installed in the rotor, the fan is lifted from the ground thirty, forty centimeters (convenient adjustment) on the ground to find a fixed point to measure the blade tail high, low point, three blade balance can be.

    Existing reviews of 2.5μF 450V Ceiling Fan Capacitor
    Inexpensive and easy to use fan capacitors
    Both capacitors on the ceiling fan are broken, some fan speeds are not functional and the lights are dimmed. I replaced the capacitors strip by strip to the same order/location on the fan switch and reinstalled the fan switch, put all the speeds back in and now high/medium/low speeds work and the lights are on again.
    From: Alger | Date: 06/11/2022
