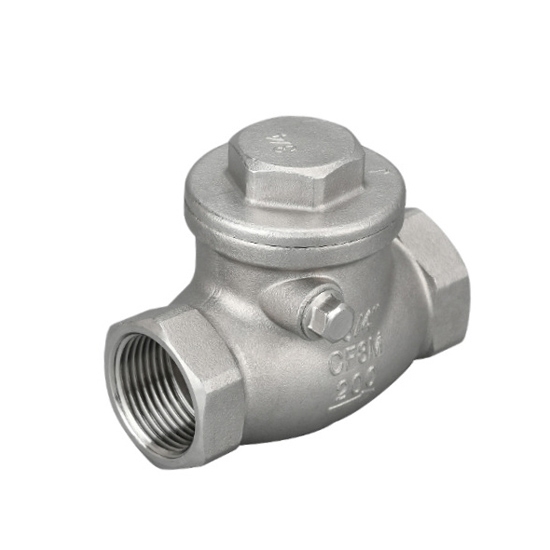

    1-1/4" Stainless Steel Swing Check Valve, Horizontal

    $70.38
    The provided 1-1/4 inch stainless steel swing check valve can resist corrosion, high temperature and high pressure. 304/316 materials, BSP/BSPT/NPT thread for selection. 200 WOG horizontal check valve, DN32, suitable for applications where backflow prevention is required.
    *
    *
    SKU: ATO-SSSCV-114
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    High quality 1-1/4” swing check valve for sale online. Horizontal check valve with 304/316 stainless steel, DN 32 and 200 WOG working pressure and three thread standard (BSP/BSPT/NPT), usually used in HVAC systems, water treatment plants and industrial processes.

    Specifications

    • Model: ATO-H14W
    • Check Valve Type: Swing
    • Shape: Horizontal
    • Nominal Diameter: 1-1/4 inch (32mm)
    • Working Pressure: 200 WOG
    • Product Material: 304/316 Stainless Steel
    • Connection Form: Thread
    • Thread Standard: BSP, BSPT, NPT
    • Temperature Range: -20°C~300°C
    • Weight: 0.695kg
    • Applicable Medium: Water, Oil, Gas, Nitric Acid, Acetic Acid

    Details

    Swing check valve dimension

    Main Part Materials
    NO. Part Name Materials QTY
    1 BODY CF8/CF8M 1
    2 DISC CF8/CF8M 1
    3 HANGGER PIN SS304/SS316 1
    4 JOINT GASKET PTRE/RPTFE 1
    5 CAP CF8/CF8M 1
    Dimension (Unit: mm)
    DN D L±1.5 H
    32 31 100 55


    Applications

    A stainless steel swing check valve is a type of valve used to regulate the flow of fluids or gases in a pipeline. It is commonly used in applications where backflow prevention is necessary, such as in wastewater treatment plants, oil and gas refineries, and chemical processing facilities.

    Swing check valve applications

    Tips: Swing Check Valve Applications in Oil and Gas Industry

    Swing check valves are commonly used in the oil and gas industry due to their ability to prevent backflow, protect equipment, and provide reliable and efficient flow control. Some common applications of swing check valves in the oil and gas industry include:

    • Pump and compressor discharge: Swing check valves are used to prevent backflow and protect pumps and compressors from damage caused by reverse flow.
    • Pipeline protection: Swing check valves are installed in pipelines to prevent backflow and protect equipment such as meters and valves.
    • Separator systems: Swing check valves are used in separator systems to ensure proper flow control and prevent backflow.
    • Refineries: Swing check valves are used in refineries to control the flow of materials through different stages of the refining process.
    • Offshore platforms: Swing check valves are used in offshore platforms to control flow and prevent backflow in various applications such as wellheads, pipelines, and seawater systems.
