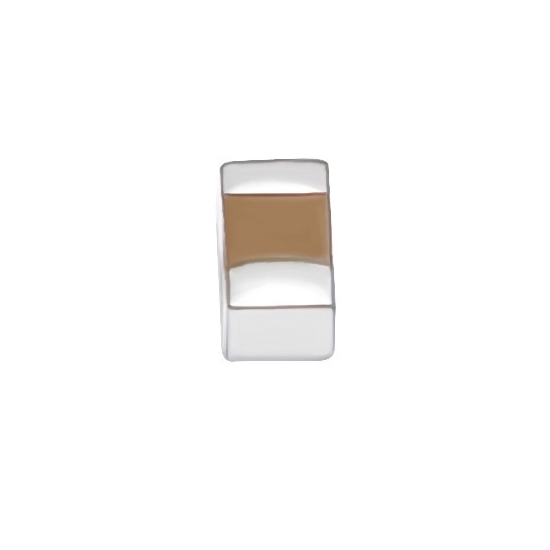

    10μF 100V Multilayer Ceramic Chip Capacitor

    $23.49
    Low price SMD multilayer ceramic chip capacitor for sale, 10μF (10000000pF, 10000nF) capacitance, rated voltage 100V, 20% tolerance, 1000PCS per roll. This MLCC surface mount capacitor is widely used for household appliances, operating temperature range from -40℃ to 105℃.
    SKU: ATO-MLCC-100V106K
    This product has a minimum quantity of 10
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Multilayer ceramic chip capacitor is stable and has high capacitance. Laminated monolithic structure, excellent solderability and solder resistance, MLCC capacitors are suitable for reflow and wave soldering, various filtering and coupling circuits.

    Specification

    • Model: ATO-100V106K1210
    • Series: Multilayer Ceramic Chip Capacitor
    • Capacitance: 10μF (10000000pF, 10000nF)
    • Rated voltage: 100V
    • Tolerance: 20%
    • Operating Temperature Range: -40℃ - 105℃
    • Lead Type: SMD
    • Size: 3.2mm
    • Thickness: 2.5mm
    • Package: 1000PCS / roll
    • Application: Household Appliances
    • Medium Material: Ceramic (Porcelain)
    • Loss: 0.01%
    • Weight: 0.3kg

    Structure

    Structure of MLCC multilayer ceramic capacitor

    Structure of multilayer ceramic chip capacitor

    Tips:

    High voltage chip capacitors, also known as ceramic multilayer chip capacitors, are a kind of production technology using ceramic powder, the interior is precious metal palladium, and silver is plated on ceramics as electrodes by high-temperature sintering. The products are divided into high frequency porcelain NPO (COG) and low frequency porcelain X7R. NPO has a small package size, high temperature coefficient capacitors, and good high-frequency performance. It is used in high-stability oscillation circuits as circuit filter capacitors. X7R ceramic capacitors are limited to bypassing or blocking DC in circuits with ordinary frequencies, or where stability and loss are not required. Such capacitors should not be used in alternating current (AC) pulse circuits, because they are easy to be used by Pulse voltage breakdown, so it is not recommended for use in AC circuits.
