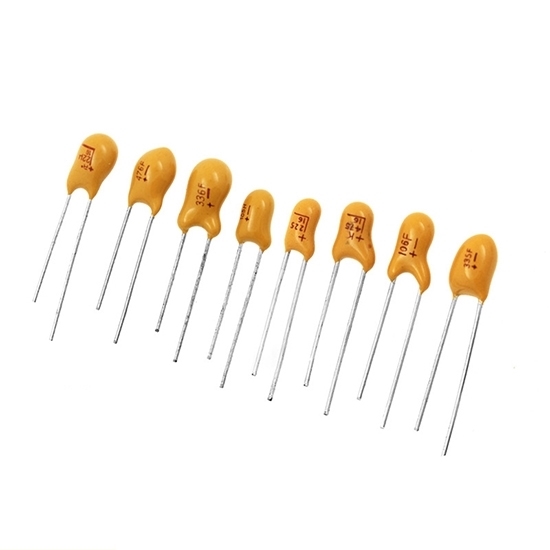

    10μF 16V Tantalum Capacitor

    $1.57
    Lower cost 10μF tantalum capacitor for sale online. ATO offers 16V voltage of this type tantalum capacitor. DIP tantalum capacitor and SMD tantalum capacitor can be chosen. 1 mm 10μF 16V tantalum capacitor is suitable for a variety of scenarios, such as industrial equipment and video equipment.
    SKU: ATO-TC-10UF16V
    *
    This product has a minimum quantity of 100
    Free Shipping Worldwide
    Delivery date: 10-12 days

    High quality 10μF tantalum capacitor with 16V voltage. Working temperatures of 106C tantalum capacitor range from -40 ℃ to 125 ℃. Tantalum capacitor applies in mobile phone, printer and electric tool.

    Features:

    • Small volume and small capacity error
    • Wide temperature range, high temperature resistance
    • Long life, high insulation resistance, small leakage current
    • Equivalent series resistance (ESR) has good high frequency performance

    Specification:

    Model ATO-TC-10UF16V
    Nominal Capacity 10μF, 16V
    Type DIP SMD
    Equivalent Series Resistance 1
    Net Size 1 mm 2.2 mm
    Tolerance 10%
    Height Mounting (Maximum) 1 mm 1 mm
    Leading Spacing 2.54 mm Leadless
    Working Temperature -40 ℃— +125 ℃ -85 ℃— +125 ℃


    DIP Tantalum Capacitor Dimension: (Unit: mm)

    DIP tantalum capacitor dimension

    SMD Tantalum Capacitor Dimension: (Unit: mm)

    C: L= 6.0, S= 1.3, W1= 3.2, W2= 2.2, H= 2.5

    SMD tantalum capacitor dimension

    Tips: Tantalum Capacitor Marking

    • Tantalum capacitors are innately polarized capacitors with positive and negative lead and are appropriate with DC supplies. The polarity and markings on the capacitors make it easy to identify the anode and cathode.
    • Two bands and a positive sign helps in identifying the value of capacitance and maximum working voltage.
    • The top most value to the left reveals the capacitance value in microfarads (μF).
    • The voltage below the capacitance value is the maximum working voltage of a capacitor, i.e, 25V.
    • A positive (+) sign is noticed below the long band. The combination of a long band and a "+" sign indicates that this side has a positive lead / anode, while the other side indicates a negative lead / cathode. The reverse voltage or wrong connection could damage the capacitor.
