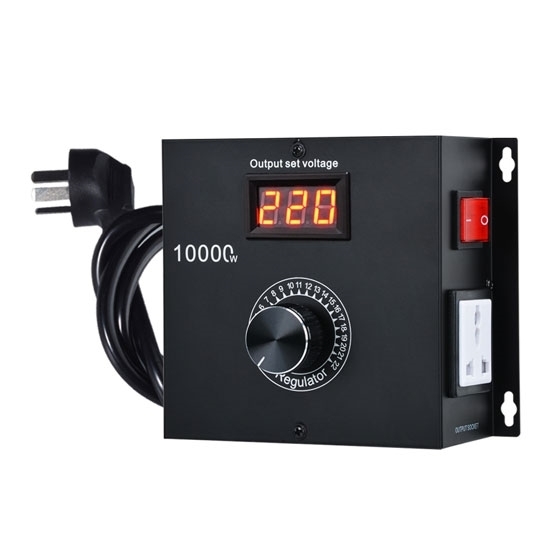

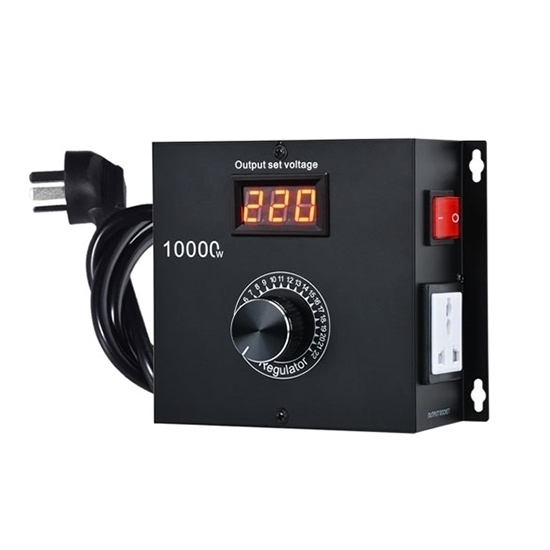

10000W SCR Voltage Regulator, AC 110V/220V

Overview

Note: Not suitable for air pumps, motors, induction cookers, LED bulbs, LED screens, or other overload-sensitive and electronic control devices.

Designed for workshops, DIY projects, and industrial heating applications, ATO SCR voltage regulator is ideal for controlling heating wires, lamps, soldering tools, and ventilation equipment. Featuring smooth rotary adjustment, universal socket compatibility, and durable metal construction, it provides reliable and efficient AC power control for household and industrial use.

Specification

Model	ATO-DXT-10000W
Input Voltage	AC 110 V / 220 V
Output Voltage	AC 10–110 V / 10–220 V Adjustable
Maximum Load	10000 W (Suitable for 4000–4500 W Resistive Load)
Continuous Load	4000–4500 W (Resistive Load), 3500 W (Inductive Load)
Voltage Adjustment Range	AC 10–110 V / 10–220 V
Rated Current	22 A
Maximum Current	44 A
Weight	670 g

Feature

Wide AC Voltage Adjustment: 10000W SCR voltage regulator supports smooth AC voltage control for stable and precise power adjustment.
Suitable for Multiple Loads: Compatible with resistive and inductive loads, widely used for electric furnaces, heating equipment, and fan speed control.
Fast Response & Stable Performance: SCR voltage regulator features high sensitivity, low power loss, and quick speed regulation response.
Durable Metal Housing: Metal shell with ventilation holes provides efficient heat dissipation, anti-oxidation, and rust resistance.
Easy Installation & Operation: Compact electronic speed controller design with simple wiring for convenient industrial and commercial applications.
Multiple Plug Options Available: 10000W voltage regulator supports five standard plug types to meet different regional power connection requirements.

Detail

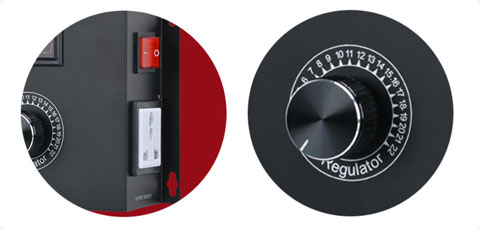

10000W voltage regulator detail

Convenient Power Switch & Socket Design: Equipped with an integrated rocker ON/OFF switch and universal AC output socket, the 10000W SCR voltage regulator offers safer operation and easy connection for various electrical devices, making it ideal for industrial and household voltage control applications.
Precision Voltage Adjustment Knob: Designed with a large rotary control knob and clear voltage scale markings, this SCR voltage regulator allows smooth and accurate output voltage adjustment for stable control of heaters, lamps, and other AC loads.

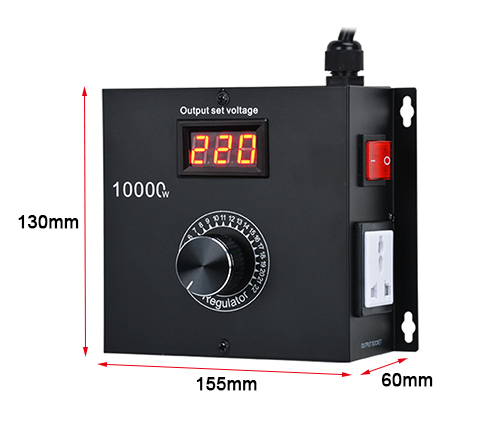

Size (unit: mm)

10000W voltage regulator size

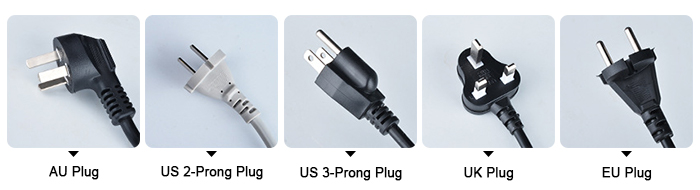

Plug Options

10000W voltage regulator plug

Application

The 10000W SCR voltage regulator is widely used for precise voltage regulation, temperature control, and motor speed adjustment in a variety of AC power applications. It is compatible with electric kettles, heaters, grinding machines, small cooling fans, induced draft fans, and pipeline ventilation fans. Featuring stable output performance and smooth voltage adjustment, this high power SCR regulator helps improve operating efficiency, reduce energy consumption, and extend the service life of electrical equipment in industrial, commercial, and household environments.

10000W voltage regulator application

Tips: Will the regulator generate heat during use voltage regulator?

Yes, it is normal for the SCR voltage regulator to generate heat during operation, especially when controlling high-power loads or running continuously for long periods. To ensure stable performance and extend the service life of the regulator, please keep the unit in a well-ventilated area, avoid blocking the cooling vents, and do not install it near flammable or heat-sensitive materials. For high-load applications, additional cooling or airflow is recommended.
