    3 Phase 3-Wire SCR Power Regulator

    $158.46
    The SCR power regulator price is favorable, rated current can select 25/40/75/90A, rated voltage is 380VAC, 3 phase 3-wire. Control signals have 3 types for selection or 3 types to switch. Power controller comes with protection function, good quality, safe and reliable.
    SKU: ATO-PRG-3320
    *
    *
    *

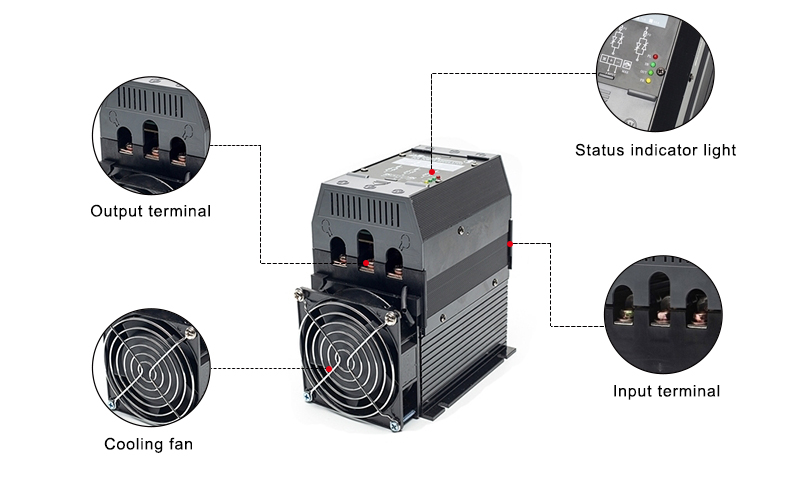

    Features

    • Linear phase shift control circuit control circuit, good stability and high accuracy. Modular, high pressure resistant, anti-interference.
    • Protection method is built-in fast fuse.
    • Adopts vacuum welding technology, optimized heat dissipation, good quality, long service life, safety and reliability.
    • With multi-function LED to indicate working status.

    Specification

    Model ATO-PRG-AY ATO-PRG-J3
    Rated Voltage 3 Phase 380VAC 3 Phase 380VAC
    Wires 3 Phase 3-Wire 3 Phase 3-Wire
    Rated Current 25A 40A 75A 90A
    Load Y connection method (220V AC) 8kW 13kW 23kW 30kW
    ▲ connection method (380V AC) 14kW 22kW 40kW 50kW
    Auxiliary Power - 220VAC
    Control Signal 4-20mA, 0-5VDC, 0-10VDC 4-20mA, 0-5VDC, 0-10VDC
    (3 ways can switch)
    Protection Function fast fuse
    Certification CE
    Operation Frequency 50Hz/60Hz
    Output Mode phase output
    Use Environment temperature<45℃
    humidity<90%RH

    Star (Y) Type Wiring Diagram of 3 Phase 3-Wire SCR Power Regulator

    Star Type Wiring Diagram of 3 Phase 3-Wire SCR Power Regulator

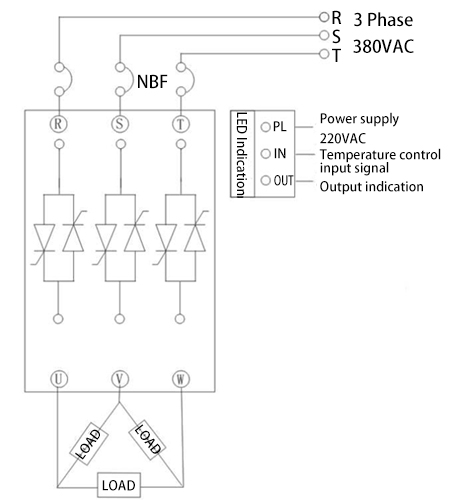

    Triangle Wiring Diagram of 3 Phase 3-Wire SCR Power Regulator

    Triangle Wiring Diagram of 3 Phase 3-Wire SCR Power Regulator



    Phase Output of 3 Phase 3-Wire SCR Power Regulator

    Precautions

    1. Main circuit uses 3-phase 3-wire input, no phase sequence is required.
    2. SCR is high current product, please be sure to lock the (R.S.T) and (U.V.W) terminals, otherwise the terminals will heat up and the SCR will burn out.
    3. SCR has a built-in fast fuse for over current and short circuit protection. If the fuse is blown due to overcurrent, first check the load for faults such as short circuit and partial discharge. After troubleshooting, open the panel and replace it. Be sure to replace it with fuse of the same specification. Be careful not to increase amperage of the fuse at will.
    4. When using the load Y type wiring method, center point cannot be connected to zero line, otherwise the SCR will lose control. If 3-phase load is unbalanced, center point must be connected to zero line.

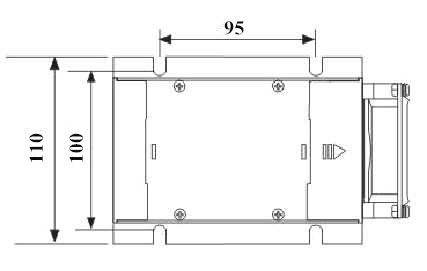

    Model ATO-PRG-AY Dimension Drawing

    Model ATO-PRG-AY Dimension Drawing

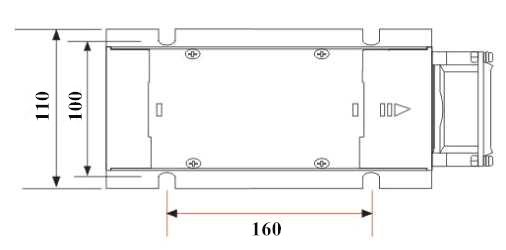

    Model ATO-PRG-J3 Dimension Drawing

    Model ATO-PRG-J3 Dimension Drawing

    Dimension Chart

    Model Outline Dimension (mm) Installation Dimension (mm)
    L W H L W
    ATO-PRG-AY 165 110 165 95 100
    ATO-PRG-J3 230 110 165 160 100
