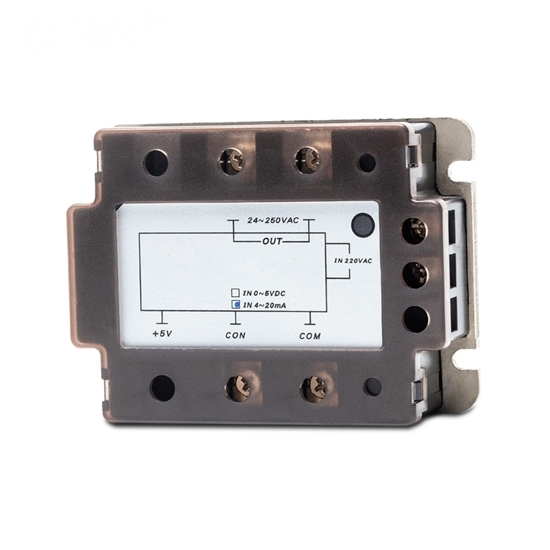

    SCR AC Voltage Regulator Module

    5 out of 5 based on 2 reviews | Write a review
    $81.23
    Voltage regulator module (vrm) is single phase AC SCR module with analog output. Models can select single-phase active, enhanced, high-voltage enhanced, and stabilivolt. Control mode is DC 0-5V or 4-20mA for selection. Load current is 15A/25A/40A/75A/90A/120A, meets various electric needs.
    SKU: ATO-VRGM-20
    *
    *
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Features

    • Internal feedback circuit has good linearity and voltage stability, high voltage resistance, high current resistance, and high temperature resistance.
    • Completely isolate weak and strong currents to ensure safe operation and control.
    • Widely used in chemical, food, machinery, packaging, textile equipment, CNC machine tools, entertainment facilities and other automatic control fields.

    Specification

    Model ATO-SCR-LA
    Module Type single-phase active enhanced high voltage enhanced stabilivolt
    Load Current 15A, 25A, 40A, 75A, 90A 25A, 40A, 75A, 90A, 120A 25A, 40A, 75A, 90A, 120A 25A, 40A, 75A, 90A, 120A
    Load Voltage 175-265VAC 175-265VAC 305-456VAC 175-265VAC
    Ambient Temperature -20℃~+70℃ -20℃~+75℃ -20℃~+75℃ -20℃~+75℃
    Control Mode 0-5VDC, 4-20mA
    On Voltage ≤2V
    Off Leakage Current ≤10mA
    On-off Time ≤10mS
    Dielectric Strength 2000VAC
    Certification CE
    Insulation Resistance 500MΩ/500VDC
    Mounting Method Bolted
    Work Instruction LED

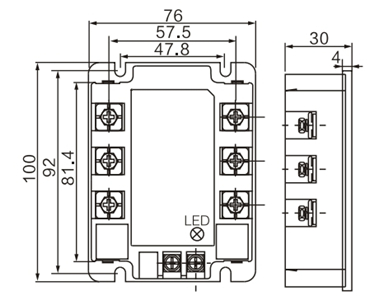

    Dimension Drawing (uint: mm)

    Single-Phase Active Type Enhanced Type

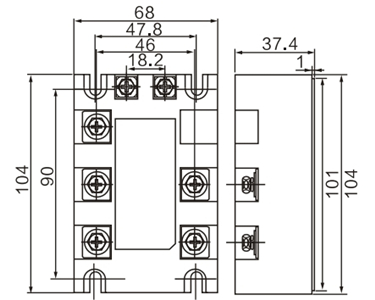

    Dimension Drawing of Voltage Regulator Module Single Phase Active Type Dimension Drawing of Voltage Regulator Module Enhanced Type
    High Voltage Enhanced Type Stabilivolt Type

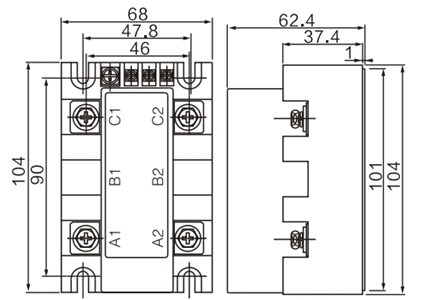

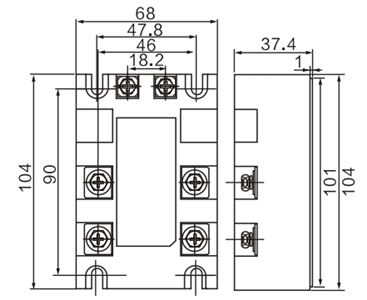

    Dimension Drawing of Voltage Regulator Module High Pressure Enhanced Type Dimension Drawing of Voltage Regulator Module Stabilivolt Type

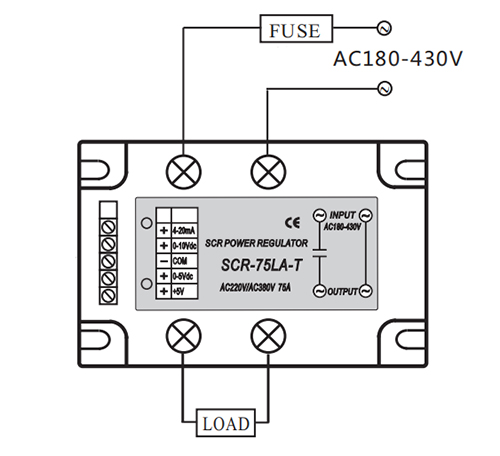

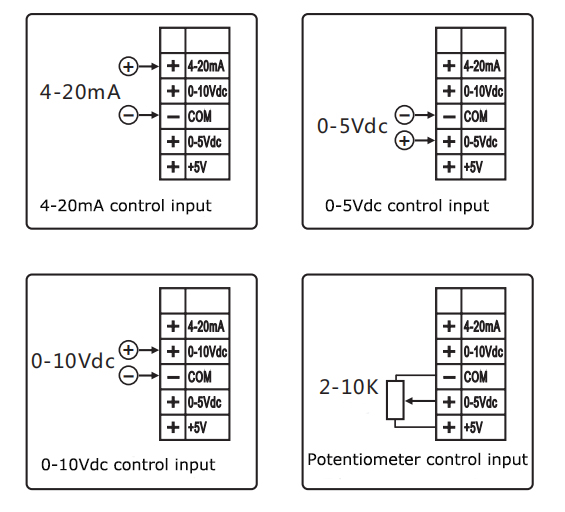

    Wiring Diagram

    Single-Phase Active Type Enhanced Type

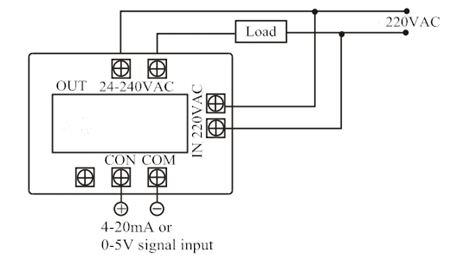

    Wiring Diagram of Voltage Regulator Module Single Phase Active Wiring Diagram of Voltage Regulator Module Enhanced
    High Voltage Enhanced Type Stabilivolt Type

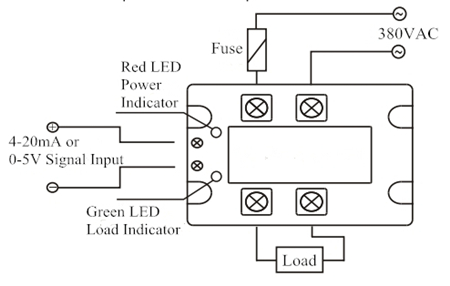

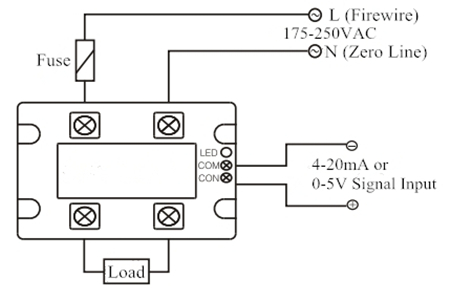

    Wiring Diagram of Voltage Regulator Module High Pressure Enhanced Wiring Diagram of Voltage Regulator Module Stabilivolt

    Tips: Notes when using SCR AC regulator modules.

    1. When wiring, be careful not to confuse the live (L) and neutral (N) wires in main circuit. Grid voltage cannot be lower than the lower limit of load voltage, otherwise the SCR regulator module cannot operate normally.
    2. Resistive load must not exceed 60% of the regulator module rated current. Inductive or capacitive load cannot exceed 40% of the rated current. Motor load must not exceed 20% of the rated current.
    3. Overcurrent and short circuit are the main causes of permanent damage to the thyristor. Therefore, pay attention to the overcurrent protection for SCR voltage regulator module. Current protection can be performed using fast-acting fuses or air switches.
    4. When using the SCR voltage regulator module, corresponding heat sink should be equipped. When the load radiation conditions are not good, compensation should be increased, and short-circuit loads are not allowed.
