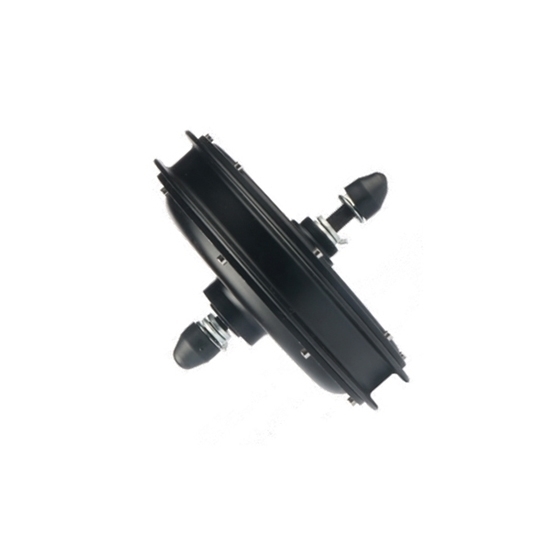

    1000W Gearless Hub Motor, 36V/ 48V/ 60V/ 72V, 95 N.m

    $332.89
    Lower cost 1000W gearless hub motor has four voltages to select: 36V/ 48V/ 60V/ 72V. It can run about 25-42 km/ h. The maximum torque is 55 N.m, the wheel diameter is 20-28 inch. It is designed to install in the rear of the ebike wheel.
    SKU: ATO-GHM1000
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Buy best-selling brushless in wheel motor for your ebike. Rated voltage from 36V to 72V are provided. Gearless design, IP 65, 135mm dropout, 82% working efficiency.

    Specification

    Model ATO-205-35H2
    Motor type Brushless motor
    Rated power 1000W
    Rated voltage 36V/ 48V/ 60V/ 72V (optional)
    Max torque 45-55 N.m
    Reduction ratio /
    Installation position Rear
    Motor structure Gearless
    Wheel diameter 20-28 inch
    Rated speed 25-42 km/ h
    Spoke specification 36H*10g/ 12g/ 13g
    Dropout 135mm
    Brake type V/ Disc brake
    Operation temperature -20℃ - 45℃
    Efficiency ≥82%
    Color Black
    Cabling route Shaft center right/ left
    Noise grade ≤55 dB
    IP grade IP65
    Salt spray test standard 24/ 96 h
    Drive and freewheel 9s
    Weight 6kg

    Dimention (Unit: mm)

    ATO 1000W gearless hub motor dimension

    Tips: How to maintain the 1kw gearless hub motor?

    As the name suggests, the hub motor is a new type of drive technology that installs the motor on the wheel. Its biggest feature is that the power, transmission and braking devices are integrated into the wheel hub, thus greatly simplifying the mechanical part of the electric vehicle. Due to the harsh working environment of the in-wheel motor, it faces many aspects such as water and dust. It also has higher requirements in terms of sealing. At the same time, the design of the 1000W in wheel hub motor also needs to consider the heat dissipation problem separately. Therefore, ATO recommends that the focus of the maintenance of the hub motor is to achieve timely heat dissipation, and also to pay attention to the hygiene problems in harsh environments to ensure that its sealing is intact.
