100KV Brushless Motor for Drone, 12S

5 out of 5 based on 2 reviews | Write a review

$391.04

Buy a high-efficiency and stable 100KV brushless motor for drone. BLDC motor speed control is useful for heavy lift drone position and speed control. Cheap 12S brushless drone motor with a 30-inch propeller can make your drone fly in the air.

SKU: ATO-BDM-100

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Low cost heavy lift drone motor for sale online. 100KV brushless motor should be attached to the 30-inch propeller, spin it and generate the thrust that your multi-rotor drone can fly. The 12S drone motor supports multi-rotor aircraft, suitable for various working environments.

Specifications

Model: ATO-EOLO-8114
Motor KV: 100
Number of Stator Slots: 36
Number Of Rotor Poles: 42
Motor Internal Resistance: 70mΩ
Motor Size: φ88.6*35.0mm

Shaft Diameter: 12mm
Stator Outer Diameter: 81mm
Stator Thickness: 14mm
Motor Silicone Wire: 20AWG 100mm
Weight (Including Wire): 430g
Rated Voltage (Lipo): 12S

No-Load Current: 0.8A/10V
Max Continuous Power: 2400W
Max Continuous Current: 50A/30s
Recommended ESC: 40A
Recommended Propeller: C30*10
Recommended Take-off Weight of Single Axis: ≤4500g

Features

High-efficiency 100KV brushless motor is designed for multi-rotor drones.
The brushless drone motor adopts an IP54 motor structure to prevent dust and rain.
It has manual winding, the ultimate full slots rate, and a new optimized magnetic circuit to make the power more potent.

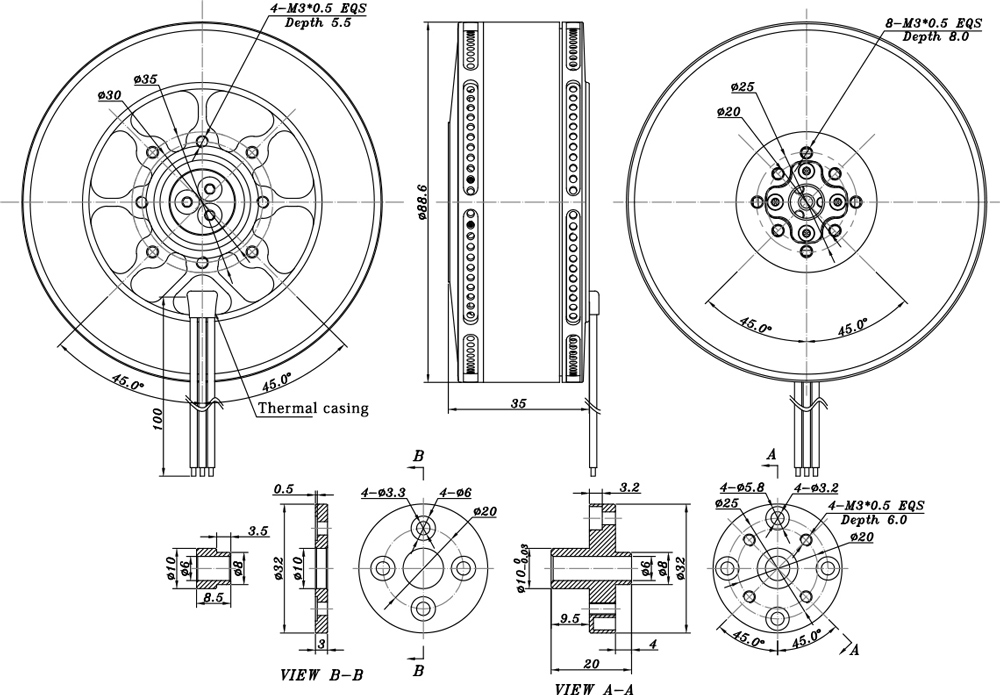

Dimensions (Unit: mm)

100KV brushless motor dimension

Tips: Does higher KV mean faster speed?

KV describes the RPM (revolutions per minute) a brushless motor does per Volt that is put into it. Generally speaking, the more KV a motor has, the more RPM and more power. For example, a 9000KV brushless motor would be faster than a 2200KV motor. If KV is like horsepower, then Turns are the physical attribute of a motor.
