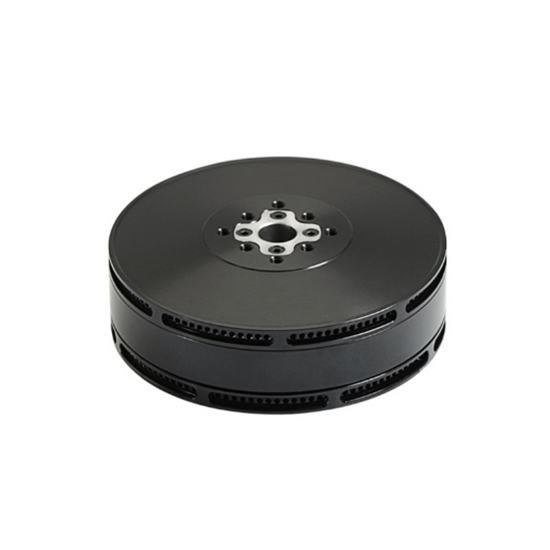

170KV Brushless Motor for Drone, 6S/12S

4.6 out of 5 based on 3 reviews | Write a review

$322.38

Get a 170KV brushless motor for multirotor drone. 90KV/110KV/135KV heavy lift drone motors are available online. 12S/6S Brushless drone motor works with a 26~29 inch propeller that can make your drone fly. Quadcopter motors are suitable for various working environments.

Speed *

SKU: ATO-BDM-170

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Cheap heavy lift drone motor features 90KV, 110KV, 135KV and 170KV. 6S/12S brushless motor is suitable for heavy lift drone position and speed control. Small drone motor works with 26/28/29 inch propellers that can generate upward thrust to make your drone fly.

Specifications

Model	ATO-EOLO-7208
Motor KV	90	110	135	170
Number of Stator Slots	36	36	36	36
Number of Rotor Poles	42	42	42	42
Motor Size	φ79.0*27.0mm	φ79.0*27.0mm	φ79.0*27.0mm	φ79.0*27.0mm
Shaft Diameter	12.0mm	12.0mm	12.0mm	12.0mm
Motor Silicone Wire	20AWG 100mm	20AWG 100mm	20AWG 100mm	20AWG 100mm
Phase-to-Phase Internal Resistance	253mΩ	173mΩ	125mΩ	76mΩ
Motor Weight (Including Wires)	236g	240g	237g	240g
Rated Voltage (Lipo)	12S	12S	6S	6S
No-Load Current	0.4A/10V	0.5A/10V	0.6A/10V	0.8A/10V
Maximum Continuous Power	1150W	1500W	750W	950W
Maximum Continuous Current	23A/30s	30A/30s	30A/30s	38A/30s
Recommended ESC	40A	40A	50A	50A
Recommended Propeller	CN268/CN289.5/C289.5/CL289.5	CN268/CN289.5/C28*9.5	C289.5/CN289.5	C289.5/CL289.5/CN28*9.5

Features

High-efficiency 90KV/110KV/135KV/170KV brushless motor is designed for multi-rotor drones.
The brushless drone motor adopts an IP54 motor structure to prevent dust and rain.
It has manual winding, the ultimate full slots rate, and a new optimized magnetic circuit to make the power more potent.

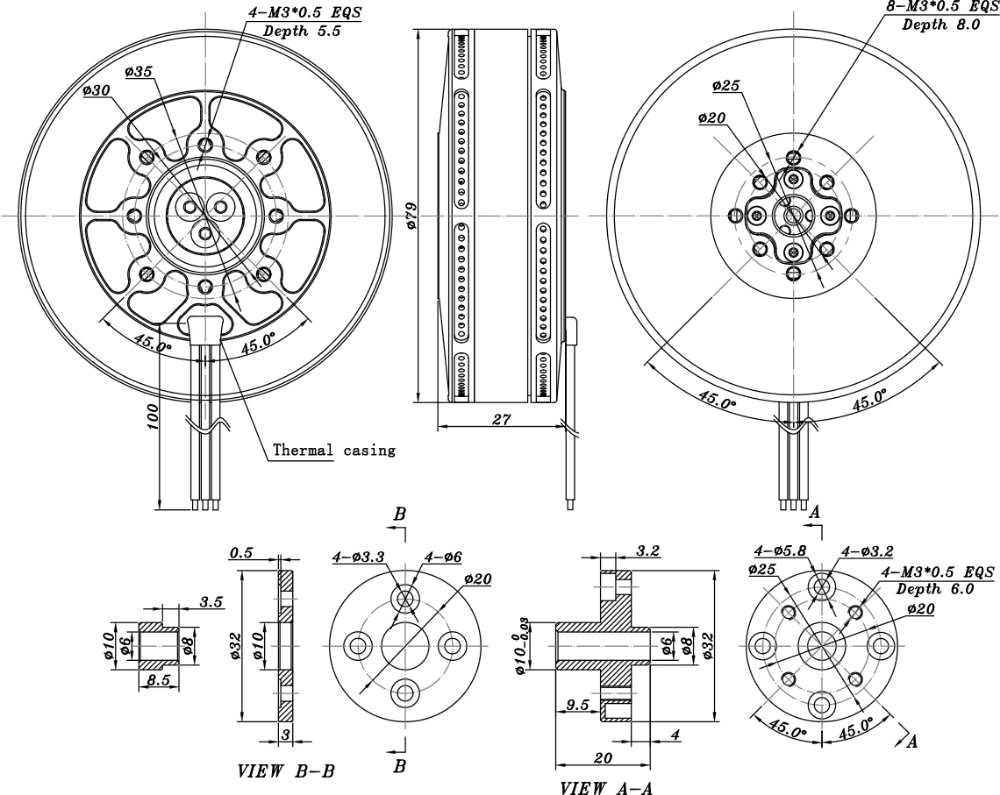

Dimensions (Unit: mm)

170KV brushless motor dimension

Tips: Which motor is suitable for drones?

Generally, brushed motors are used for the smallest drones, while larger drones and UAVs will use brushless motors because they can carry the extra weight of additional electronics. Brushless drone motors also require an electronic speed controller (ESC) to operate.

VFD Two-Wire Control Wiring with Push Button for Forward Motor

In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

Existing reviews of 170KV Brushless Motor for Drone, 6S/12S

Please give me some advice

I am going to use it on a test bench as a drive motor. Couple hours at a time, but if necessary I could have it off for 5 minutes every so often, or add fan cooling if necessary. Once for a few hours. Just dust is fine. Do you have any suggestions?

From: Alden | Date: 27/09/2024

Was this review helpful? Yes No (0/0)

ATO Responded

If the motor runs continuously for several hours at a high speed, it will heat up seriously. We do Not recommend using it this way. But if you are sure that the motor installation environment can be equipped with a cooling fan, you can also buy one to try.

I am looking at a 100 KV motor

I am looking at a 100 KV motor to use for the shell eco marathon do you have any data on its torque/rpm curves?

From: Carter | Date: 27/11/2023

Was this review helpful? Yes No (0/0)

ATO Responded

Unfortunately, we can only provide the speed 110KV version, we do not provide the 100KV version, Nor can we provide torque/rpm curves.

Outstanding quality

This 170KV drone brushless motor is an exceptional product. I bought the 6S/12S version and the performance is amazing. First of all, its power output is strong, allowing my vehicle to lift a variety of loads with ease. Its efficient design also ensures excellent battery life, making my tasks smoother. In addition, the motor runs smoothly and makes extremely low noise, making the flying experience even more enjoyable.

From: Jennifer Taylor | Date: 18/09/2023

Was this review helpful? Yes No (0/0)

Load more reviews...
