250KV Brushless Motor for Drone, 6S/12S

5 out of 5 based on 1 reviews | Write a review

$241.49

Reasonable price brushless drone motor is provided with 125KV and 250KV speeds. It is a quadcopter motor that connects with 20/22/24 inch propellers to make a drone fly. 6S/12S BLDC motor is designed for multi-rotor drones, suitable for various working environments.

Speed *

SKU: ATO-BDM-250

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

150KV/250KV brushless motor is a quadcopter motor that connects with 20/22/24 inch propellers to make a drone fly. It is perfect for heavy lift drone position and speed control. 6S/12S brushless drone motor has lightweight, high efficiency, wide speed range and strong torque capability.

Specifications

Model	ATO-EOLO-6210
Motor KV	125	250
Number of Stator Slots	24	24
Number of Rotor Poles	22	22
Motor Size	φ69.3*35.5mm	φ69.3*35.5mm
Shaft Diameter	4.0mm	4.0mm
Motor Silicone Wire	20AWG 100mm	20AWG 100mm
Phase-to-Phase Internal Resistance	44mΩ	44mΩ
Motor Weight (Including Wires)	243g	251g
Rated Voltage (Lipo)	12S	6S
No-Load Current	0.4A/10V	0.7A/10V
Maximum Continuous Power	1500W	1080W
Maximum Continuous Current	30A/30s	45A/30s
Recommended ESC	40A	40A
Recommended Propeller	C206.2/CN226.5/C24*7.5	C206.2/CN226.5/C24*7.5
Maximum Continuous Current	30A/30s	45A/30s
Recommended ESC	40A	40A
Recommended Propeller	C206.2/CN226.5/C24*7.5	C206.2/CN226.5/C24*7.5

Features

High-efficiency 150KV/250KV brushless motor is designed for multi-rotor drones.
The brushless drone motor adopts an IP54 motor structure to prevent dust and rain.
It has manual winding, the ultimate full slots rate, and a new optimized magnetic circuit to make the power more potent.

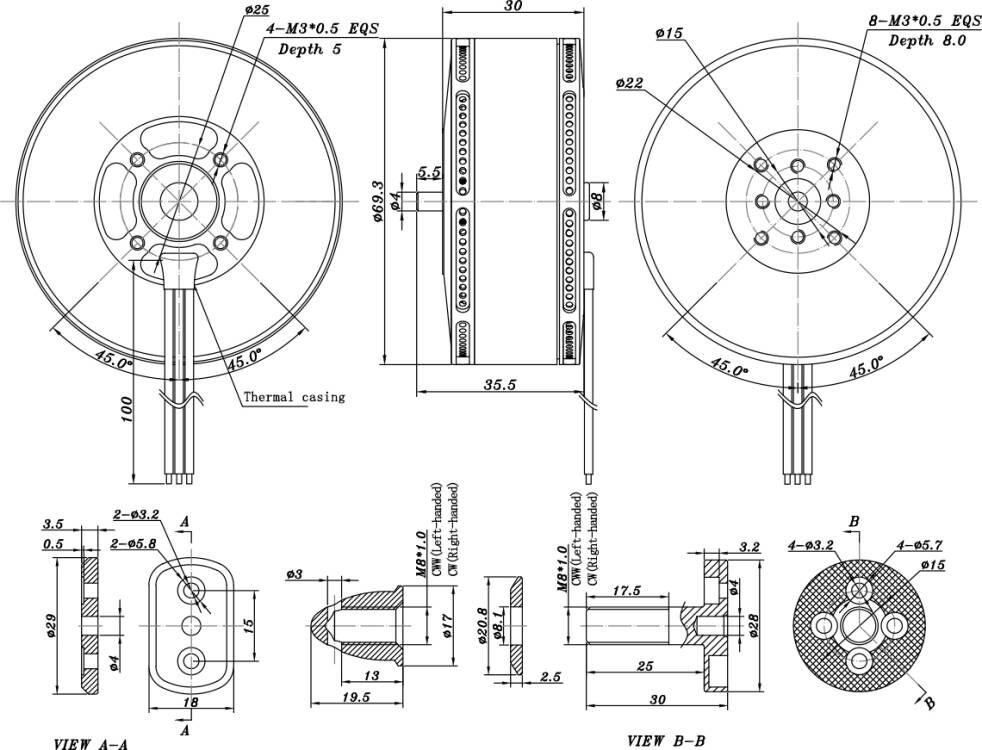

Dimensions (Unit: mm)

250KV brushless motor dimension

Tips: How long do brushless drone motors last?

Brushed drone motors will last from 1,000 to 3,000 hours. Brushless motors will last up to 10,000 hours of flight time before they start to have problems. The life span of a drone motor is related to the load the motor is used under and the environment it is operating in.

VFD Two-Wire Control Wiring with Push Button for Forward Motor

In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

Existing reviews of 250KV Brushless Motor for Drone, 6S/12S

This brushless motor exceeded my expectations

I bought this brushless motor for a multi-rotor drone used in aerial photography, and it exceeded my expectations. The thrust is powerful enough to handle a heavy camera payload, yet it stays cool even after long flights. The build quality feels very durable, and installation was straightforward. Perfect for professional or hobby projects that require reliable performance.

From: Clara | Date: 22/09/2025

Was this review helpful? Yes No (0/0)

Load more reviews...

Write your review for 250KV Brushless Motor for Drone, 6S/12S
