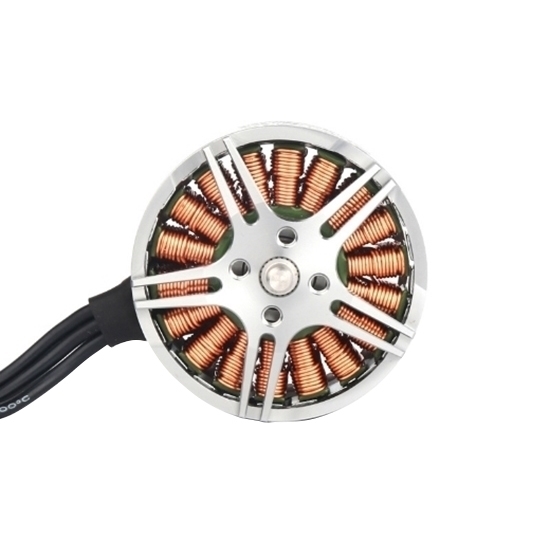

330KV Brushless Motor for Drone, 4S/6S

4 out of 5 based on 1 reviews | Write a review

$154.35

Whoseslae price brushless motors for multirotor drones with rotating speeds at 330KV or 600KV. 4S/ 6S brushless drone motor works with a maximum continuous power of 500W/ 480W. Small brushless motor has the characteristics of high efficiency, stable structure, lightweight and high consistency.

Speed *

SKU: ATO-BDM-330

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Factory price 4~6S brushless motor for a rotary-wing drone with a propeller, shaft diameter 4 mm, 330KV/ 600KV speed, good insulation and heat resistance, widely used in RC aircraft and drones.

Specifications

Model	ATO-V4008
Motor KV	330	600
Number of Stator Slots	18	18
Number of Rotor Poles	24	24
Motor Size	φ44.3*28.5mm	φ44.3*28.5mm
Shaft Diameter	4.0 mm	4.0 mm
Motor Silicone Wire	20AWG 600mm	20AWG 600mm
Phase-to-Phase Internal Resistance	131mΩ	75mΩ
Motor Weight (Including Wires)	105g	104g
Rated Voltage (Lipo)	4-6S	4S
No-Load Current	0.5A/10V	0.8A/10V
Maximum Continuous Power	500W	480W
Maximum Continuous Current	20A/30s	30A/30s
Recommended ESC	30-40A	40A
Recommended Propeller	CN125/CN135/C155.5/CN176.2	CN135/CN155.5

Features

330KV/600KV brushless motor is designed for long-flight time multi-rotors. These motors can produce enough torque at low RPM and work at peak efficiency during flight.
With the guarantee of strength, the caps of brushless motors are highly hollow-cutted to save weight, so these motors can reach the maximum thrust-to-weight ratio and gain more flight time.
The brushless drone motor series uses a patented Stepped and knurled design that not only efficiently prevents motors from getting loose, but also reduces the probability of malfunction and unstable output power.

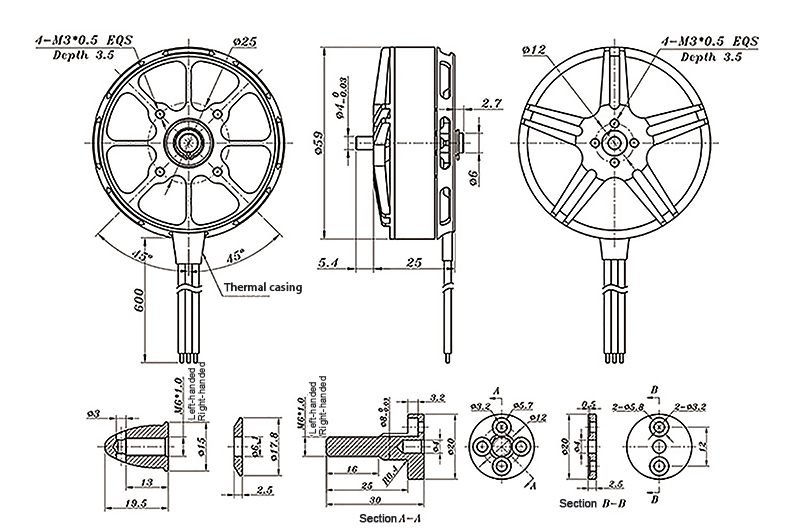

Dimensions (Unit: mm)

330KV brushless motor dimension

Tips: Why do drones use a 330KV brushless drone motor?

Drones use 330KV brushless DC motors because they produce higher torque for the same weight compared to brushed motors. Or the thrust-to-weight ratio is more like a brushless motor than a brushed motor.
