    15:1 Air Pressure Booster, 5-120 bar (72-1740 psi)

    $4,056.76
    ATO air pressure booster with 15:1 ratio, 5- 120 bar inlet pressure, 80 maximum outlet pressure. The driven air pressure is between 2 bar and 8 bar, the maximum driven air pressure is 10 bar. Air driven boosters are an efficient alternative instead of electrically driven products and can beused in explosion proof areas.
    SKU: ATO-APB-15:1
    Free Shipping Worldwide
    Delivery date: 10-20 days

    10: 1 Air pressure booster, 5-120 bar (72- 1740 psi) with 410 L/ min maximum flow at driven air pressure of 40 bar, 160mm drive piston diameterl. ATO air driven gas boosters provide for pressures up to 80 Mpa. Used for oil freecompression not only of air or Nitrogen, but also flammable and risk gases like hydrogen, oxygeand natural gas.

    Specification:

    Model ATO-DGD-15
    Pressure boost ratio 15:1
    Min. gas Inlet pressure PA 5 bar
    Max.gas Inlet pressure PA 120 bar
    Max. gas outlet pressure PB 120 bar
     Drive piston diameter 160mm
    Driven air pressure PL 2 bar- 8 bar
    Max. driving air pressure 10 bar
    Formula to calculate gas outlet pressure PB 15XPL+ PA
    Connection: Gas Inlet / Gas outlet (NPT thread) 3/ 8/ 3/8
    Max. flow at driven air pressure of 6 bar 350 L/min (at PA of + 6bar)
    Weight 25kg

    Applications:

    • ATO 15: 1 air pressure booster is widly used by pressure test with gas/air gas transfer and filling (Air/ Argon/ Helium/ Hydrogen/ Oxygen/ Nitrogen/ CO22/ CH4/ LNG/ LPG/ CNG/ FM200 etc. )
    • Charging of gas cylinder and accumulator with nitrogen. Nitrogen gas spring charging. Supply for isolating gas systems gas assisted injection molding transfer of oxygen cylinders charging of breathing air bottles leak test.
    • Hydrostatic testing for valves, tanks, pressure vessels, pressure switches, hoses, pipes and tubing, pressure gauges, cylinders, transducers, well casings, bops, gas bottles and air craft components safety valve adjusting.

    Application of air pressure booster1

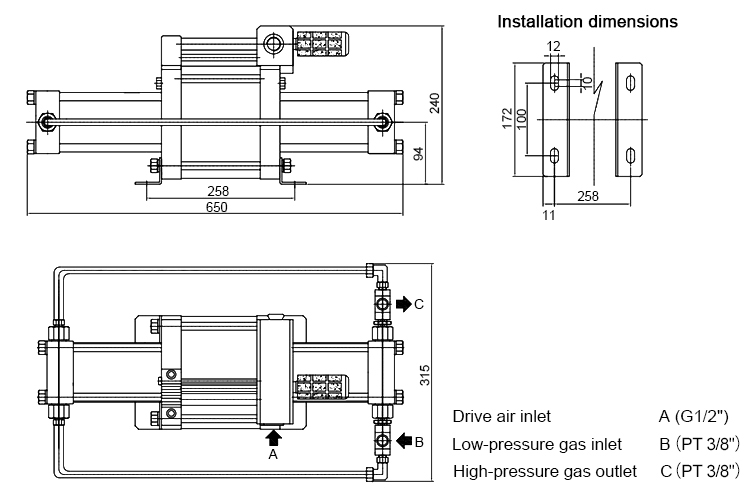

    Dimensions (Unit: mm)

    1Dimension of air pressure booster

    2Dimension of air pressure booster

    Dimension of air pressure booster3

    Tips: What place is suitable for 15: 1 Air Pressure Booster?

    1. Power of steel connector.
    2. Performance test and calibration of static and dynamic test instruments and instruments for aerospace accessories.
    3. Water injection from high pressure cleaning and water cutting equipment to transport fluid in dangerous areas.
    4. Clamping power of lubricating system oil filling valve of mechanical equipment.
    5. Press in the sleeve liner and press out the power control ground safety valve and underground safety valve.
