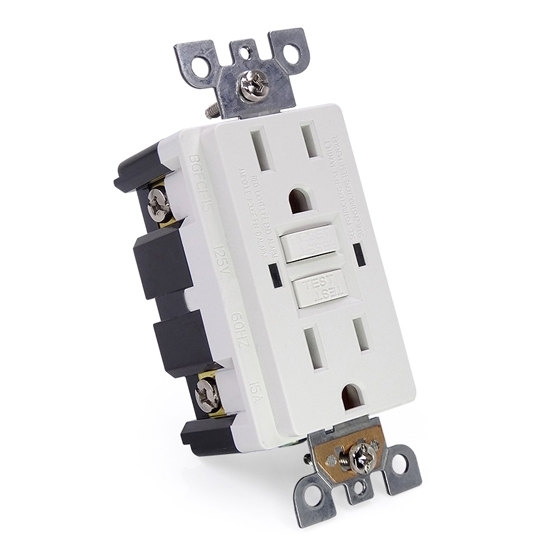

15 amp GFCI Outlet, Electrical Receptacle

ATO ground fault circuit interrupter (GFCI) outlet is built to meet every need in commercial, industrial, household, institutional settings. This GFI socket has safe lock function, the reset button will not engage if protection has been compromised. The LED indicator light on our electrical receptacle gives a quick notification of a tripped or "end of life" condition.

Specification

• Model: ATO-BGFCI-15
• Rated Working Current: 15 amp
• Rated Working Voltage: 125V
• Power Frequency: 60Hz
• Tripping Threshold: 5mA
• Tripping Time: ＜25ms
• Surge Current: 6000V/ 3000A, 6000V/ 10kA
• Electric Strength: Pressure Resistance 1500V 50Hz
• Duration: 1 Min
• Working Temperature: -35℃ ~ 66℃
• Insulation Resistance: ＞50MΩ (DC500V)
• Short-Circuit Current: 10kA
• Meet the Standard: UL498CSA-C22.2 NO.42, Housing Material Flame Retardant Grades UL94-V2

Indicator: 2 LED Trip Indicators (Red & Green)

• Red: The GFCI receptacle needs to be noticed. It is engineered to conduct a self-test internally every 5 minutes to ensure the protection is on. If the device fails the test, the red light is on to signal that it should be replaced.
• Green: The GFCI receptacle has passed self-test and working properly.

Dimensions

Tips: What is a GFCI outlet?

GFCI outlet are protected sockets that monitor current and identify leaks in the circuit. If a leak is found, the GFCI will trip the circuit and stop the current. This safety feature is ideal for mounting sockets in areas with water, such as bathrooms, laundry rooms and above kitchen countertops. The figure below depicts two tamper-proof, GFCI-rated receptacles of 15 and 20 amps.
