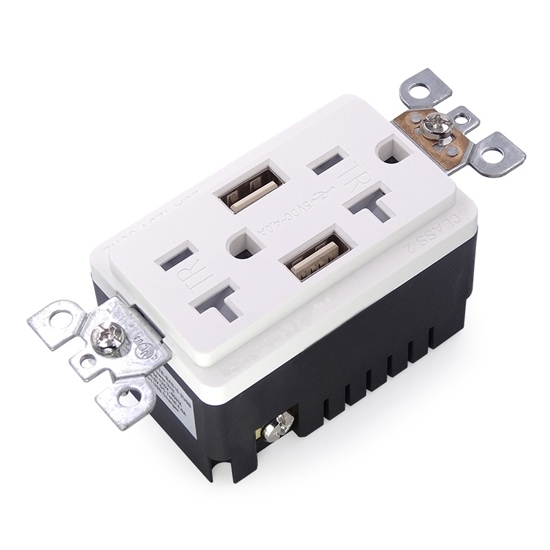

    20 amp USB Wall Outlet, Electrical Receptacle

    5 out of 5 based on 1 reviews | Write a review
    20 amp dual USB wall outlet for sale at economical price. USB outlet is an electrical receptacle for commercial, household and lighting. 125V wall socket meets 10 kA short circuit testing with 60Hz power frequency, working temperature -20℃ ~ 60℃, USB Compatible 1.0, 2.0, 3.0.
    SKU: ATO-B2USB-20
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    ATO low price USB wall outlet is built to meet every need in commercial, industrial, household, institutional settings. This USB socket has safe lock function, the reset button will not engage if protection has been compromised.


    • Good heat dissipation.
    • Design of bottom grid, good cooling.
    • Super high impact resistance and thermal stability.
    • Cover pans are made of high quality polycarbonate.
    • Chemical corrosion resistance.
    • Fingerprint-resistant zinc plated mounting brackets.


    • Model: ATO-B2USB-20
    • Rated Working Current: 20 amp
    • Rated Working Voltage: 125V
    • Power Frequency: 60Hz
    • USB Voltage and Current: 5VDC 4A/ 2.1A
    • Wire Specifications: #14-@10AWG
    • USB Compatible Products: USB1.0/2.0/3.0, Includes Apple Products
    • Electric Strength: Pressure Resistance 1500V 50Hz
    • Duration: 1 Min
    • Working Temperature: -20℃ ~ 60℃
    • Insulation Resistance: >50MΩ (DC500V)
    • Short-Circuit Current: 10kA
    • Meet the Standard: UL498CSA-C22.2 NO.42, Housing Material Flame Retardant Grades UL94-V2


    Dimenisons of 20 amp USB wall outlet

    Tips: How to choose a right USB wall outlet?

    • Choose flame retardant insulating materials with high temperature resistance, moisture resistance and excellent impact resistance.
    • Select an USB receptacle which has the protection door with anti-unipolar insertion, so that the plug and socket can be connected to the power supply, which fundamentally prevents the safety accident caused by the leakage of the plug.
