    15 hp (11 kW) DC Reactor, single Phase

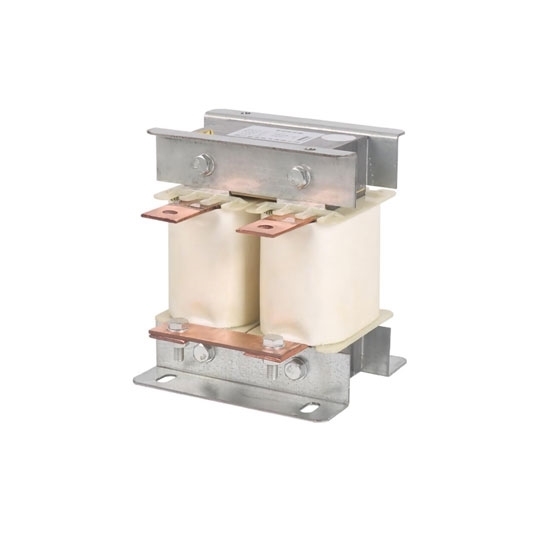

    Picture of 15 hp (11 kW) DC Reactor, single Phase
    Picture of 15 hp (11 kW) DC Reactor, single Phase
    Picture of 15 hp (11 kW) DC Reactor, single Phase
    Picture of 15 hp (11 kW) DC Reactor, single Phase

    15 hp (11 kW) DC Reactor, single Phase

    5 out of 5 based on 2 reviews | Write a review
    $169.32
    Smoothing single phase DC line reactor, 15 hp, rated current 30A, dc output voltage can be customized, insulation class F, DC reacor can effectively reduce harmonic interference, widely used in vfds, inverters, lifting industries, etc.
    *
    *
    SKU: ATO-DCR-15
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Single phase DC reactor can be used in HVDC, power 11 kW, 30 amp rated current, material aluminum or copper, cheap price and high quality.

    Specification:

    Model ATO-DCL-30
    Phase 1 Phase
    Power Adapter 11 kW (15 hp)
    VFD Voltage Adapter 220V-1200V (Contact us for other voltages)
    Rated Current 30A
    Inductance 1.06mH
    Insulation Grade F.H
    Dimension 120*115*130mm (L*W*H)
    Mounting Dimension 100*65mm
    Electric Strength Iron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
    Insulation Resistance iron core-winding 1000VDC, Insulation resistance
    ≥100MV
    Noise of Reactor Less than 35dB (measured from 1 meter away in horizon from reactor)
    Degree of Protection IP00
    Degree of Insulation > Class F
    Weight 4kg

    Features
    1. Improve the input current wave caused by capacitor harmonics.
    2. Reduce and prevent rectifier bridge damage and capacitors.
    3. Overheating due to a surge in current.
    4. Improve the power factor and reduce the AC pulse of the DC bus.
    5. Limit transient changes in system voltage.

    Dimension (unit: mm)
    DC reactor dimensionDetails

    Single Phase DC Reactor Details

    Tips: The role of the shunt reactor

    Shunt reactors have various functions to improve the operating status of reactive power in power systems, and are often used for reactive power compensation. For example, to improve the voltage distribution on long-distance transmission lines, to absorb the charging capacitive reactive power of cable lines, to prevent the self-excitation resonance phenomenon that may occur on long lines of generators.

    Existing reviews of 15 hp (11 kW) DC Reactor, single Phase
    Custom DC Reactor
    I'd like to inquire whether it's possible to customize a DC reactor similar to the ATO-DCL-30, but with an inductance of 2mH?
    From: Patley | Date: 22/05/2026
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The ATO-DCL-30 can be customized with an inductance of 2mH. Please let us know whether you need an aluminum core or a copper core, and your rated operating voltage. We will then provide you with a quote.
    Can I ask some questions about the 15hp DC reactor?
    I am interested in your 15hp DC reactor. Can I ask some questions about it to understand it?
    From: Jao | Date: 17/08/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, of course.
