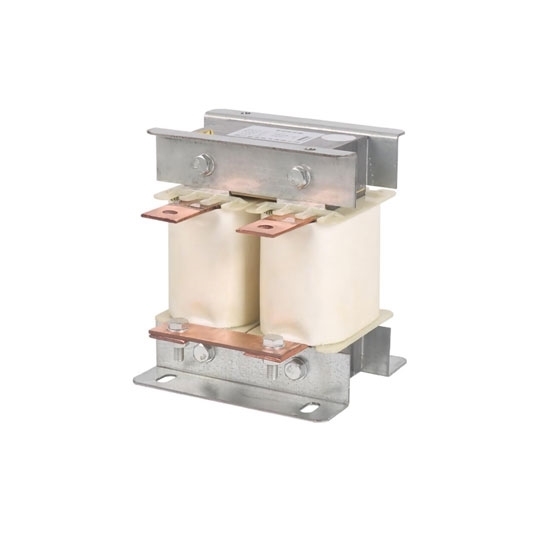

    60 hp (45 kW) DC Reactor, Single Phase

    $395.07
    DC reactor is mainly used for the DC side of the converter, power 60 hp, low cost, rated current 120 Amp, material copper or aluminum, voltage 220 volt, 380 volt or 400 volt. DC link reactor can to reduce harmonic interference.
    *
    *
    SKU: ATO-DCR-60
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Low cost DC line reactor for vfd and inverter, single phase, power 60 hp (45 kW), high protection level, safe and reliable to use.

    Specification:

    Model ATO-DCL-125
    Phase 1 Phase
    Power Adapter 45 kW (60 hp)
    Recommended VFD Model
    SKU: GK3000-4T0450G (2 hp three phase VFD)
    VFD Voltage Adapter 220V- 1200V (Contact us for other voltages)
    Rated Current 125A
    Inductance 0.265mH
    Insulation Grade F.H
    Dimension 165*150*185mm (L*W*H)
    Mounting Dimension 120*80mm
    Electric Strength Iron core-winding 3000VAC/50Hz/10mA/60s no arcing no breakdown
    Insulation Resistance iron core-winding 1000VDC, Insulation resistance
    ≥100MV
    Noise of Reactor Less than 35dB (measured from 1 meter away in horizon from reactor)
    Degree of Protection IP00
    Degree of Insulation > Class F
    Weight 17kg

    Features
    1. Improve the input current wave caused by capacitor harmonics.
    2. Reduce and prevent rectifier bridge damage and capacitors.
    3. Overheating due to a surge in current.
    4. Improve the power factor and reduce the AC pulse of the DC bus.
    5. Limit transient changes in system voltage.

    60 hp DC Line Reactor Dimension (unit: mm)
    DC reactor dimensionDetails

    Single Phase DC Reactor Details
    Tips: When does the inverter need to add a DC smoothing reactor?

    1. When the inverter power is ≥37KW.

    2.When the power factor of the frequency conversion system is low.

    3.When the rectification link of the inverter is unstable.

    4. The rectification harmonics of the inverter are too high, which affects the normal operation of the sensitive electrical equipment around the inverter.
