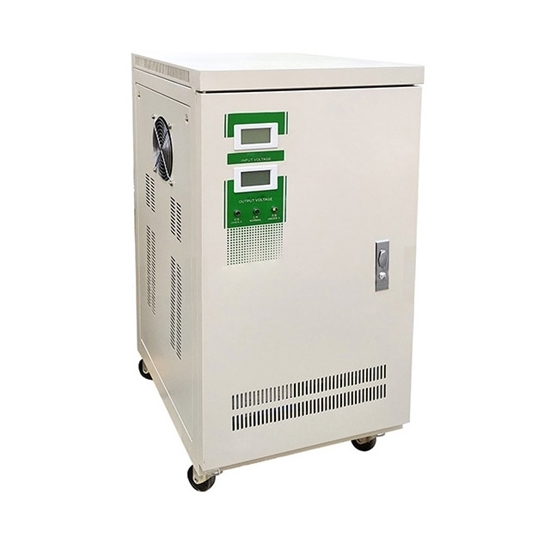

15 kVA Single Phase Automatic Voltage Stabilizer

5 out of 5 based on 1 reviews | Write a review
$1,745.26
15 kVA 1-phase voltage stabilizer is designed with quick response speed and wide input voltage range of 190-250V and full automatic intelligent protection, it can keep the voltage stable and help electrical equipment run normally.
*
*
*
SKU: ATO-AVS-1P15K
30-day Returns
Delivery date: 10-20 days

Buy a high-performance single-phase automatic voltage stabilizer with a reasonable price, 15 kVA rated capacity, 95-125V / 190-250V AC input voltage, and 110V±3%/ 220V±3% output voltage, is able to satisfy various requirements such as household, office, industry, medical electricity supply.

Features

  • Wide input voltage: 95-125V/ 190-250V AC or customized
  • The high accuracy of the output voltage: 110V±3%/ 220V±3%, other voltages can be customized
  • High technology: Programmed control computerized
  • Perfect protection function: Over/low voltage protection, over-heat/load protection, short circuit protection
  • Fashion design: LCD display that can show all protection functions i.e. input voltage, output voltage, temperature, loading, fault indication, and so on.

Specifications

Product Name Automatic Voltage Stabilizer
Model Number ATO-TND/JSW-15kVA
Capacity 15 kVA (The power capacity of the voltage stabilizer needs to be 1.5~2 times greater than the load power)
Phase Single Phase
Input Voltage Range ±15% tolerance of output voltage
Output Voltage* 220V±3%/ 230V±3%/ 240V±3%/ 110V±3% (Optional)
Adjust Time <1sec. (Against 10% input voltage deviation)
Frequency 50Hz/60Hz
Current Type AC
Protection Overvoltage <246±4V
Temperature Rise <60°C
Ambient Temperature -10°C~+40°C
Insulation Resistance ≥5MΩ
Temperature Protection 110℃±10℃
Relative Humidity <95%
Wave Form Distortion No additional waveform distortion
Load Power Factor 0.8
Efficiency ≥90%
Display LCD
Protection Grade IP20
Dielectric Strength 1500V/min
Certification CE
Warranty Period 12 months
Weight 70 Kg
Size 410*330*650mm
Note: The provided 15 kVA voltage stabilizer is 1-phase (L, N, G) by Europe standard. We can customize the split phase (L1, L2 + G) like the USA standard, just confirm with us by email after ordering.

Details

15KVA Single Phase Automatic Voltage Stabilizer Details

Tips: 6 advantages of AC automatic voltage stabilizer

  1. Super strong power supply voltage stabilizing effect ensures that the electrical appliance can work stably.
  2. Be able to stabilize the voltage of low voltage 120-160v or high voltage 250-270v between 200-230v, and ensure the normal operation of electrical appliances.
  3. In case of sudden power supply after an emergency power failure, the output power supply can be started with a delay of 5-8 minutes, which can better avoid damage of electrical appliances due to high voltage.
  4. The AC voltage stabilizer can ensure the safety of electrical appliances.
  5. Effectively reduce the power consumption of electrical equipment.
  6. In case of insufficient power supply or voltage, the AC voltage stabilizer can provide the most reliable power guarantee.
Existing reviews of 15 kVA Single Phase Automatic Voltage Stabilizer
Question about the 15kVA 1-phase voltage stbilizer
What will be happened if your 15kVA 1-phase voltage stbilizer with 220V output voltage subjected to spike or under voltage (175V) in input?
From: Robin Kroll | Date: 20/12/2020
Was this review helpful? Yes No (0/0)
ATO Responded
1. If the input voltage to the stabilizer is reduced to 176V for 5 minutes or more, the output current of the stabilizer will decrease, but it will not be damaged.
2. Voltage spikes have no effect on the voltage stabilizer.
