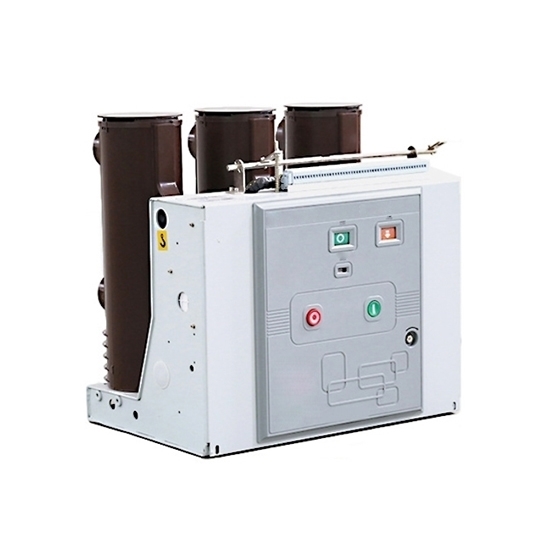

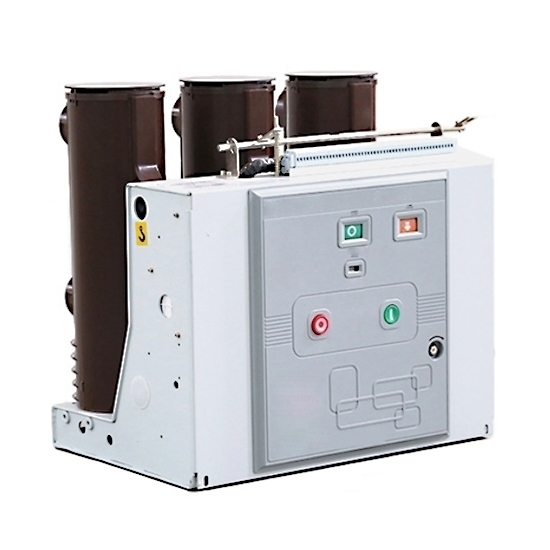

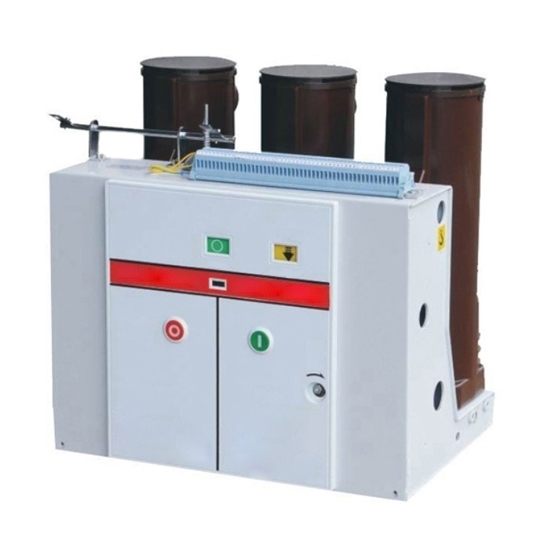

15kV Vacuum Circuit Breaker

5 out of 5 based on 4 reviews | Write a review

$3,685.21

Lower cost 15kv circuit breaker with vacuum suit for indoor. Electrical vacuum breaker rate current is 1000A, 2500A, 3150A. 15kv breaker rated short circuit switching current is 50kA, 80kA, 100kA.

Rated Current and Rated Short Circuit Breaking Current *

SKU: ATO-VCB-15

30-day Returns

Delivery date: 6-12 days

Overview
Related Video

Vacuum circuit breaker with 15kv for sale. Vacuum breaker switch can be used about 20000 times. It is applicable in occasions with frequent operations, acting to protect and control line.

Features:

15kv circuit breaker with ideal contact material and shape, ensuring low current carrying value and stable contact resistance.
Integrated design of main conductive circuit made of compound isolation material and operating mechanism.
15kv breaker with few components and parts, compact and logical structure, assuring more reliable and safer operation.
Compact design enables the breaker to be installed within almost all switchgears.
Superior cost performance, ideal choice for engineering programs.

Parameter List: (Parameters can be customized)

Model	ATO-VCB-15
Rated voltage	15 kV
Maximum operating voltage	15 kV
Rated current	630A/1000A/1250A	1250A/1600A/2000A/2500A	1250A/1600A/2000A/3150A	2000A/2500A/3150A
Rated short circuit breaking current	20kA/25kA	31.5kA	40kA	50kA
Rated short circuit closing current	50kA/63kA	80kA	100kA	125kA
Rated peak withstand current	50kA/63kA	80kA	100kA	125kA
4S Rated short-time withstand current	20kA/25kA	31.5kA	40kA	50kA
Rated insulation level	power frequency withstand voltage（rated open circuit before and later）: 42 kV
	impulse withstand voltage（rated open circuit before and later）: 75 kV
Mechanical life	20000 times
Rated closing voltage of operating mechanism (DC)	110 V, 220 V
Rated switching voltage of operating mechanism (DC)	110 V, 220 V
Contactor torque	11±1
Exceed range(the compress length of contact spring)	4±0.5
Max.bouncing duration	≤ 2
Average opening speed	≤ 0.05
Average closing speed	≤ 0.08
Opening time	≤ 50
Closing time	≤ 100
Accumulative allowable wear thickness of dynamic and static contacts	3 mm
Certification	CE
Warranty	12 months

Dimensions: (Unit: mm)

Vacuum circuit breaker inside construction Vacuum circuit breaker external construction

Schematic Diagram:

Vacuum circuit breaker schematic diagram

Details

Tips: Difference between Vacuum Contactor and Vacuum Circuit Breaker

Vacuum Circuit Breaker:

Complete system short-circuit current; High mechanical endurance; It is operated electrically. It is mechanically latched because CB remains closed on system voltage loss; Short circuit let through energy is low; Control power is used for the operation of CB, protective relays, and space heaters.

Vacuum Contactor:

Endurance is extremely high for mechanical like 1,000,000 processes for up to 630A; It operates electrical only; It uses protective relays for overload protection and fuses for the protection of short-circuit; Control power is used for the operation of contactor, protective relays and space heaters.
