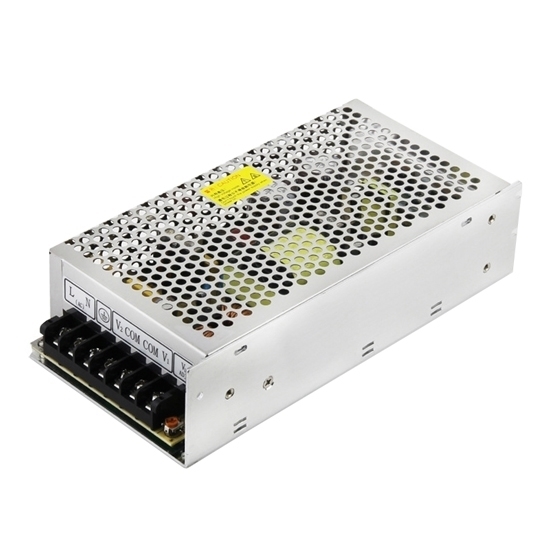

    15V DC 10A 300W Switching Power Supply

    5 out of 5 based on 1 reviews | Write a review
    Factory price switching power supply transforms the full range of AC input to a stable DC voltage of 15V at the rated power 300W and rated current 10A, this high efficiency SMPS can be used for LED lights, printers, computers, monitoring cameras and industrial control.
    SKU: ATO-SMPS-300-1015
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    ATO switching power supply incorporates a switching regulator in order to be highly efficient in the conversion of electrical power.


    • Universal AC input / Full range AC input
    • Short circuit, overload and overvoltage protections
    • Cooling by free air convection
    • LED indicator for power on
    • 100% full load burn-in test
    • High reliability, low price and wide range of applications


    Model ATO-HF300D-ML
    DC Voltage 15V
    Rated Current 10A
    Current Range 0.5 ~ 10A
    Rated Power 300W
    Ripple & Noise (Max.)(Note 2) 120mVp-p
    Voltage Adjust Range Rated voltage ±5%
    Voltage Tolerance (Note 3) ±1.0%
    Line Regulation ±0.5%
    Load Regulation ±0.5%
    Setup, Rise, Holdup Time 200ms, 100ms, 30ms
    Input Voltage Range 170V~264VAC 210 ~ 370VDC
    Frequency Range 47~63Hz
    Efficiency (Typ.) 85%
    AC Current (Typ.) 1.3A/115V AC 0.65A/230V AC
    Inrush Current (Typ.) Cold start: 60A/230V AC
    Leakage Current <1mA/230V AC
    Protection Overload 105~150% rated output power
    Protection type: Hiccup mode, recovers automatically after fault condition is removed.
    Environment Working Temperature -10 ~ +60℃
    Working Humidity 20~90% RH non-condensing
    Storage Temperature -20~+85℃
    Storage Humidity 10~95% RH non-condensing
    Temperature Coefficient ±0.03%/℃ (0~50℃)
    Vibration 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
    Safety & EMC (Note 4) Safety Standards UL1012 Approved
    Withstand Voltage I/P-O/P: 1.5KVAC
    I/P-FG: 1.5KVAC
    O/P-FG: 0.5KVAC
    Isolation Resistance I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/70% RH
    EMC Emission Compliance to FCC Part15 Jconduction Class B
    Others MTBF ≥408.3K hrs MIN. MIL-HDBK-217F (25℃)
    Dimension 199*98*50mm (L*W*H)
    Weight 0.51kg
    Note 1. All parameters NOT specially mentioned are measured at 230V AC input, rated load and 25°C of ambient temperature.
    2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
    3. Tolerance includes set up tolerance, line regulation and load regulation.
    4. The switching power supply is considered a component which will be installed into final equipment. Please make sure that the final equipment still meets EMC directives.

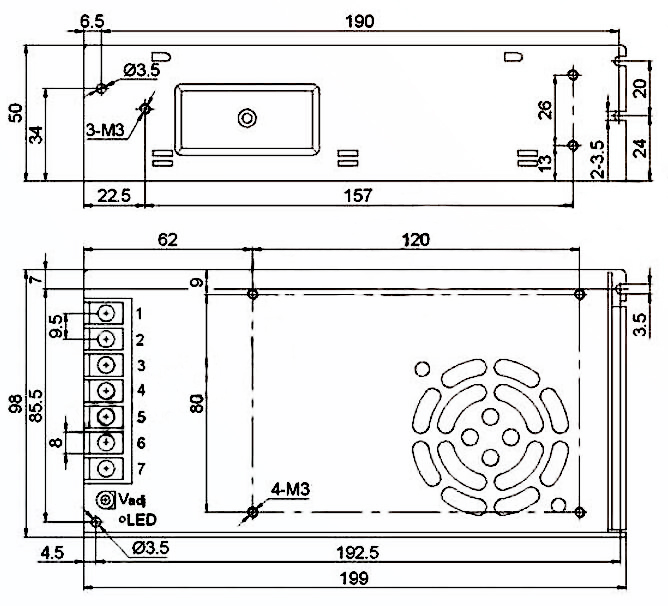

    Installation Dimension (Unit: mm)

    Installation dimensiions of 300W 15V switchingpowersupply

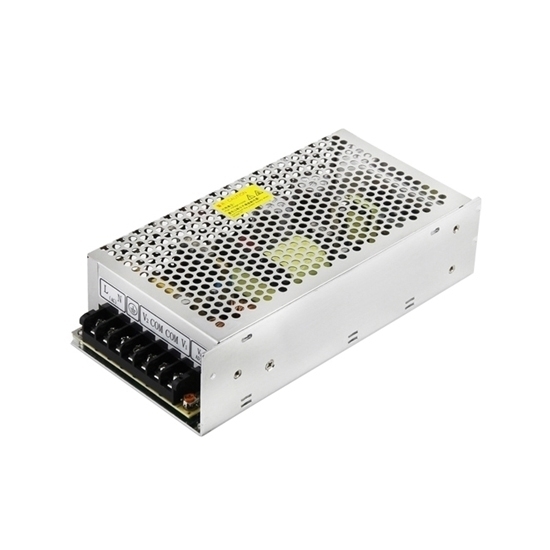

    300W DC Switching Power Supply Details

    SMPS Power Supply Applications

    • Power Tools
      Electric Saw, Drilling Machine, Ginder, Sand Blast Machine, Puching Machine, Weeding Machine, Air Compressor, etc.
    • Offices Devices
      Computer, Printer, LCD Monitor, Scanning Machine, etc.
    • Electrics & Household Appliance
      TV, VCRS, Radio, Dust Collector, Fan Lamp or LED Strip, Sewing Machine, Microwave Oven, Fridge / Freezr, Coffemarker, etc.
    • Industrial Equipemnt
      Monitoring Equipment, Shipping, Vehicle, Metalhalide Lamp, Solar System, Wind Power Generation, etc.

    Tips: What is the voltage regulation test in switching power supply?

    Line regulation test, which means the rate of change of the output voltage with the input AC voltage when the power supply has a certain load. What is investigated is that when the input AC grid voltage varies within a certain range, the output voltage of the power supply cannot have too much jump. Generally set at ±2%-±5%.

    Existing reviews of 15V DC 10A 300W Switching Power Supply
    This is a great buy.
    I am using this to power a variety of equipment that only needs about half the rated power. Nice package, Steady DC voltage, great regulation, even at quickly varying current. Very quiet too. Overall, so far, so awesome. I would recommend it to anyone.
    From: Pruitt | Date: 15/04/2022
