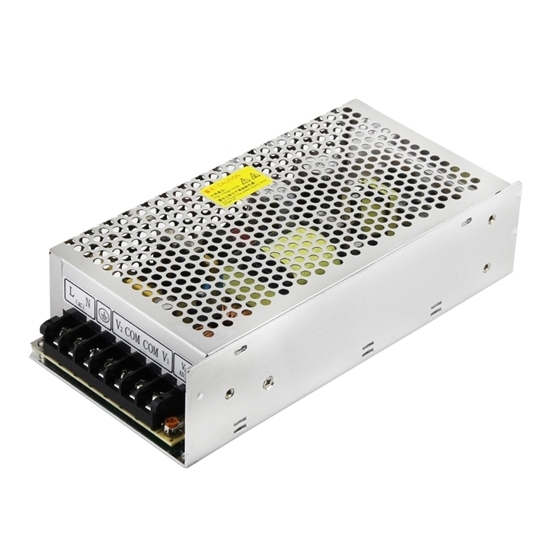

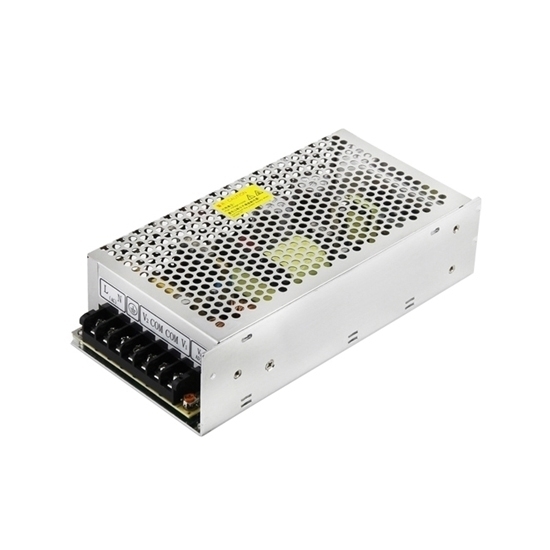

    15V DC 5A 150W Switching Power Supply

    5 out of 5 based on 1 reviews | Write a review
    $91.91
    Favorable price 150W SMPS power supply converts AC input to 15V DC at a rated current of 5A with short circuit, overload and overvoltage protections. ATO switching power supply is high reliability and high efficiency, which can be used for DC power supply for wide applications.
    SKU: ATO-SMPS-150-515
    Free Shipping Worldwide
    Delivery date: 6-12 days

    ATO switching power supply incorporates a switching regulator in order to be highly efficient in the conversion of electrical power.

    Features

    • Universal AC input / Full range AC input
    • Short circuit, overload and overvoltage protections
    • Cooling by free air convection
    • LED indicator for power on
    • 100% full load burn-in test
    • High reliability, low price and wide range of applications

    Specification

    Model ATO-HF150W-DL
    Output
    DC Voltage 15V
    Rated Current 5A
    Current Range 0.5 ~ 5A
    Rated Power 150W
    Ripple & Noise (Max.)(Note 2) 150mVp-p
    Voltage Adjust Range Rated output voltage ±5%
    Voltage Tolerance (Note 3) ±1.0%
    Line Regulation ±0.5%
    Load Regulation ±0.5%
    Setup, Rise, Holdup Time 200ms, 100ms, 30ms
    Input Voltage Range 170 ~ 264VAC (210 ~ 370VDC)
    Frequency Range 47~63Hz
    Efficiency (Typ.) 85%
    AC Current (Typ.) 1.3A/115V AC 0.65A/230V AC
    Inrush Current (Typ.) Cold start: 40A/230V AC
    Leakage Current <0.7mA/230V AC
    Protection Overload 105~130% rated output power
    Protection type: Hiccup mode, recovers automatically after fault condition is removed.
    Environment Working Temperature -20 ~ +50℃
    Working Humidity 20~90% RH non-condensing
    Storage Temperature -20~+85℃
    Storage Humidity 10~95% RH non-condensing
    Temperature Coefficient ±0.03%/℃ (0~50℃)
    Vibration 10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
    Safety & EMC (Note 4) Safety Standards UL1012 Approved
    Withstand Voltage I/P-O/P: 1.5KVAC
    I/P-FG: 1.5KVAC
    O/P-FG: 0.5KVAC
    Isolation Resistance I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/70% RH
    EMC Emission Compliance to FCC Part15 Jconduction Class B
    Others MTBF ≥408.3K hrs MIN. MIL-HDBK-217F (25℃)
    Dimension 199*98*40mm (L*W*H)
    Weight 0.68kg
    Note 1. All parameters NOT specially mentioned are measured at 230V AC input, rated load and 25°C of ambient temperature.
    2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
    3. Tolerance includes set up tolerance, line regulation and load regulation.
    4. The switching power supply is considered a component which will be installed into final equipment. Please make sure that the final equipment still meets EMC directives.

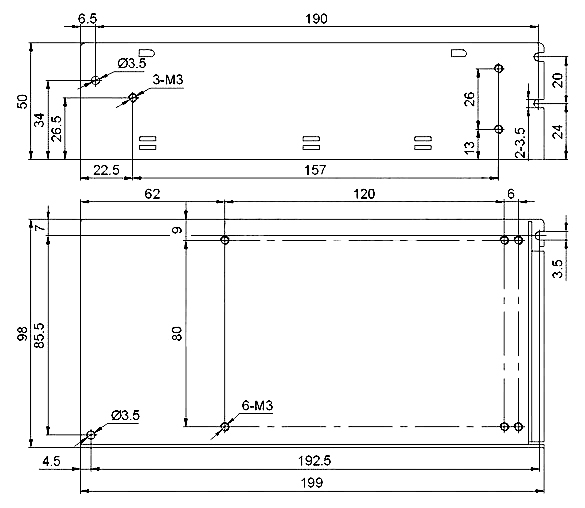

    Installation Dimension (Unit: mm)

    Installation dimensiions of 150W switching power supply

    SMPS Power Supply Applications

    • Power Tools
      Electric Saw, Drilling Machine, Ginder, Sand Blast Machine, Puching Machine, Weeding Machine, Air Compressor, etc.
    • Offices Devices
      Computer, Printer, LCD Monitor, Scanning Machine, etc.
    • Electrics & Household Appliance
      TV, VCRS, Radio, Dust Collector, Fan Lamp or LED Strip, Sewing Machine, Microwave Oven, Fridge / Freezr, Coffemarker, etc.
    • Industrial Equipemnt
      Monitoring Equipment, Shipping, Vehicle, Metalhalide Lamp, Solar System, Wind Power Generation, etc.

    Tips: The method of improving the standby efficiency of switching power supply

    • Cut off the starting resistor
      For the flyback power supply, the control chip is powered by the auxiliary winding after startup, and the voltage drop on the startup resistor is about 300V. Assuming that the starting resistance is 47kΩ, the power consumption is nearly 2W. To improve standby efficiency, the resistive channel must be cut off after startup. If the controller does not have a special start-up circuit, a capacitor can also be connected in series with the start-up resistor, and the loss after start-up can be gradually reduced to zero. The disadvantage is that the power supply cannot be restarted by itself, and the circuit can be restarted only after the input voltage is disconnected to discharge the capacitor.
    • lower clock frequency
      The clock frequency can drop smoothly or suddenly. The smooth decline is that when the feedback amount exceeds a certain threshold, the linear decline of the clock frequency is realized through a specific module.
    Existing reviews of 15V DC 5A 150W Switching Power Supply
    This product is great.
    I bought this 15V 5 amps switching power supply to drive some 12V linear actuators for a CNC table. It was working great. The company has been responding to my emails. Good product and good company. Very good investment. I will buy again if another project needs one.
    From: Juan | Date: 18/04/2022
    Was this review helpful? Yes No (0/0)
