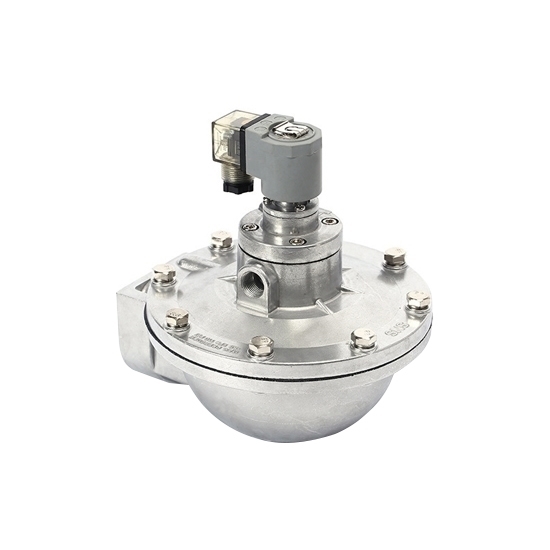

2" Pulse Solenoid Valve for Dust Collector

Pulse solenoid valve is used in industrial applications, particularly in dust collection and air filtration systems. This cleaning process helps remove accumulated dust and particulate matter, ensuring the efficient operation of the filtration system.

Specification

• Model: ATO-SMFZ-50P
• Port Size: G2 inch
• Connection Type: Threaded Type
• Channel Position: Right Angle
• Flow Direction: Unidirectional
• Applicable Media: Air
• Voltage (Optional): AC110V, AC220V, DC24V
• Coil Power: 20VA
• Temperature: -5~60℃
• Working Pressure: 0.3~0.8MPa
• Max. Pressure: 1.0MPa
• Relative Humidity: ≤80%RH
• Diaphragm Life: More Than 1 Million Times
• Material: Aluminum Alloy (Body), NBR (Seal)

Dimension (Unit: mm)

Details

Tips: What is the function of the dust collector pulse valve?

A dust collector pulse valve is a critical component in industrial dust collection systems. Its primary function is to help clean and maintain the efficiency of dust collectors, which are essential for controlling and removing airborne particles and contaminants from industrial environments. When the dust collector's filter or baghouse becomes clogged with particulate matter, airflow and filtration efficiency decrease. The pulse valve is responsible for periodically releasing short bursts of compressed air into the filter bags or cartridges. This pulse of air creates a shockwave that dislodges the accumulated dust and debris, allowing it to fall into a collection hopper for disposal. By efficiently clearing the filters, pulse valves help maintain consistent airflow and ensure the dust collector's effectiveness in maintaining a clean and safe work environment, reducing air pollution, and preventing equipment damage.
