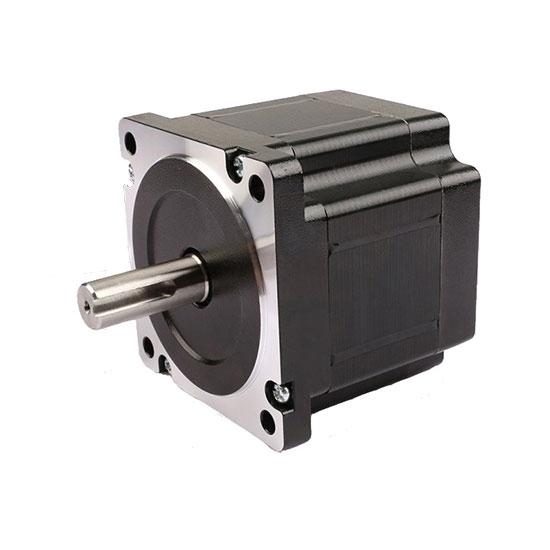

    2-phase Nema 34 Stepper motor, 4A, 1.8 degree 4 wires

    $155.38
    2 phase 4 wires, 4A Nema 34 bipolar stepper motor which has 1.8 degree per step for smooth motion and a nice holding torque, It is widely used in 3D printer, monitor, medical, textile, packaging machine, stage lighting, ect..
    SKU: ATO2160-4004A
    Delivery date: 6-12 days

    2 phase Nema 34 bipolar stepper motor which has 1.8 degree per step for smooth motion and a nice holding torque, 4 wires, specified to have a maximum current of 4A, direct sale by manufacturer.
    Specifications

    Basics Model ATO2160-4004A
    Step Angle 1.8°
    Length 160mm
    Weight 5.5kg
    Current 4A
    Resistance 1.4Ω
    Holding Torque 12Nm
    Motor Leads 4
    Rotor Inertia 4800g-cm2
    Technical parameters Step Angle Accuracy ±5% (full step, no load)
    Resistance Accuracy ±10%
    Inductance Accuracy ±20%
    Temperature Rise 80℃Max. (rated current, 2 phase on)
    Ambient Temperature -10℃~+50℃
    Insulation Resistance 100MΩ Min. 500VDC
    Dielectric Strength 1Min. 500VAC·5mA
    Shaft Radial Play 0.06Max. 450g
    Shaft Axial Play 0.08Max. 450g

    Dimension
    stepper motor dimension L60-120
    Motor Connection
    Motor connection
    Tips: Why the stepper motor can be widely applied into the robot?
    The advantages over using stepper motor for robot design:

    1. As for the motors with the same performance, the stepper motor is relatively cheaper.
    2. The stepper motor has longer service life than brushless electric machine, etc..
    3. It can accurately positioned without slipping or overshoot as digital motor.
    4. Drive module isn’t linear amplifier, which means fewer cooling fins, higher efficiency and higher reliability.
    5. Drive module is cheaper than linear amplifier.
    6. There is no expensive electronic component controlled by servo for the signal directly originates from MPU.
    7. Software is safe. As for the step-by-step pulse about board problem, if the software cannot work or is collapsed, the motor will be automatically ceased.
    8. As for the electronic driver fault-safe, in case of being locked due to the fault in amplifier, the motor cannot run. The motor still can run and may rotate at full speed in case of faults in servo driver.
    9. Whether the velocity control is accurate and repeatable (crystal control).
    10. If necessary, stepper motor rotates extremely slowly.

    Due to the low-velocity torque device of stepper motor, the transmission is shorter, which means higher reliability, efficiency, smaller gap and lower cost. Just thanks to this feature, the robot is ideal for the requirement of most robots for short-distance motion is cycle period from acceleration to the low point.
