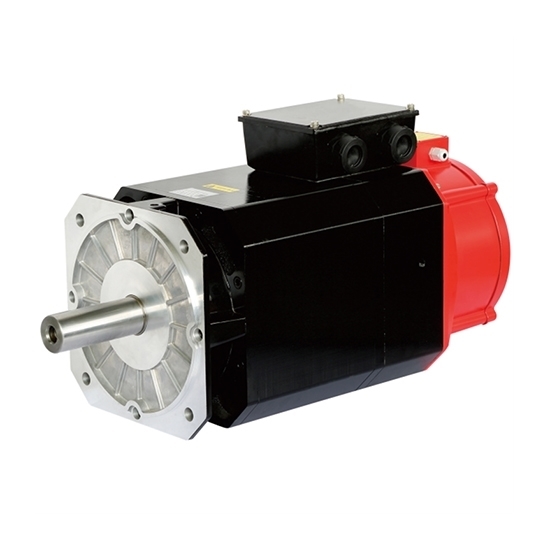

    20 hp (15 kW) AC Servo Spindle Motor, 95 N.m, 1500 rpm

    5 out of 5 based on 1 reviews | Write a review
    $2,897.69
    AC servo spindle motor can be used with controller and brake resistor. High torque 95 N.m, working power 20 hp (15 kW), rated voltage 3-phase 220V/380V, rated speed 1500 rpm (max 6000 rpm), built-in photoelectric encoder. Asynchronous servo motor for CNC machine spindle control and industrial automation speed control, heavy duty, reasonable price.
    SKU: ATO-SERVO-2095
    *
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Three phase AC servo spindle motor from reliable manufacturer. Rated power 20 hp (15 kW), voltage 220V/380V, high speed 6000 rpm (maximum), high torque 95 N.m, equipped with high-speed photoelectric encoder. The asynchronous servo spindle motor has matched driver and brake resistor for selection, which is the best motor for CNC machine, milling tool, woodworking router and industrial automation machine, etc.

    Specification

    Model ATO-250ZJY-4-15-15
    Rated Power 20 hp (15 kW)
    Rated Torque 95 N.m
    Rated Voltage (optional) AC 3-Phase 380V, 220V
    Rated Current 30A
    Rated Speed 1500 rpm
    Max Speed 6000 rpm
    Rated Frequency 50Hz
    Rotor Inertia 0.018 G.D2
    Fan Power 75W
    Fan Voltage AC 380V
    Vertical Weight 119 kg
    Horizontal Weight 131 kg
    Working Temperature 0~55℃
    Humidity Less than 90%
    Number of Poles 4
    Incremental Encoder Line (optional) 1024/2500PPR
    Insulation Class F
    Safety Class IP54
    Insulation and Voltage Resistance AC 1500V, 1 minute
    Insulation Resistance DC 500V, 10M above
    Vibration Under 2.5G
    Altitude Under 1000m
    Work System Continuous
    Installation Method Flange installation

    Features

    • The AC servo spindle motor is a 3-phase AC induction servo motor, compact structure, small size, high torque.
    • AC servo spindle motor adopts best electromagnetic design, high-speed photoelectric encoder, high precision bearings and F level insulation.
    • AC servo spindle motor is in easy use, stable operation, high control precision, low electromagnetic noise, high efficiency, long service life and high performance price ratio.
    • AC servo spindle motor is widely used in digital control machine, laser machine, milling machine, embroidery machine, textile machinery, printing machinery, packaging machinery, engraving machine, winding machine, three-coordinates measuring machine, industrial robot, medical equipment, woodworking router and other CNC  machine.

    20 hp (15 kW) AC Servo Spindle Motor Installation Dimension (Unit: mm)

    • Vertical Installation

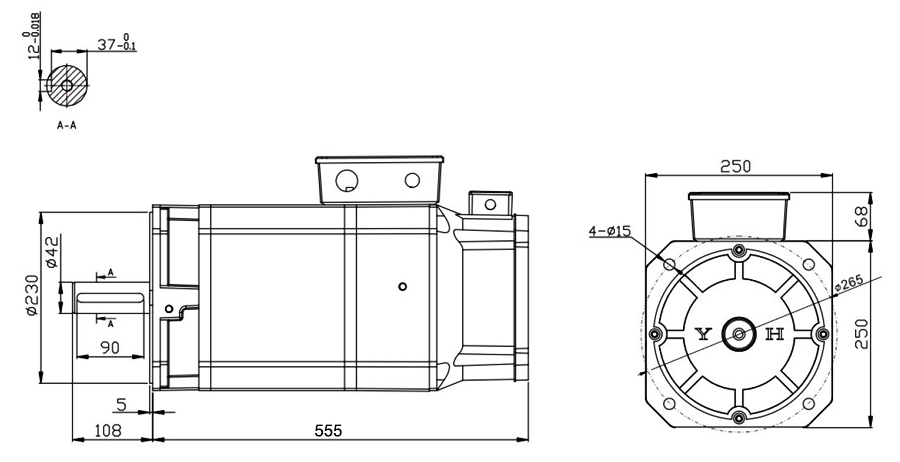

    20 hp (15 kW) AC Servo Spindle Motor Installation Dimension, Vertical

    • Horizontal Installation

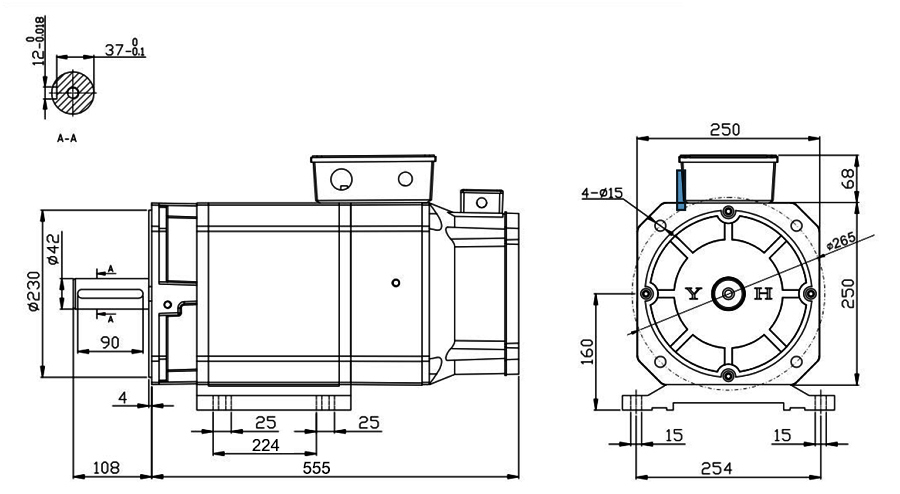

    20 hp (15 kW) AC Servo Spindle Motor Installation Dimension, Horizontal

    AC Servo Spindle Motor Encoder Wiring

    Serial Number 1 2 3 4 5 6 7 8 9 10
    Signal Shield Z+ B+ A+ +5V   Z- B- A- 0

    Tips: Why is the bearing of 20 hp servo spindle motor overheating?

    • 20 hp servo spindle motor's own reasons:
    1. The inner and outer rings of the bearing are too tightly matched.
    2. There is a problem with the shape and position tolerance of the parts, such as the poor coaxiality of the machine base, end cover, shaft and other parts.
    3. Improper selection of bearings.
    4. The bearing is poorly lubricated or the bearing is not cleaned, and there is debris in the grease.
    5. Shaft current.
    • Improper use of 20 hp servo spindle motor:
    1. Improper installation of the unit. For example, the coaxiality of the AC servo spindle motor shaft and the dragged device shaft does not meet the requirements.
    2. Pulling the pulley is too tight.
    3. Improper maintenance of the bearing, insufficient lubricating grease or exceeding the service life, drying and deterioration.
    Existing reviews of 20 hp (15 kW) AC Servo Spindle Motor, 95 N.m, 1500 rpm
    Great value and high quality!
    Does zero drift has to be restrained?
    From: Nesta | Date: 22/07/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    In the process of closed-loop control, the presence of zero drift can have an effect on the control result, so it is preferable to suppress it. Use the parameters for suppressing zero drift on the controller or servo, and adjust them carefully so that the motor speed converges to zero. Since zero drift itself has a certain randomness, it is not necessary to require the motor speed to be absolutely zero.
