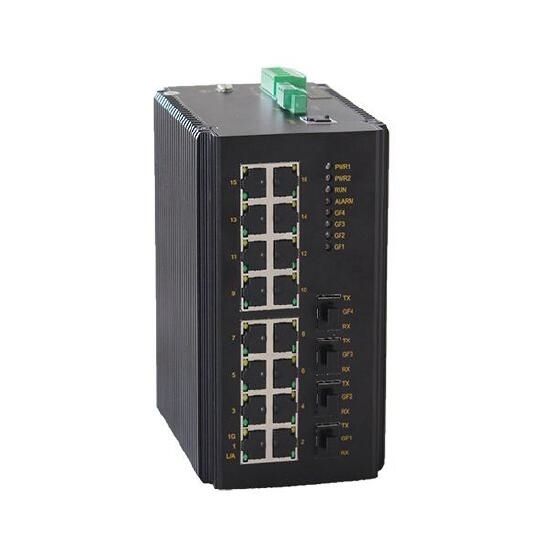

20 Port Full Gigabit Managed Industrial Switch

5 out of 5 based on 1 reviews | Write a review

$1,073.85

Best cost performance full Gigabit managed Ethernet switch, with 4 Gigabit SFP ports plus 16 Gigabit RJ45 ports, optional dual 24vdc 48vdc and single AC/DC power supply, Layer 2 managment and 35mm DIN-Rail mounted, redundant Ethernet technologies such as MW-Ring, EAPS/MSTP/STP increase the reliability of your system.

Power Supply Selection *

SKU: ATO-ES-SCOM7220G

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

20 ports full Gigabit Layer 2 managed switch for industrial applications, ideal for upgrading an existing network to Gigabit speed.

Specification

Model	ATO-SCOM7220G
Software Performance
Redundancy Protocol	Support MW-Ring and the recovery time<20 ms. Support EAPS/MSTP/RSTP
Multicast Routing	Support IGMP snooping/ IGMP v1/v2/v3 Support GMRP Support static multicast
Unicast Routing	Support RIPv1/v2/RIPng/OSPFv1/v2 Support Static Routing Support PIM-SM/PIM-DM
Management and Maintenance	Support CLI and Web management methods Support SNMP v1/v2c Support unified PC software management
Technical Specifications
Ethernet Standard	IEEE802.3-10BaseT IEEE802.3u-100BaseTX/100Base-FX IEEE802.3x-Flow Control IEEE802.3z-1000BaseLX IEEE802.3ab-1000BaseTX IEEE802.1ab IEEE802.1D-Spanning Tree Protocol IEEE802.1w-Rapid Spanning Tree Protoco IEEE802.1Q -VLAN Tagging IEEE802.1p -Class of Service IEEE802.1X-Port Based Network Access Control
Switch Properties
Priority Queue	4
VLAN ID	1-4096
IGMP Groups	512
MAC Table	16k
Switch Bandwidth	40Gbps
Switch Delay	<5μs
Interface
Gigabit Ports	Port numbers: 20
	Connector: SFP for fiber port (LC, single or multi-mode), RJ45 for copper port
	Baud rate: 1000Base-LX (fiber port), 10/100/1000M for copper port
Console Port	RS232/RJ45
Terminal Block for Power Input	5.08mm terminal block
Terminal Block for Relay Alarm	5.08mm terminal block, 1A@24VDC
Communication Distance
Twisted-pair	100m (CAT5/CAT5e cable)
Multi-mode Fiber	Gigabit multi-mode: 850nm 550m
Single-mode Fiber	Gigabit single mode: 1310nm 20km
LED Indicator Lights
Front Panel LED	Port light: LINK/ACT, SPEED
	Running light: RUN
	Power LED: PWR1/PWR2
	Ring LED: Alarm
Power Requirements
Power Input	DC18-72VDC (Dual redundant input) Single DC110-220V (DC110~370V) or AC100-240V (AC85~264V)
Full-load Consumption	<15W
Overload Protection	support
Inversed Protection	support
Redundancy Protection	support
Working Environment
Operating Temperature	-40°C~85°C
Storage Temperature	-40°C~85°C
Ambient Humidity	5%~95% (non-condensing)
Physical Characteristics
Shell	IP40 protection, aluminum alloy shell
Installation	35mm din rail mounted installation
Dimension	156mm x 128mm x 72mm
Weight	650g
Industry Standard
EMC	EN61000-4-2(ESD), Level 4 EN61000-4-3(RS), Level 4 EN61000-4-4(EFT), Level 4 EN61000-4-5(Surge), Level 4 EN61000-4-6(CS), Level 4 EN61000-4-8, Level 5
Impact	IEC60068–2-27
Falling	IEC60068-2-32
Shock	IEC60068-2-6

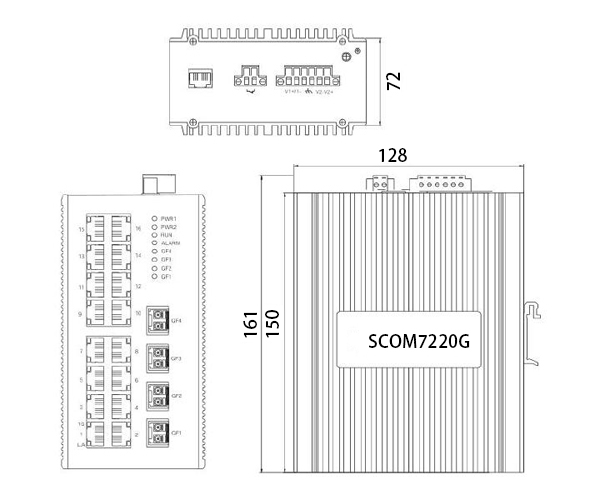

Dimensional Drawing (mm)

Tips: What is industrial Ethernet switch ring network redundancy?
Ring network is to use a continuous loop connecting each device together. It ensures that the signals sent on one device can be seen by all other devices on the ring. Ring network redundancy refers to whether the switch supports: When the cable connection is interrupted, the IE switch receives this information and activates its backup port to restore network communication. At the same time, the industrial Ethernet switches disconnected from ports 7 and 8 in the network, the relays are closed, and the indicators give an error alarm to the user. After the cable repair is normal, the relay and indicator light return to the normal state.

Existing reviews of 20 Port Full Gigabit Managed Industrial Switch

Managed switch vs unmanaged switch

I have two quesitons about this managed switch. Is power input DC110-220V (DC110~370V) or AC100-240V (AC85~264V) (should be on the label)? What is the difference between the smart switch and the unmanaged switch?

From: Michel | Date: 10/04/2022

Was this review helpful? Yes No (0/0)

ATO Responded

Yes, it just as the label. And unmanaged switches are plug and play - connect one of the ports to your existing LAN via Ethernet to receive additional physical Ethernet port connectivity via the switch. The Easy Smart variation offers some basic management features such as QoS for a Lag-Free Experience, IGMP Snooping for Multicast Optimization, and VLAN for Security.
