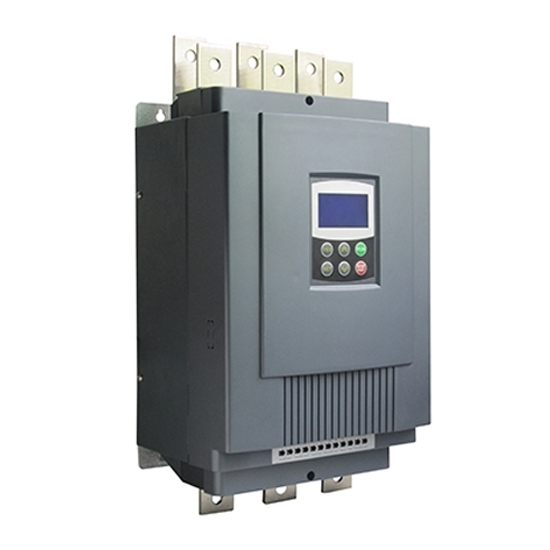

    250 hp (185 kW) Soft starter, 370 A, 3ph 220v/380v/480v

    5 out of 5 based on 1 reviews | Write a review
    Discounted 250 hp soft starter, 185 kW three phase 220v, 380v, 480v, 690v soft starter, protecting AC motor from inrush current impact, direct sale by manufacturer.
    SKU: GS-185
    30-day Returns
    Free Shipping
    Delivery date: 2-3 days

    250 hp AC motor soft starter, 185 kW three phase 220v, 380v, 480v, 690v starter.

    Model GS2-185 (220v, 240v), GS3-185 (380v, 400v, 415v), GS4-185 (460v, 480v), GS6-185 (550v, 690v).
    Capacity 250 hp (185 kw)
    Current 370 amps at 380v/480v, 710 amps at 220v
    Weight 21 kgs
    Dimension 525*257*194 mm
    Input Voltage Three-phase 230v, 440v, 480v, 660v AC
    Frequency 50Hz/ 60Hz
    Adaptive Motor Squirrel-cage three-phase asynchronous motor
    Starting Times It is recommended not to exceed 20 times per hour.
    485 Communication DB9 interface, male plug, ① is RS485+, ⑥ is RS485-
    Control Mode
    1. Operation panel control.
    2. Operation panel + external control.
    3. External control.
    4. External control + COM control.
    5. Operation panel + external + COM control.
    6. Operation panel + COM control.
    7. COM control.
    8. No start or stop operation.
    Start Mode
    1. Current-limiting to start.
    2. Voltage ramp to start.
    3. Torque control + current-limiting to start.
    4. Torque control + voltage ramp to start.
    5. Current ramp to start.
    6. Voltage current-limiting double closed-loop start.
    Stop Mode
    1. Soft stop.
    2. Free stop.
    Protective Function
    1. Open loop protection for external instantaneous stop terminals.
    2. Over-heat protection for soft starter.
    3. Protection for too long starting time.
    4. Input open phase protection.
    5. Output open phase protection.
    6. Unbalanced three-phase protection.
    7. Starting over current protection.
    8. Running overload protection.
    9. Under voltage protection for power voltage.
    10. Overvoltage protection for power voltage.
    11. Protection for fault parameter setting of the soft starter.
    12. Load short circuit protection.
    13. Auto restart or incorrect wiring protection.
    14. Incorrect wiring protection of external control stop terminals.
    Ambient Place to be used Indoor location with good ventilation free from corrosive gas and conductive dust.
    Altitude Below 1000M. It has to increase the soft starter rate power when the altitude is more than 1000M.
    Temperature -30 +55 oC
    Humidity 90%RH without dew condensation.
    Vibration <0.5G
    Structure Enclosure IP 20
    Cooling Natural wind cooling.

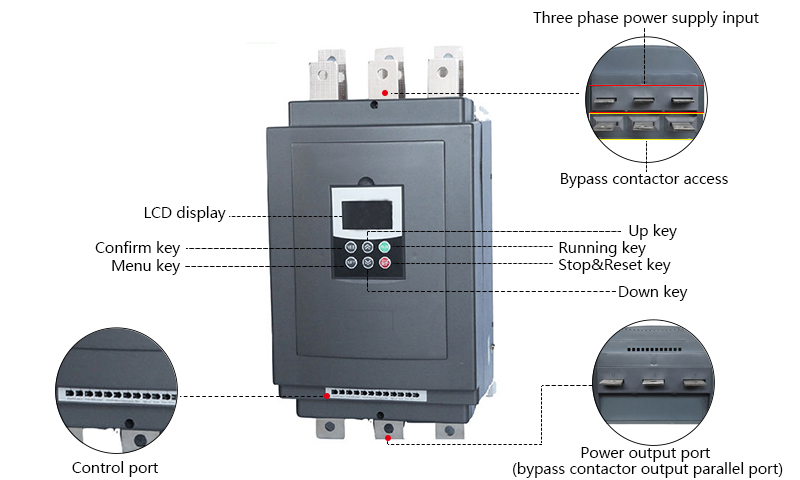

    185KW Soft Starters Details

    Tips: Soft starter starting fault and its handling method part 1

    1. In the start-up process, the soft starter has the occasional jump air switch phenomenon. The causes for the malfunction are:
      Long delay setting value of air switch is too small or air switch selection does not match with the motor. (Air switch parameters are moderately enlarged or the air switch is reselected.)
      The starting voltage parameter is set too high or the starting time is too long. (The initial voltage is appropriately adjusted or the starting time is appropriately shortened according to the load condition.)
      In the process of starting, because fluctuations in the grid voltage are relatively large, it is easy to cause the error commands issued by the soft starter and an early bypass phenomenon. (It is recommended that users do not start high-power motor at the same time.)
      Start at full load. (Minimize the load when starting.)
    2. The soft starter reports fault when starting, the soft starter does not work, the motor does not respond. The causes of the failure may be:
      Default phase of motor. (Check motor and peripheral circuit.)
      Short circuit of SCR of main elements in soft starter. (Check whether the motor and the grid voltage are abnormal Connect with the manufacturers to replace the SCR.)
      Filter board breaks down short circuit. (Replace the filter board.)
    3. In the starting process, the current is instable and the current is too large. The reasons may be:
      Ammeter indication is not accurate or does not match the transformer. (Replace the new ammeter.)
      Grid voltage has instability, fluctuations are relatively large, causing the malfunction of the soft starter. (Connect with the manufacturers to replace the control panel.)
      Soft starter parameter setting is unreasonable. (Retune the parameters.)
    4. The soft starter has repeated start. The causes for the malfunction are:
      During the starting process, the external protective elements move, the contactor cannot be closed, resulting in repeated starting of the soft starter. (Check peripheral components and lines.)

    Soft Starter Works with a Bypass Contactor

    Soft starter works with a bypass contactor saving energy by eliminating thyristor losses during the run. The bypass contactor shunts the current flowing through the soft starter switch circuit to reduce heat accumulation in the soft starter power electronics during motor operation. This provides maximum efficiency and prolongs the life of soft-start switching components because they only work during the start and stop cycles of the motor.

    How to Change the Soft Starter Rated Current

    Existing reviews of 250 hp (185 kW) Soft starter, 370 A, 3ph 220v/380v/480v
    Can the 250hp soft starter perform the task?
    I have a 380 VAC 310 Amp 60 HZ motor I need to run of a generator.
    I need to soft start the motor in order not to trip the generator.
    The motor is on a crusher.
    I am on a tight budget but can you please advise if your 250hp soft starter be able to perform the task?
    From: Joelh | Date: 12/08/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, our 250hp, model: GS-185 soft starter will be able to perform this task.
