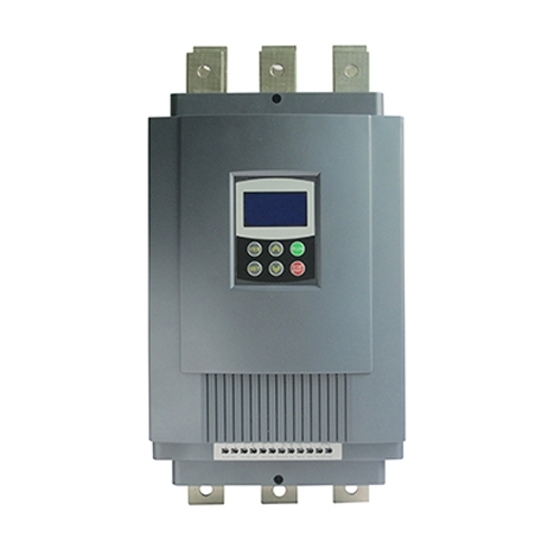

    300 hp (220 kW) Soft starter, 440 A, 3ph 240v/415v/480v

    5 out of 5 based on 2 reviews | Write a review
    Inexpensive 300 hp soft starter, 220 kW three phase 240v, 415v, 480v, 690v soft starter, control AC induction motor in soft start & soft stop, direct sale by manufacturer.
    SKU: GS-220
    30-day Returns
    Free Shipping
    Delivery date: 2-3 days

    300 hp motor soft starter, 220 kW three phase 240v, 415v, 480v, 690v AC motor starter, manufacturer direct sale.

    Model GS2-220 (220v, 240v), GS3-220 (380v, 400v, 415v), GS4-220 (460v, 480v), GS6-220 (575v, 690v).
    Capacity 300 hp (220 kw)
    Current 440 amps at 380v/480v, 900 amps at 220v, 270 amps at 690v
    Weight 21 kgs
    Dimension 525*257*194 mm
    Input Voltage Three-phase 240v, 400v, 480v, 690v AC
    Frequency 50Hz/ 60Hz
    Adaptive Motor Squirrel-cage three-phase asynchronous motor
    Starting Times It is recommended not to exceed 20 times per hour.
    485 Communication DB9 interface, male plug, ① is RS485+, ⑥ is RS485-
    Control Mode
    1. Operation panel control.
    2. Operation panel + external control.
    3. External control.
    4. External control + COM control.
    5. Operation panel + external + COM control.
    6. Operation panel + COM control.
    7. COM control.
    8. No start or stop operation.
    Start Mode
    1. Current-limiting to start.
    2. Voltage ramp to start.
    3. Torque control + current-limiting to start.
    4. Torque control + voltage ramp to start.
    5. Current ramp to start.
    6. Voltage current-limiting double closed-loop start.
    Stop Mode
    1. Soft stop.
    2. Free stop.
    Protective Function
    1. Open loop protection for external instantaneous stop terminals.
    2. Over-heat protection for soft starter.
    3. Protection for too long starting time.
    4. Input open phase protection.
    5. Output open phase protection.
    6. Unbalanced three-phase protection.
    7. Starting over current protection.
    8. Running overload protection.
    9. Under voltage protection for power voltage.
    10. Overvoltage protection for power voltage.
    11. Protection for fault parameter setting of the soft starter.
    12. Load short circuit protection.
    13. Auto restart or incorrect wiring protection.
    14. Incorrect wiring protection of external control stop terminals.
    Ambient Place to be used Indoor location with good ventilation free from corrosive gas and conductive dust.
    Altitude Below 1000M. It has to increase the soft starter rate power when the altitude is more than 1000M.
    Temperature -30 +55 oC
    Humidity 90%RH without dew condensation.
    Vibration <0.5G
    Structure Enclosure IP 20
    Cooling Natural wind cooling.



    220KW Soft Starters Details

    Tips: Notice for soft starter

    1. The installation and maintenance of the soft starter shall be carried out by qualified professional.
    2. Do not use high-voltage test equipment (such as megger) to test the insulation of soft starter.
    3. If the motor is required to run reversibly, an inverting contactor can be installed on the incoming line side. Be careful not to install it on the output side of soft starter.
    4. The coil-type motor rotor can be winded with appropriate starter resistance to improve the starting torque, the soft starter can also be used to start the coil-type motor. When the motor reaches the top speed and keeps stable, starting resistance shall be bypassed to reduce power loss.
    5. It is strictly forbidden to place the power factor compensation capacitor on the output side of the soft starter and the capacitor cannot be switched during start-up.

    Soft Starter Works with a Bypass Contactor

    Soft starter works with a bypass contactor saving energy by eliminating thyristor losses during the run. The bypass contactor shunts the current flowing through the soft starter switch circuit to reduce heat accumulation in the soft starter power electronics during motor operation. This provides maximum efficiency and prolongs the life of soft-start switching components because they only work during the start and stop cycles of the motor.

    How to Change the Soft Starter Rated Current

    Existing reviews of 300 hp (220 kW) Soft starter, 440 A, 3ph 240v/415v/480v
    Soft starter is not in remote or at the terminals
    We have a soft-starter that works in local or key-pad, but not in remote or at the  terminals.
    From: rabbie | Date: 07/04/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The soft starter you bought is not configured with RS485 communication. So if you want to achieve remote control start, you can only use external cables and control switches for start / stop control.
    Please refer to our demo video about terminal controlled soft start, see on:
    Working height of 300hp soft starter
    Will the GS4-220 work with a 250 HP 285 amp/ 480 volt well-pump at 1500 meters elevation?
    From: Billie | Date: 26/07/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, the 300hp soft starter can work on that long height with that 285 amp/ 480 volt well-pump, no problem.
