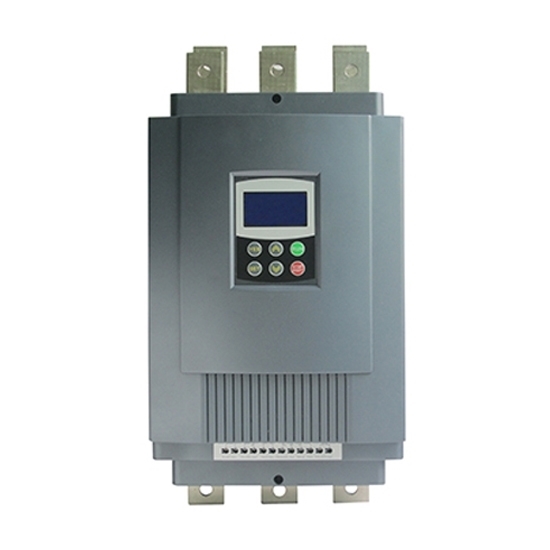

    200 hp (150 kW) Soft starter, 300 A, 3ph 240v/400v/480v

    5 out of 5 based on 2 reviews | Write a review
    $1,379.53
    Low price 200 hp soft starter, 150 kW 3 phase 240v, 400v, 480v, 690v motor starter, control AC induction motor in soft start & soft stop, buy from China manufacturer directly.
    SKU: GS-150
    30-day Returns
    Free Shipping
    Delivery date: 2-3 days

    200 hp soft starter, 150 kW three phase 240v, 400v, 480v, 690v AC motor starter.

    Model GS2-150 (220v, 240v), GS3-150 (380v, 400v, 415v), GS4-150 (460v, 480v), GS6-150 (575v, 690v).
    Capacity 200 hp (150 kw)
    Current 300 amps at 380v/480v, 600 amps at 220v
    Weight 21 kgs
    Dimension 525*257*194 mm
    Input Voltage Three-phase 220v, 420v, 480v, 690v AC
    Frequency 50Hz/ 60Hz
    Adaptive Motor Squirrel-cage three-phase asynchronous motor
    Starting Times It is recommended not to exceed 20 times per hour.
    485 Communication DB9 interface, male plug, ① is RS485+, ⑥ is RS485-
    Control Mode
    1. Operation panel control.
    2. Operation panel + external control.
    3. External control.
    4. External control + COM control.
    5. Operation panel + external + COM control.
    6. Operation panel + COM control.
    7. COM control.
    8. No start or stop operation.
    Start Mode
    1. Current-limiting to start.
    2. Voltage ramp to start.
    3. Torque control + current-limiting to start.
    4. Torque control + voltage ramp to start.
    5. Current ramp to start.
    6. Voltage current-limiting double closed-loop start.
    Stop Mode
    1. Soft stop.
    2. Free stop.
    Protective Function
    1. Open loop protection for external instantaneous stop terminals.
    2. Over-heat protection for soft starter.
    3. Protection for too long starting time.
    4. Input open phase protection.
    5. Output open phase protection.
    6. Unbalanced three-phase protection.
    7. Starting over current protection.
    8. Running overload protection.
    9. Under voltage protection for power voltage.
    10. Overvoltage protection for power voltage.
    11. Protection for fault parameter setting of the soft starter.
    12. Load short circuit protection.
    13. Auto restart or incorrect wiring protection.
    14. Incorrect wiring protection of external control stop terminals.
    Ambient Place to be used Indoor location with good ventilation free from corrosive gas and conductive dust.
    Altitude Below 1000M. It has to increase the soft starter rate power when the altitude is more than 1000M.
    Temperature -30 +55 oC
    Humidity 90%RH without dew condensation.
    Vibration <0.5G
    Structure Enclosure IP 20
    Cooling Natural wind cooling.



    Details

    150KW Soft Starters Details

    Tips: Soft starter features

    1. Starting mode: According to the features of the load, selecting the different starting modes and parameter settings can make the motor to realize the starting effect in the maximum degree. Three starting modes: Voltage ramp starting - be able to get the maximum output torque, current-limiting starting - be able to effectively limit the starting current and inching - be able achieve the commissioning debugging function.
    2. High-tech performance: The use of high-performance microprocessors and powerful software support function simplifies the control circuit, there is no need of adjusting the circuit parameters, the consistent, accurate and fast execution speed and high-intensity anti-jamming function can be obtained.
    3. High reliability: All electrical apparatus elements of the soft starters of the motors are rigorously screened, the main control board must go through 72 hours of high temperature cycle test and vibration test, thus ensuring the high reliability of the outgoing products.
    4. Optimized structure: A unique compact modular structure and the upper incoming line and the lower outgoing line are very convenient for integration and complete sets of the users.
    5. Keyboard settings function: Soft starter has a convenient and intuitive operation display keyboard, and can set and modify the starting and stopping, running, protection and other parameters according to different loads.

    Soft Starter Works with a Bypass Contactor

    Soft starter works with a bypass contactor saving energy by eliminating thyristor losses during the run. The bypass contactor shunts the current flowing through the soft starter switch circuit to reduce heat accumulation in the soft starter power electronics during motor operation. This provides maximum efficiency and prolongs the life of soft-start switching components because they only work during the start and stop cycles of the motor.

    How to Change the Soft Starter Rated Current

    Existing reviews of 200 hp (150 kW) Soft starter, 300 A, 3ph 240v/400v/480v
    Baud rate
    What baud rate do you want to set? It would be 19200 on the baud rate
    Thank You
    From: Mattew | Date: 06/11/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Unfortunately, the soft-start baud rate can only use 9600.
    This baud rate is fixed by the communication protocol and does Not support modification.
    Great soft starter, great rating
    This soft starter is really a good choice and I have enjoyed a  great shopping experience. I like the size and the quality. It exactly helps me a lot and the operation is smooth. If you want a soft starter, I suggest you get this very much.
    From: Woody | Date: 15/03/2022
    Was this review helpful? Yes No (0/0)
