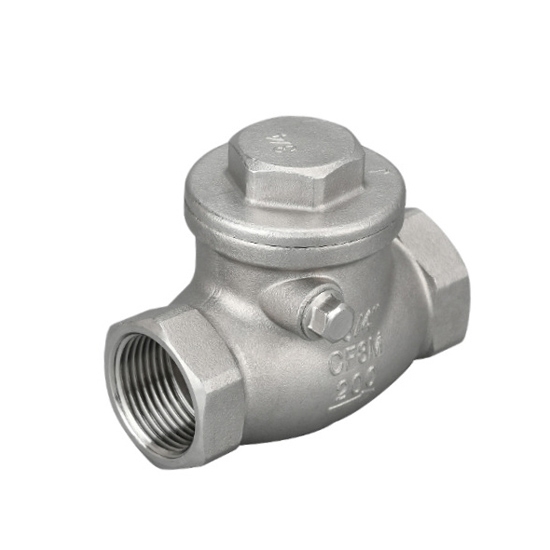

    3/4" Stainless Steel Swing Check Valve, Horizontal

    Low cost 3/4" (DN20) stainless steel swing check valve provides 200 WOG working pressure, 304/316 materials and BSP/BSPT/NPT thread. Horizontal check valve, durable and low maintenance, used for piping system to prevent backflow of water, oil and gas.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Buy a 3/4 inch (DN20) stainless steel swing check valve for regulating the flow of fluid or gas in pipelines. 200 WOG swing check valve with optional BSP/BSPT/NPT thread, 304/316 material can withstand high temperatures and high pressure.


    • Model: ATO-H14W
    • Check Valve Type: Swing
    • Shape: Horizontal
    • Nominal Diameter: 3/4 inch (20mm)
    • Working Pressure: 200 WOG
    • Product Material: 304/316 Stainless Steel
    • Connection Form: Thread
    • Thread Standard: BSP, BSPT, NPT
    • Temperature Range: -20°C~300°C
    • Weight: 0.34kg
    • Applicable Medium: Water, Oil, Gas, Nitric Acid, Acetic Acid


    Swing check valve dimension

    Main Part Materials
    NO. Part Name Materials QTY
    1 BODY CF8/CF8M 1
    2 DISC CF8/CF8M 1
    3 HANGGER PIN SS304/SS316 1
    5 CAP CF8/CF8M 1
    Dimension (Unit: mm)
    DN D L±1.5 H
    20 20 75 45


    A stainless steel swing check valve is a type of valve used to regulate the flow of fluids or gases in a pipeline. It is commonly used in applications where backflow prevention is necessary, such as in wastewater treatment plants, oil and gas refineries, and chemical processing facilities.

    Swing check valve applications

    Tips: How does a stainless steel swing check valve work?

    A stainless steel swing check valve works by using a hinged disc or flap to prevent the backflow of fluids or gases in a piping system. The valve is installed in the pipeline and allows fluid or gas to flow in one direction while preventing it from flowing back in the opposite direction.

    When fluid or gas flows in the forward direction, the pressure of the fluid pushes the disc away from the valve seat, allowing the fluid to pass through the valve. As the fluid flow stops, the weight of the disc and gravity causes it to swing back into the valve seat, closing the valve and preventing backflow.

    If the fluid or gas tries to flow in the opposite direction, the pressure of the fluid or gas will push the disc against the valve seat, creating a seal and preventing backflow. As the fluid or gas flow direction changes again, the disc will swing open once again and allow the flow to continue in the forward direction.

    The valve operates automatically without the need for external power, and it is designed to operate with minimal pressure drop to maintain the efficiency of the piping system. Stainless steel swing check valves are commonly used in various industrial applications that require the prevention of backflow, including oil and gas, chemical, water treatment and HVAC.
