    3.5kW Air Cooled Spindle Motor for CNC Router

    5 out of 5 based on 1 reviews | Write a review
    $557.69

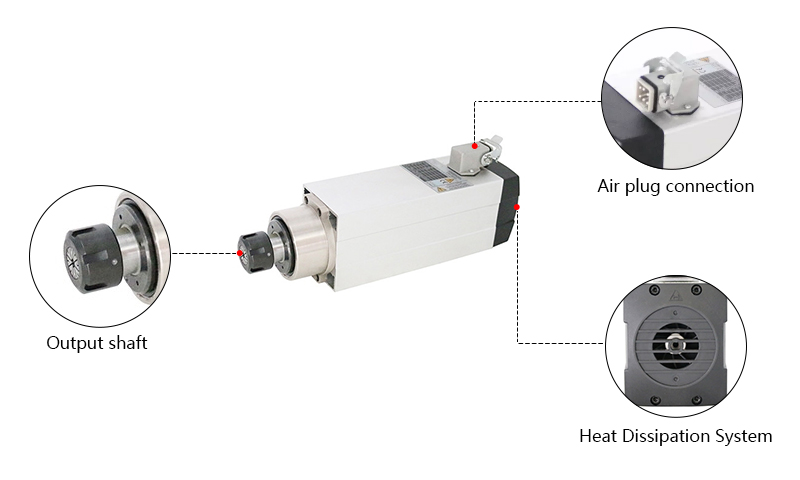

    3.5kW air cooled spindle motor with ER25 collet for CNC router, it features high speed of 18000rpm and low noise, 1.68Nm torque, three phase, operates at 380V/220V 300Hz, long service life and strict quality control.
    SKU: ATO-SPINDLE-3500A
    *
    Free Shipping Worldwide
    Delivery date: 10-20 days

    Features:

    • Cooling: Air cooling, Power: 3.5kW, Torque: 1.68Nm, Collet: ER25
    • Voltage: 380V/220V AC at 300Hz, cooled spindle motor speed: 1-18000 R/min
    • Fast response, strong overload capacity, low noise and high mechanical precision.
    • High quality 4pcs bearings (7008Cx2 + 7002Cx2), runout off less than 0.01mm, tapered bore less than 0.005mm.
    • P4 grade ceramic ball bearings used as spindle bearing, which improves the service life under high speed revolution.
    • Tight sealing and two-layer dustproof design.

    Applications:

    This series air-cooled electric spindle motors are applicable to CNC engraving machines and used for high speed profiling, drilling, cutting, engraving and groove milling of wood, plastics, aluminum, rubber and other materials.

    3.5kW Air Cooled Spindle Motor Specification

    Model STF47-82-3.5
    Power 3.5kW
    Phase Three phase
    Speed 18000rpm
    Voltage 3-phase 380V±10% AC 3-phase 220V±10% AC
    Current 7.2A 12.1A
    Frequency 300Hz
    Torque 1.68Nm
    Cooling Type Air-cooled
    Lubrication Grease
    Thermal Class Class F
    Protection Class IP50
    Certification CCC, CE, RoHS, UL, VDE
    Warranty Bearings for half a year, other parts for one year
    Joint of Nose ER25 (φ3.175-φ16)
    Bearings Type 7008C P4*2 & 7002C P4*2
    Application Woodworking & Plastic
    Weight 8.5kg

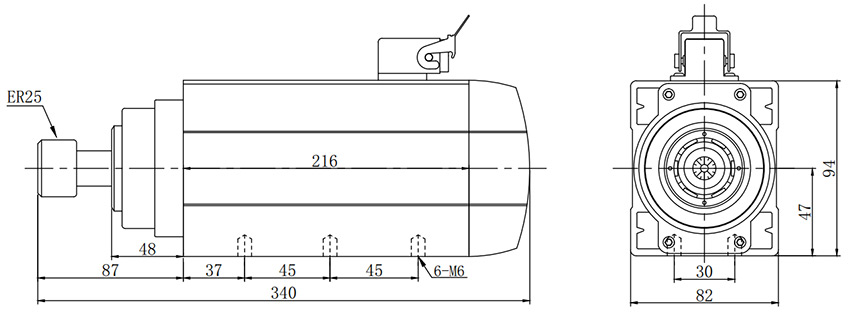

    3.5kW Air Cooled Spindle Motor Dimension (Unit=mm)

    3.5kw spindle motor dimension

    TIPS:

    The spindle motor of woodworking engraving machine is an important component of woodworking engraving machine. The advantages and disadvantages of the spindle motor directly affect the processing speed and accuracy of the engraving machine. How to select high-quality spindle motor is very important. ATO summarizes the main points of woodworking engraving machine spindle selection for the reference of users:

    1. If we pursue the efficiency of woodworking engraving machine, we should not only have a high speed, but also a large amount of knives. For example, when processing solid wood, we need a spindle motor with a power of more than 3KW.

    2. Whether the spindle motor of woodworking engraving machine adopts high-precision bearings or not, if it does not use high-precision bearings, the performance is that the spindle motor overheated after long-term high-speed rotation, which affects the service life of the spindle motor.

    3. Whether the spindle of woodworking engraving machine rotates at different speeds, especially at high speeds, the sound is uniform and harmonious.

    4. Whether the radial force of the principal axis of woodworking engraving machine is applied. The main reference is whether the material with hard texture can be cut at high speed. Some spindle motors can only cut hard materials at very low speed, otherwise the performance of the motor will be seriously lost, which will affect the accuracy of the spindle after a period of time, or even cause faults.

    Safety Tips for Using ATO CNC Spindle Motors

    1. The electric spindle motor and VFD shall be suitable with each other. The specifications and parameter settings of the VFD shall match the nominal parameters of the spindle motor, and it will burn the spindle motor if the settings are not correct.

    2. Before using water-cooled spindle motor, it shall ensure that cooling cycle system works normally and the running under no cooling conditions is prohibited. The volume of cooling water is calculated as per 1 liter/minute, the minimum flow of cooling water is not less than 5 liter/minute, cooling water pipe and the nozzle shall be connected reliably and there is no leakage.

    3. The cooling liquid shall be clean and free of grease and the temperature shall be within 5-30℃. The cooling medium shall carry out force cooling when the ambient temperature is higher than 30℃. The precision lathe requires the cooling liquid with a constant temperature of 20 +/-2℃.

    4. During storage and transport of the spindle motor, the status of high-speed grease inside the bearing will change. The user shall run it at a low speed first by starting from the lowest speed of the spindle motor for 30 minutes and then 20 minutes for every 3000 rounds. Otherwise there will have abnormal sound, noise, heat and other phenomena, which will affect the bearing life if the spindle motor is started directly at a high speed. During long term storage, the spindle motor shall run (at low speed) for 15-30 minutes once a week at last.

    5. Collet, nut and inner taper hole shall be washed clean when installing blades on the spindle motor in order to avoid any impact on the precision. The blade handle shall be inserted into the collet more than 15mm.

    6. For daily machining, the spindle motor shall be warmed up, run for 15-20 minutes when the machining speed is reached and then performs precise machining. It is better to stop the spindle motor for two hours every day in order to recover its mechanical fatigue and prolong its life time.

    7. No knocking the end cover of the spindle motor. No hammering the collet and blade head when removing blades. No shocking or colliding during transport, storage and using, especially the end of the spindle motor.

    8. The spindle motor shall run in designated direction.

    9. The spindle motor shall be installed and fixed according to the relevant drawings and instructions.

    10. The temperature shall be within 22-25℃ if water cooling machine is used.

    11. The spindle motor adopts vapor lock and the gas source shall not be used until it has passed oil-water separator and dry filter. The air pressure is 0.2-0.25Mpa and the filtering precision is 5μm, otherwise there will cause damages to the bearing.

    Existing reviews of 3.5kW Air Cooled Spindle Motor for CNC Router
    Nice spindle motor
    Very smooth, nicely machined and professional looking. Running at about 3600 RPM, this air cooled spindle motor is quieter than the pond pump that circulates the coolant. It is very quiet, to the point where you can barely hear it.
    From: Graeme Rand | Date: 05/01/2020
