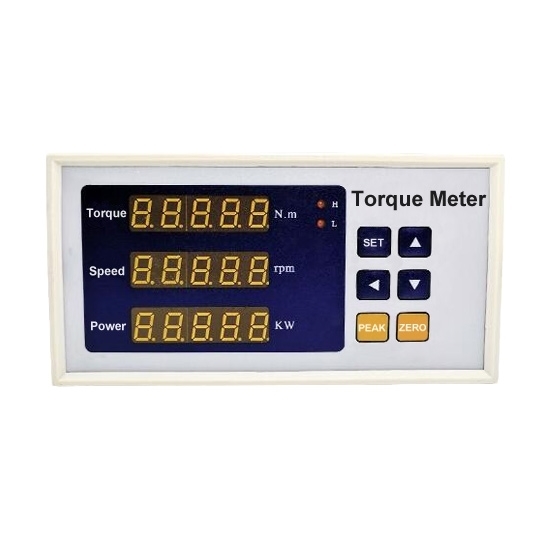

Digital Torque Meter for Dynamic Torque/Speed/Power, 5 digit
Picture of Digital Torque Meter for Dynamic Torque/Speed/Power, 5 digit
Picture of Digital Torque Meter for Dynamic Torque/Speed/Power, 5 digit

Digital Torque Meter for Dynamic Torque/Speed/Power, 5 digit

5 out of 5 based on 1 reviews | Write a review
$489.98
Digital torque meter with 3-channel 5 digit LED can real-time display dynamic torque, speed and power value. The measuring range of torque can be -99999~99999 Nm (display value is 0~99999 Nm). Digital panel meter for rotary torque sensor has power supply AC 220V, measuring speed 25 times/s, output analog signal 4-20mA, optional communication output RS485/RS232, optional external power supply DC 15V/24V.
*
*
*
SKU: ATO-DPM-RTS5D
30-day Returns
Free Shipping
Delivery date: 6-12 days

Digital torque meter can be used for measuring dynamic torque, speed and power at the same time, has functions such as zero tracking, low/high alarm and peak value display.

Specification:

Basics Model ATO-DYN-302
Dimension 160*80*170mm horizontal, hole size 152*76mm
Shipping weight 2 kg
Technical parameters Display Measuring range of torque: -99999~99999 Nm
Display value of torque: 0~99999 Nm
Display value of speed: 0~99999 rpm
Display value of power: 0~99999 kW
Measuring resolution Meter resolution: 1/1000000, display resolution: 1/120000
Measuring speed 25 times/second
Display method 3-channel 5 digit LED display
Meter power supply 220VAC, 50/60Hz
Input signal Various pulse signal: NPN, PNP, OC gate output signal of sensors, proximity sensors, rotary encoders
Measuring frequency Input pulse of torque: 5kHz~15kHz
Input pulse of speed: 0.3Hz~20kHz
Alarm Three alarm outputs for L/H alarm
Analog signal output 2-channel DC 4-20mA output signals (resolution: 1/4000, error: ＜0.2%FS, load capacity: ≤600Ω, optical isolation)
Communication output* RS485 or RS232 (optical isolation)
External power supply * ±15VDC or 24VDC (≥300mA, provide power supply for torque sensor)
Working environment Temperature: -10~+70℃ (14~158℉), humidity: 0~90%RH (no condensation)

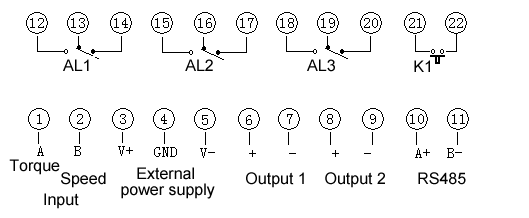

Wiring diagram:
Digital torque meter for dynamic torque/speed/power wiring diagram

Existing reviews of Digital Torque Meter for Dynamic Torque/Speed/Power, 5 digit
Digital torque meters are a good choice
This digital torque meter has high precision and is easy to use. It is more convenient to test than a mechanical wrench, and more affordable than a digital wrench. It is a good choice for measuring torque.
From: Peggya | Date: 02/12/2021
Was this review helpful? Yes No (0/0)
Write your review for Digital Torque Meter for Dynamic Torque/Speed/Power, 5 digit
  • Only registered users can write reviews
  • Bad
  • Excellent
Related products
Rotary Torque Sensor, Non-Contact, Shaft to Shaft, 0.05-300000 Nm

Rotary Torque Sensor, Non-Contact, Shaft to Shaft, 0.05-300000 Nm

$1,015.34
SKU: ATO-TQS-D01
Rotary torque sensor is a non-contact torque sensor with two shafts and shaft keys, a male plug and a mounting base. Shaft torque sensors have a capacity range from 10 Nm/50 Nm/2000 Nm/10000 Nm to 300000 Nm. It can be applied to torque/rotary speed/power measurement of AC/DC motor, gear motor and diesel generator for a long-term.
Quick View
Micro Rotary Torque Sensor for Dynamic Torque Measurement, 0.1-5 Nm

Micro Rotary Torque Sensor for Dynamic Torque Measurement, 0.1-5 Nm

$914.02
SKU: ATO-TQS-D02
Rotary torque sensor is a strain gauge sensor for dynamic micro torque measurement. It has two shafts, a 5 pin male plug and no mounting base. Micro torque sensors have a capacity range from 0.1 Nm/0.2 Nm/0.3 Nm/0.5 Nm/1 Nm/3 Nm to 5 Nm. Rotary torque transducer can measure both forward and reverse torque.
Quick View
Digital Rotary Torque Sensor, 0.1/5/300/1000 Nm to 10000 Nm

Digital Rotary Torque Sensor, 0.1/5/300/1000 Nm to 10000 Nm

$939.15
SKU: ATO-TQS-D03
Digital rotary torque sensor with LCD display has the capacity range from 0.1 Nm/0.3 Nm/1 Nm/5 Nm/10 Nm/300 Nm/1000 Nm to 10000 Nm. LCD display can show torque, speed and power value at the same time. Dynamic torque sensor adopts two NSK shafts to ensure starting torque as low as 0.00001 Nm. Rotary torque transducer with 7 pin waterproof circular connector and 3m cable can measure both forward and reverse torque, and then output ±5V/0-10V/4-20mA/RS485 torque signal to PLC.
Quick View
5 Digit Display Controller for Load Cells

5 Digit Display Controller for Load Cells

$210.80
SKU: ATO-DPM-LC5D
Digital panel meter can cooperate with load cells, force sensors and weighing sensors, two outputs for data comparison, digital panel meter can display gross, net, peak and valley value alternately.
Quick View
Customers who bought this item also bought
Rotary Torque Sensor, Non-Contact, Shaft to Shaft, 0.05-300000 Nm

Rotary Torque Sensor, Non-Contact, Shaft to Shaft, 0.05-300000 Nm

$1,015.34
SKU: ATO-TQS-D01
Rotary torque sensor is a non-contact torque sensor with two shafts and shaft keys, a male plug and a mounting base. Shaft torque sensors have a capacity range from 10 Nm/50 Nm/2000 Nm/10000 Nm to 300000 Nm. It can be applied to torque/rotary speed/power measurement of AC/DC motor, gear motor and diesel generator for a long-term.
Quick View
Digital Rotary Torque Sensor, 0.1/5/300/1000 Nm to 10000 Nm

Digital Rotary Torque Sensor, 0.1/5/300/1000 Nm to 10000 Nm

$939.15
SKU: ATO-TQS-D03
Digital rotary torque sensor with LCD display has the capacity range from 0.1 Nm/0.3 Nm/1 Nm/5 Nm/10 Nm/300 Nm/1000 Nm to 10000 Nm. LCD display can show torque, speed and power value at the same time. Dynamic torque sensor adopts two NSK shafts to ensure starting torque as low as 0.00001 Nm. Rotary torque transducer with 7 pin waterproof circular connector and 3m cable can measure both forward and reverse torque, and then output ±5V/0-10V/4-20mA/RS485 torque signal to PLC.
Quick View

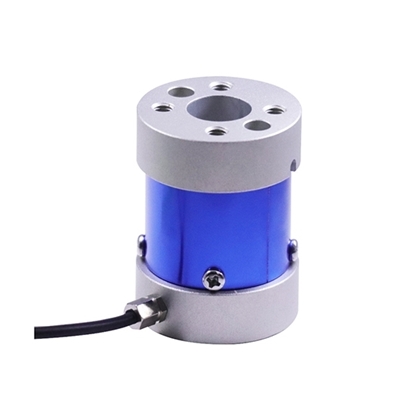

Micro Reaction Torque Sensor for Static Torque, 0.5-150 Nm
