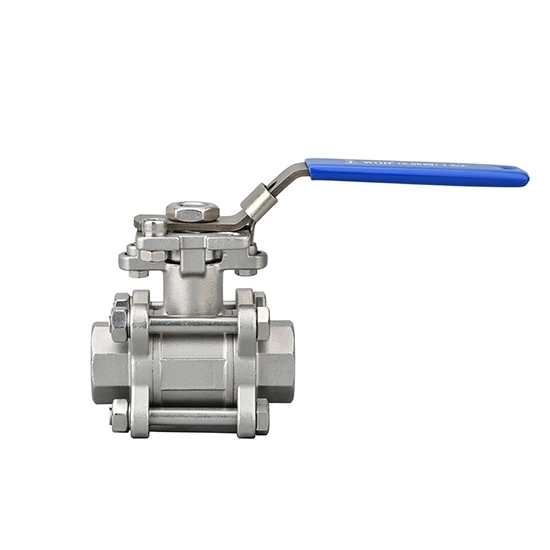

3-PC Stainless Steel Ball Valve, Full Port, 1000WOG

$35.75

Favorable price 3PC platform ball valve, stainless steel 304/316, NPT thread standard. Investment casting body, full port and blow-out proof stem, brand new direct sale by manufacturer.

Material *
Port Size *
Thread *

SKU: ATOWB-09

This product has a minimum quantity of 3

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Proposition 65 Warning

3PC Platform Ball Valve Features

1000PSI/PN64.
Full port, blow-out proof stem, Investment casting body.
Higher strength and more corrosion resistant.
Three-piece full port ball valve is made of stainless steel 304/316.
Suitable medium: water, oil, air and some corrosive liquids.

3PC Platform Ball Valve Specifications

Model	ATOWB-09
Thread standard	NPT (Optional: BSPT, DIN259, DIN2999, ISO228, CLASS A)
Max pressure	6.4MPa
Temperature range	-20℃-+232℃
Suitable medium	water, oil, air and some corrosive liquids
Blow-out proof stem/ full port
Investment casting body
1000PSI (PN64) W.O.G
Material standard	S45C/ASTM A216Gr-WCB/DIN1.00619
	SS316/ASTM A351Gr-CF8M/DIN1.4408
	SS304/ASTM A351Gr-CF8/DIN1.4308

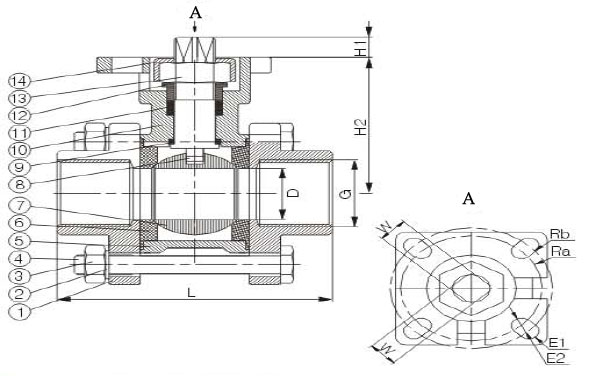

3PC Platform Ball Valve Main Parts and Materials

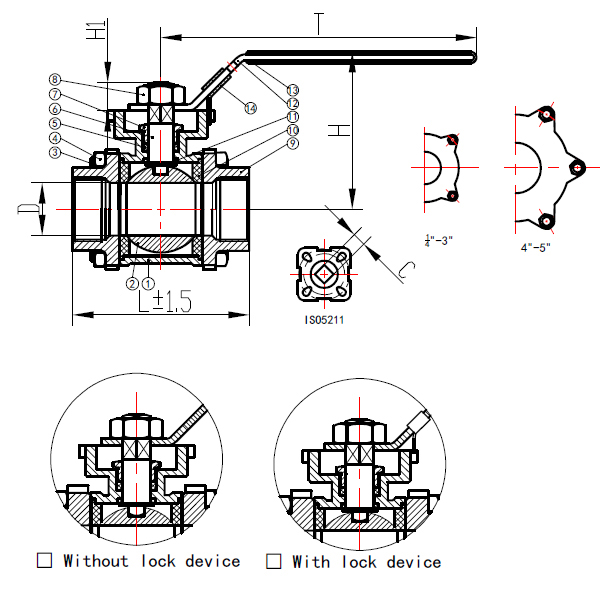

3 pc stainless steel ball valve dimension

1	Body	CF8M/CF8
2	Ball	S304/S316
3	Bolt	SS304
4	Nut	SS304
5	Packing	PTFE/RPTFE
6	Stem	SS304/SS316
7	Gland	SS304
8	Nut	SS304
9	Cap	CF8/CF8M
10	Seat	PTFE/RPTFE
11	Thrust Washer	PTFE/RPTFE
12	Handle	S201
13	Handle Cover	PVC
14	Lock	S201

3PC Platform Ball Valve Main Outer Size

Size	1/2"	3/4"	1"	1-1/4"	1-1/2"	2"	2-1/2"	3"	4"
DN (mm)	15	20	25	32	40	50	65	80	100
DN (mm)	15	20	25	32	40	50	65	80	100
L±1.5 (mm)	65	74	84	98	112	125	185	205	240
H (mm)	63	74	90	90	116	116	143	153	167
T (mm)	131	131	167	167	194	194	244	263	285
C (mm)	9	9	11	11	14	14	17	17	17
Nm	3.5	6	6	7.5	18	28	32	38	80
IS05211	F03/F04	F03/F04	F04/F05	F04/F05	F05/F07	F05/F07	F07/F10	F07/F10	F07/F10
Kg	0.675	0.795	1.205	1.555	2.205	2.875	5.708	8.255	13.465
