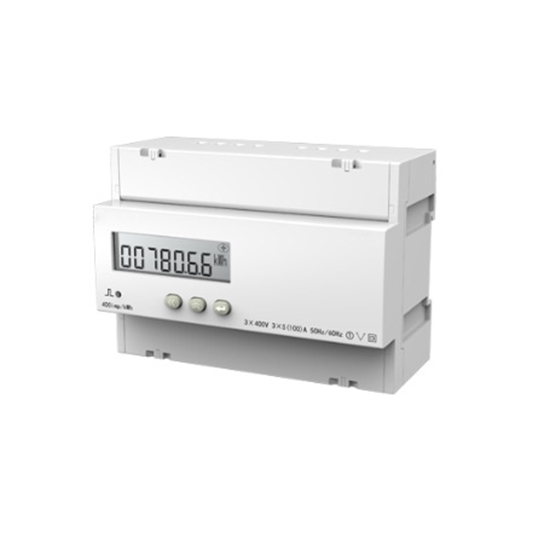

    DIN Rail Mounted 3 Phase LCD Display Digital Energy Meter

    5 out of 5 based on 1 reviews | Write a review
    35mm DIN-rail mounted digital energy meter is three phase 3-wire with 3x400V voltage, direct input current up to 100A, class 1 accuracy, LCD display, Modbus-RTU protocol communication RS485 port.
    SKU: ATO-DEM-002
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Digital Electric Energy Meter Features

    • 3 phase 3 wire 3x400V AC
    • Class 1 accuracy for active energy
    • 5(100)A direct input currnt or 1.5(6)A via CT access
    • 1 active energy pulse output
    • RS485 communication interface, support Modbus-RTU protocol
    • Voltage/Current/Active power/Power factor/Frequency measurement
    • Compact design, DIN rail mounting

    Digital Electric Energy Meter Description

    Model ATODSS1946
    Accuracy Grade Grade-1 accuracy for active energy
    Phase Three phase (3 wire)
    Rated Voltage 3x400V AC
    Current Input Direct input: 5(100)A / Via CT input: 1.5(6)A
    Frequency 50/60Hz
    Display Mode LCD display
    Display Digits 7
    Energy Pulse 1 active energy pulse output, pulse width (80±20%) ms
    Measurement Range Voltage/Current/Active power/Power factor/Frequency
    RS485 Communication Interface Modbus-RTU protocol, baud rate up to 9600bps
    IP Protection IP54 (panel) /IP20 (case)
    Certificate CE/ ISO/ MID
    Warranty Period 12 months
    Dimension 126*66*90mm
    Weight 2.5kg
    Installation Din rail 35mm
    Work Temperature -10℃~55℃
    Storage Temperature -25℃~70℃

    Digital Electric Energy Meter Dimension


    3 phase DIN rail digital energy meter dimension

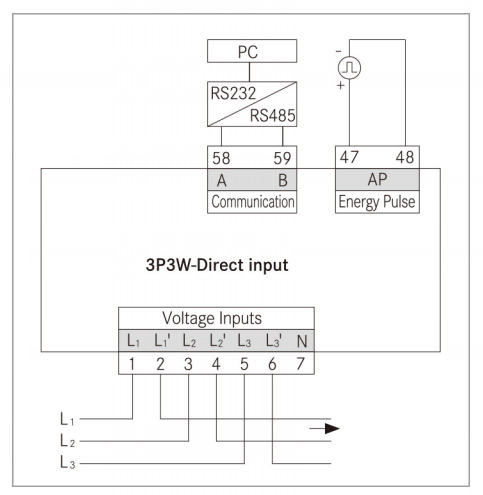

    Digital Electric Energy Meter Wiring

    3 phase 3 wire direct input energy meter wiring

    Tips: Features of DIN rail mounted energy meter

    1. The DIN rail mounted energy meter is a minitype energy meter of a new generation. It is used for 380V/220V terminal illuminating system. It adopts the standard DIN 35mm DIN-rail installation, structure modularization design, with its width just matching the miniature circuit breaker, thus being convenient for being installed in the illumination box.

    2. The energy meter adopts an LCD display to measure electrical energy and other electrical parameters. It can set parameters such as clock and rate period, and has the function of power pulse output. The RS485 communication interface can be used to exchange data with the host computer.

    3. The DIN-rail mounted energy meter has the advantages of small size, high accuracy, good reliability and convenient installation. Its performance index conforms to the various technical requirements of the national standard GB/T17215, GB/T17883 and power industrial standard DL/T614 to the energy meter, thus being suitable for the subentry measuring of the governmental organizations and large-scale public constructions to the power, and the power management and assessment in enterprises and public institutions.
