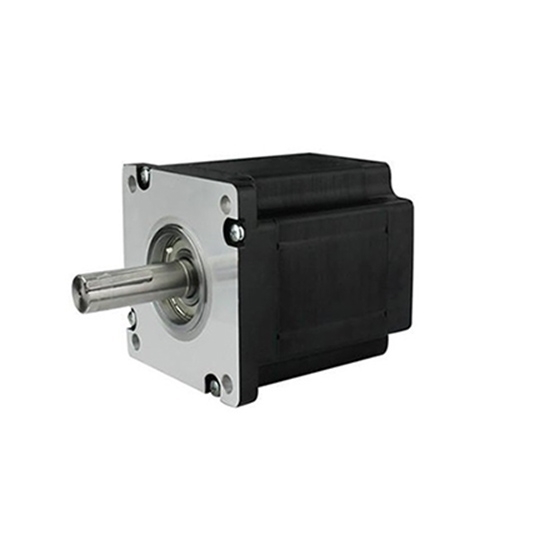

3 phase Nema 42 Stepper motor, 5A, 1.2 degree, 6 wires

5 out of 5 based on 2 reviews | Write a review
$292.62
The Nema 42 stepper motor is a professional and high precision stepper motor with 1.2 deg. step angle, 3 phase 6 wires, high holding torque of 22Nm, direct sale by manufacturer.
*
*
SKU: ATO-STEP-31504205
30-day Returns
Free Shipping
Delivery date: 6-12 days

The Nema 42 stepper motor with 1.2 degree step angle, 3 phase 6 wires, high holding torque of 22Nm, manufacturer direct sale.

Specifications

Basics Model ATO3150-5006A
Matched the Driver Model ATODSP86 (Click it to see more info)
Step Angle 1.2°
Length 150mm
Weight 8.5kg
Current 5A
Resistance 1.2Ω
Holding Torque 22Nm
Motor Leads 6
Rotor Inertia 11000g-cm2
Technical parameters Step Angle Accuracy ±5% (full step, no load)
Resistance Accuracy ±10%
Inductance Accuracy ±20%
Temperature Rise 80℃Max. (rated current, 2 phase on)
Ambient Temperature -10℃~+50℃
Insulation Resistance 100MΩ Min. 500VDC
Dielectric Strength 1Min. 500VAC·5mA
Shaft Radial Play 0.06Max. 450g
Shaft Axial Play 0.08Max. 450g

 Dimension
Nema 42 3 phase demension
Wiring Diagram
Nema 42 wiring diagramnema 42 3 phase connection
Tips: Solutions to the power interference of stepper motor

At many occasions, due to the high current and voltage of the stepper motor, e.g.: For some stepper motor, the maximum current: 8A and voltage: 325V, and magnetic shielding of its shell is not implemented with aluminum alloy shell, the interference in high-sensitive receiver system is caused, so that it cannot work normally and power interference is also caused. Especially the frequency is high, normal communication cannot be realized on SCM and upper computer of the control system. If serious, SCM will be halted, then the difficulty will be brought to the normal use. Therefore, the interference should be solved.
Solutions to power interference of stepper motor are as below:

  1. Install power filter to reduce the contamination of AC power.
  2. Reduce the the external interference in power line with the shielded line or the interference of power line in external world.
  3. Based on the principle of "single-point-earthing", earth the grounding of power filter and stepper driver PE (the baseboard of driver and chassis should be insulated.), control pulse and direction pulse DIR-outgoing lines of short circuit, motor earthing line, cable protecting cover between driver and motor and shielded wire of driver to the earthing rod on wall of chassis, and good contact should be realized.
  4. Lengthen the distance between control line, power line (L and N) and motor drive line (U, V and W) to avoid crossing, e.g. when dealing with the driver installation site of two drivers of the same chassis in the double-shaft system, put the nameplate of one driver forward and that of the other backward, and shorten the leads as far as possible when making structural arrangement.
Existing reviews of 3 phase Nema 42 Stepper motor, 5A, 1.2 degree, 6 wires
Nema 42 stepper motor is as described
Nema 42 stepper motor is as described. It functions well overall, pin connections were good, no visible scratches or dents. I will recommend this nema 42 stepper motor to my friends.
From: Drosy | Date: 16/08/2022
Was this review helpful? Yes No (0/0)
Connection mode of three phase stepper motor
How the three phase internal winding of the stepper motor are connected together?
From: Mommy | Date: 21/04/2021
Was this review helpful? Yes No (0/0)
ATO Responded
The internal winding of three phase stepper motor is star connection.
