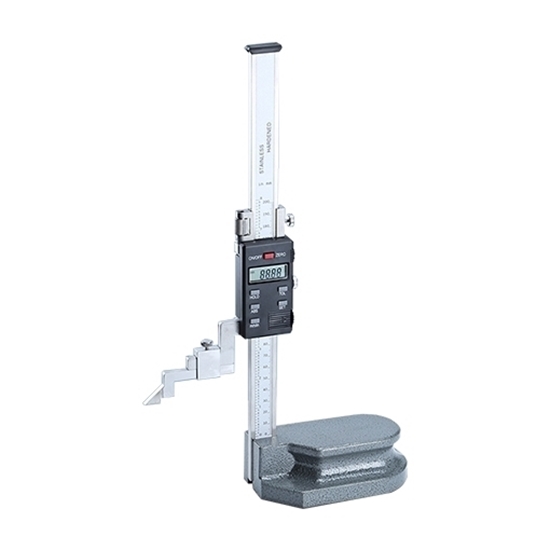

    Digital Height Gauge, 0-300mm, 0.01mm

    $524.15
    The provided digital height gauge with a measuring range of 0-300mm, resolution of 0.01mm. The 300mm electronic digital height gauge is designed with a heavy stainless steel base on the standing feet so it would more stable.
    SKU: ATO-DHG-300
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Lower cost digital vernier height gauge for sale online with measuring range from 0mm to 300mm. The akes of 300mm height gauge with a reset button for zeroing for relative measuring, which can be used to set the height of saw blades in woodwork.

    Specification

    Model: ATO-DHG-300
    Range: 0-300mm
    Voltage: 1.5V

    Resolution: 0.01mm
    Error: ±0.04mm
    Responding Speed: 1 m/s

    Body Material: 4CR13 stainless steel
    Battery Type: 1.5 button battery
    Weight: 26kg

    Dimension (mm)

    Dimension of digital height gauge

    Details

    Digital Height Gauge Details

    Application

    ATO digital height gauges are also called height gauges. As the name suggests, its main purpose is to measure the height of workpieces, and it is also often used to measure shape and position tolerances, and sometimes to mark lines. Digital height gauges are mainly used in the automotive industry, manufacturing, science, and research industries.

    Application of digital height gauge

    Tips: Precautions for using a digital height gauge

    • Before using the height gauge, be sure to wipe its surface with a dry cloth. It will be better if you have cleaning oil around you for wiping;
    • It is advisable to use the ambient temperature of the height gauge between 5-40°C;
    • When using the height gauge to measure, you need to set the measurement point first, and you cannot change it at will;
    • The measuring claws of the height gauge are relatively sharp, and the user needs to pay special attention not to be injured by them;
    • The height gauge cannot apply voltage, otherwise, it will affect its internal circuit;
    • When using the height gauge, it can be used in conjunction with the marking claw, so that the measured workpiece can be well parallel to the plane, so as to ensure that the measurement error of the workpiece is minimized.
