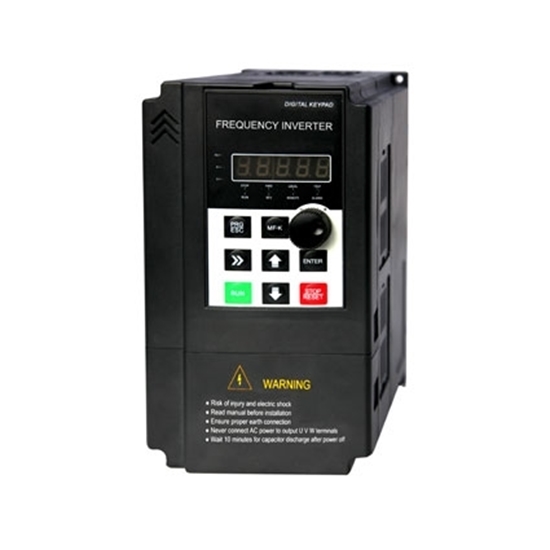

3 hp VFD, Single Phase 120V Input, 1ph/3ph 220V Output

5 out of 5 based on 9 reviews | Write a review
$346.10
3 hp single phase 120v input, single phase and three phase 220v output variable frequency drive, specially designed for 120v power supply, manufacturer direct sale.
SKU: GK3000-SP1S1-2d2
30-day Returns
Free Shipping
Delivery date: 2-3 days

3 hp (2.2 kW) VFD, single phase input & output, single phase to three phase, 110v-120v input, 220v-240v output.

Specification:

Basics Model EM15-SP1S1-2d2
Capacity 3 hp (2.2 kW)
Shipping weight 3 kg
Dimension (W x H x D) 120*205*166 mm
I/O Feature Rated current 10 A
Input voltage 1 phase 120V AC ±15% (Set FE-00=0)
Input frequency 50Hz/60Hz
Output voltage 1 phase or 3 phase 220V AC ±15%
Output frequency 0~320Hz (SFC)
Control Feature Control mode V/F control; vector control
Communication Offer RS485 communication interface, support MODBUS-RTU communication protocol
Speed regulation 1:100
Start torque 150% of rating torque at 1 Hz
Speed control accuracy ≤±0.5% of rating synchronous speed
Frequency precision Digital setting: max frequency x± 0.01%;
Analog setting: max frequency x± 0.2%
Frequency resolution Analog setting: 0.1% of max frequency;
Digital setting: 0.01Hz
Torque boost Automatic torque boost, manual torque boost 0.1%~30.0%
Interior PID controller Be convenient to make closed-loop system
Automatic energy save running Optimize V/F curve automatically based on the load to realize power save running
Automatic voltage regulation (AVR) Can keep constant output voltage when power source voltage varies.
Automatic current limiting Limit running current automatically to avoid frequent over-current which will cause trip
Environment Enclosure rating IP 20
Temperature –10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
Humidity smaller than 95%RH, non-condensation
Altitude ≤1000m; VFD will be derated if above 1000m
Vibration Less than 5.9 m/s2 (0.6 g)
Cooling forced air cooling
Store environment –20℃~ +60℃; no dust, no corrosive gas, no direct sunlight

Note: ATO VFD Cannot be used as a power source, it Can only be directly connected to an induction motor to control the motor speed.

Tips: Running a 3-phase motor from single phase supply

If you want to connect a 3-phase motor to a single phase power supply, then you have several solutions:

  • Professional: use a VFD with single phase input and convert to 3-phase output, this is generally available for low power VFD (few horsepower).
  • Professional: apply a specially wound transformer that also mimic a 3-phase system from a single phase power supply. Expect difficulties to source and high price.
  • DIY: calculate a capacitor that will be connected between the remaining phases, such to apply it a phase shift and to mimic a 3-phase system.



Existing reviews of 3 hp VFD, Single Phase 120V Input, 1ph/3ph 220V Output
Practical VFD
This single-phase VFD has quite complete functions. Anyway, I am looking for a wiring diagram to hook up an external potentiometer to control motor speed.
From: Jimmyy | Date: 16/06/2024
Was this review helpful? Yes No (0/0)
ATO Responded
You can externally connect a potentiometer with a resistance of 4.7K~10KΩ and a power of 2W-10W. Please refer to the wiring diagram on page 8 of the user manual. The potentiometer is connected to AI1, 10V, and GND, and just set F0-03=2.
I want to know that...
I was able to connect VFD to my controller successfully though is it possible to signal back to my controller if there is an error.

Also I’d like to add a breaking resistor to it though I couldn’t find anything in the manual about that.

How do I determine the resistance that I need for the breaking resistor?
From: Cyril | Date: 08/01/2024
Was this review helpful? Yes No (0/0)
ATO Responded
The braking resistor used in this VFD model EM15-SP1S1-2d2 is 100w/70Ω.

The braking resistor is connected to the P+/PB terminal.
get error code
I get error code 40 now I went through all the setting and made sure they were right.  Now I get a error 0040 .
From: Dylan | Date: 07/11/2023
Was this review helpful? Yes No (0/0)
ATO Responded
VFD displays error code 40, which means The load is too heavy or locked- rotor occurs on the motor. Also, The frequency inverter model is of too small power class. If the VFD can run normally after removing the motor, it means that your motor load is too heavy and the VFD is overloaded. We recommend that you replace it with a VFD with a 5HP capacity.
Load more reviews...
Write your review for 3 hp VFD, Single Phase 120V Input, 1ph/3ph 220V Output
  • Only registered users can write reviews
  • Bad
  • Excellent
Customers who bought this item also bought

3 hp VFD, Single Phase to Three Phase VFD

$238.14
SKU: GK3000-2S0022
Low price 3hp VFD, convert 220V/230V/240V 1 phase to 3 phase, 9.6 amps, RS485 enabled, shipping weight 3kg, manufacturer direct sale.

5 hp VFD, Single Phase to Three Phase VFD

$294.31
SKU: GK3000-2S0037
5hp variable frequency drive, single phase to three phase VFD, 17 amps, RS485 enabled, shipping weight 4kg, manufacturer direct sale.

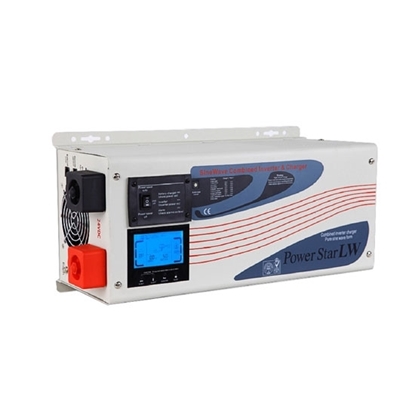

1000 Watt 12V/24V Pure Sine Wave Inverter Charger

$641.28
SKU: ATO-PI-LW1000
Efficient 1000 Watt continuous power inverter / charger generates pure sine wave power from 12V DC or 24V DC battery bank, peak power up to 3000W. Affordable-price low frequency inverter with charger has selectable AC output voltages of 110V/120V or 220V/230V/240V, and 120V/240V split phase output also available, with protections against overload, over-temperature, low battery and overcharge, real-time LCD display, compact design and easy to install, ideal for powering most household appliances.

Isolated DC Voltage Sensor for Ripple Voltage 10mV to 1000V

From $134.81
SKU: ATO-VOS-RDC1000
DC voltage sensor is a special voltage sensor for unidirectional ripple DC voltage measurement. It has a measuring range from DC 10mV/50mV/75mV/5V/150V/300V/500V to 1000V, output signal 0-5V/0-10V/0-20mA/4-20mA, supply voltage DC 12/24V, IP20 and DIN rail installation. Isolated DC voltage transducer uses modulation and demodulation technology to achieve input/output/power supply isolation.

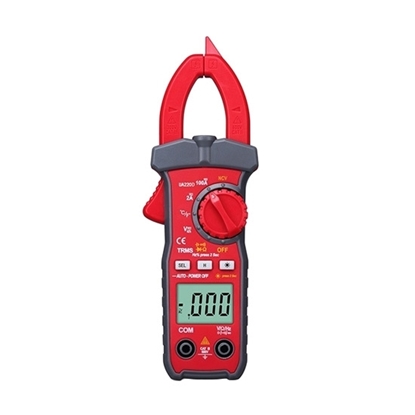

AC/DC Mini Clamp Meter with NCV/TRMS/Temperature/Capacitance
