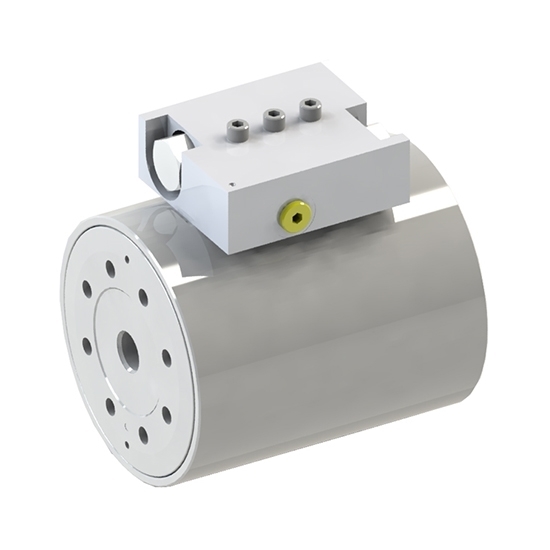

500~4500 N.m Hydraulic Rotary Actuator, 180°

5 out of 5 based on 1 reviews | Write a review

$1,243.54

Buy hydraulic rotary actuator at good price online. Output torque 500~4200 N.m, holding torque 1300~10500 N.m, rotational angle 180°, total displacement 132~1070 cc, radial load 3040~21000 lb. Rotary hydraulic cylinder actuator with helical design, balance valve option, shaft/flange output.

Output Torque *
With Balance Valve *

SKU: ATO-HRA-4500

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Hydraulic rotary actuator for sale online. Output torque 500~4200 N.m, rotating angle 180°, total displacement 132~1070 cc. Helical hydraulic rotational cylinder provided by professional manufacturer, which can be the best part of hydraulic actuation system.

Specification

Model	ATO-CY2-5	ATO-CY2-9	ATO-CY2-16	ATO-CY2-27	ATO-CY2-42
Rotation Angle	180°
Output Mode	1 front fange output
Installation Mode	Base installation mode
Output Torque	500 N.m	900 N.m	1600 N.m	2680 N.m	4200 N.m
Holding Torque	1300 N.m	2400 N.m	4400 N.m	7100 N.m	10,500 N.m
Radial Load	3040 lb	4696 lb	9237 lb	12,302 lb	21,000 lb
Axial Load	1102 lb	1499 lb	2205 lb	3086 lb	3902 lb
Displacement	132 cc	234 cc	436 cc	726 cc	1070 cc
Weight	12.5 kg	17 kg	30 kg	51 kg	77 kg

Advantages

Compared with the linear cylinder actuator added with auxiliary mechanism, hydraulic rotary actuator is compact in structure and smaller in volume, and does not require other structural parts to assist.
Compared with the vane rotary cylinder, the internal leakage of hydraulic rotary actuator is very small, almost 0.
The hydraulic rotary actuator only needs a small displacement, and the minimum can reach 20cc.
Hydraulic rotary actuator can output very high torque, up to 74630 N.m.
Hydraulic rotary actuator can achieve 0-360° rotation
The hydraulic rotary actuator can bear large radial load and axial load.
Installation modes are diversified, and the mounting method can be customized for hydraulic rotary actuator according to customer needs.
The efficiency of converting hydraulic thrust into output torque is relatively low (45%~80%). After frequent use of hydraulic rotary actuator, temperature of the hydraulic system rises quickly. Please pay attention to temperature control.

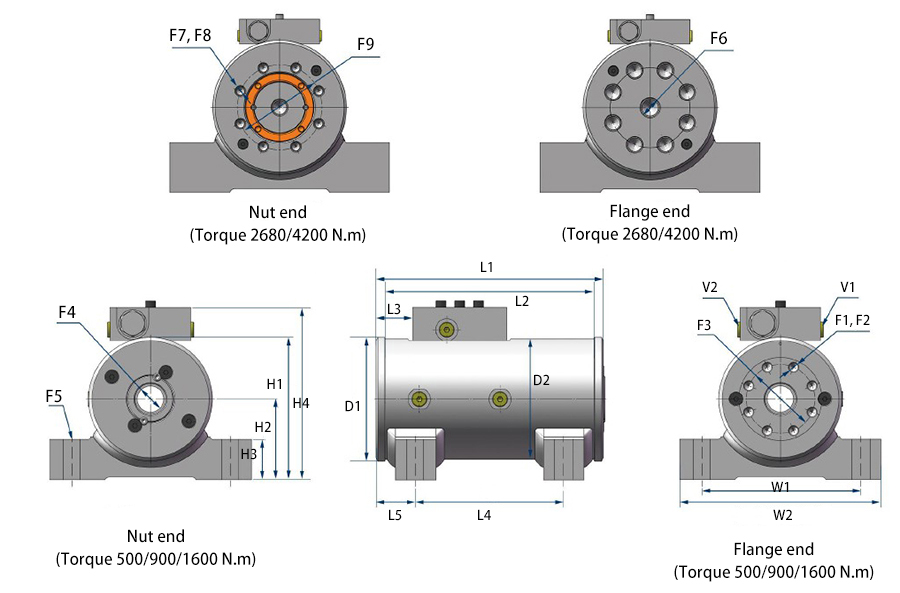

Hydraulic Rotary Actuator Dimensions Diagram (Unit: mm)

Dimensions of 4500 N.m Hydraulic Rotary Actuator, 180°

Model	ATO-CY2-5	ATO-CY2-9	ATO-CY2-16	ATO-CY2-27	ATO-CY2-42
D1 Mounting Disc Diameter	104	117	142	170	196
D2 Housing Diameter	101	114	139	165	191
F1 Flange End Threaded Hole Spec	M10 x 1. 5	M10 x 1. 5	M12 x 1. 75	M20 x 2. 5	M20 x 2. 5
F2 Flange End Threaded Hole Quantity	6	8	8	8	JO
F3 Flange End Threaded Hole Indexing Circle Diameter	53.9	65	85	102	121
F4 Inner Shaft Through Hole Spec	M20	M24	M24	-	-
F5 Foot Installation Bolt Hole Spec	M16	M20	M24	M24	M30
F6 Shaft Center Mounting Hole	-	-	-	M24 x 3	1 1/4-7
F7 Nut End Threaded Hole Spec	-	-	-	M12 x 1. 75	M16 x 2
F8 Nut End Threaded Hole Quantity	-	-	-	8	10
F9 Nut End Threaded Hole Indexing Circle Diameter	-	-	-	108	121
H1 Height without Balance Valve	119	135	158	193	218
H2 Height from Bottom to Centerline	66	76. 2	85.9	108	121
H3 Foot Height	34.3	38. I	44.5	63. 5	70
H4 Total Height	146	163	185	220	245
L1 Total Length	188	216	248	298	337
L2 Length without Rotation Flange	173	197	229	276	314
L3 Distance between Flange and Balance Valve	32	34. 5	44.7	48. 8	49
L4 Foot Mounting Hole Distance	111	140	152	184	216
L5 Distance between Flange and Mounting Hole	37.9	37. 6	47	57. 2	60.5
W1 Foot Mounting Hole Distance	145	152	197	222	267
W2 Total Width	178	191	248	279	330
P1 P2 Housing Oil Port	ISO-1179-1/BSPP G series, size 1/8"~1/4"
V1 V2 Valve Oil Port	ISO-11926/SAE series, size 7/16"

Hydraulic Rotary Actuator Output Modes Diagram

Hydraulic rotary actuator output mode is the installation mode of helical pair, standard modes are shaft output and flange output. If you need other output modes, please contact us.

Hydraulic Rotary Actuator Output Modes Diagram

Hydraulic Rotary Actuator Installation Modes Diagram

Hydraulic rotary actuator installation mode is the mounting of the main body, standard modes are foot/flange/saddle/rail types. If you need other installation modes for different working conditions, please contact us.

Tips: Why does the shaft flange end of hydraulic rotary actuator rotate slowly or not rotate?

The output torque of hydraulic rotary actuator is not enough.
The flow of hydraulic rotary actuator is too low.
Internal leakage occurs in the balance valve.
Piston and/or shaft seal of the hydraulic rotary actuator is leaking.
The thrust surface is corroded.
Hydraulic oil does not match the hydraulic rotary actuator, causing the seal and the synthetic support to expand.
