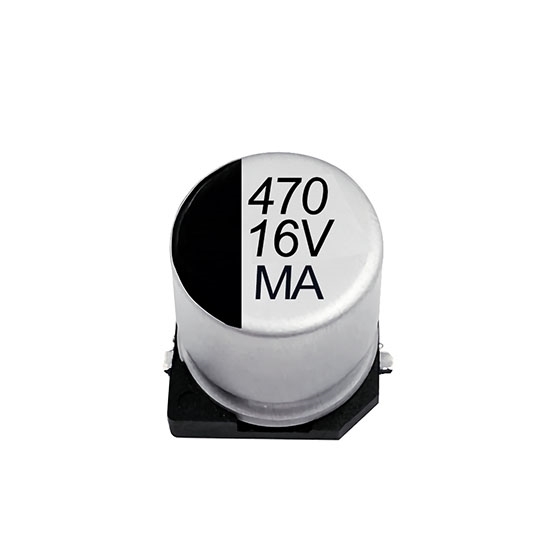

    470μF 16V SMD Electrolytic Capacitor

    Lower cost SMD electrolytic capacitor for sale online. SMD aluminum electrolytic capacitor with 470μF capacity, 16V rated voltage, ±20% cap. tolerance, operating temperature is -55~105℃. Surface mount electrolytic capacitor with stable performance and high reliability and suitable for high density assembly.
    SKU: ATO-EC-HV471M
    This product has a minimum quantity of 100
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    High-performance SMD electrolytic capacitor has low ESR and high ripple current, 24% dissipation factor. SMD aluminum electrolytic capacitors usually play the electrical functions of filtering, bypassing, coupling, decoupling, and switching.


    • Endurance: 105℃ - 2000 hours
    • Low ESR and high ripple current
    • Vibration-proof (vP) version (up to 30g) available upon request
    • AEC-Q200 version available
    • High voltage, automotive 105°C type


    Model ATO-EC-HV471M
    Capacity 470
    Rated voltage 16V
    Size 8*10.5 mm
    Installation type Surface mount
    Operating temperature -55~105℃
    Cap. tolerance (C) ±20% (120Hz 20℃)
    Dissipation factor (tanδ) 24%
    Low temperature characteristic at 120Hz (Z ratio max.) 3 (Z-25℃/Z+20℃)
    Leakage current (Lleak) 0.01*CR*Vor 3  * after 2 minutes
    Enduarance (105℃) Test 2000h
    ∆C 20% of initial measured value
    tanδ ≤200% of specified measured value
    Lleak ≤ the specified measured value
    Shelf life (105℃) Test 1000h
    ∆C 20% of initial measured value
    tanδ ≤200% of specified measured value
    Lleak ≤ the specified measured value
    Resistance to soldering heat (105℃) ∆C Within ±10% of initial value
    tanδ Less than specified value
    Lleak Less than specified value

    Dimension (mm)

    SMD electrolytic capacitor dimension

    Model Dimension (mm)
    ATO-EC-HV471M ∅D 8
    L 10.5
    a Max
    A 8.3
    B 8.3
    C 9
    W 0.7~1.1
    P±2 3.1

    Tips:  What is Electrolytic Capacitor?

    SMD electrolytic capacitors are usually made of metal foil (aluminum/ tantalum) as the positive electrode, and the insulating oxide layer of the metal foil (alumina/ tantalum pentoxide) as the dielectric. Electrolytic capacitors are divided into aluminum electrolytic capacitors and Tantalum Electrolytic Capacitors. The negative electrode of aluminum electrolytic capacitors consists of thin paper/film or electrolyte polymer soaked in an electrolyte (liquid electrolyte); the negative electrode of tantalum electrolytic capacitors is usually manganese dioxide. Electrolytic capacitors get their name because they all use electrolytes as negative electrodes (note the distinction from dielectrics).
