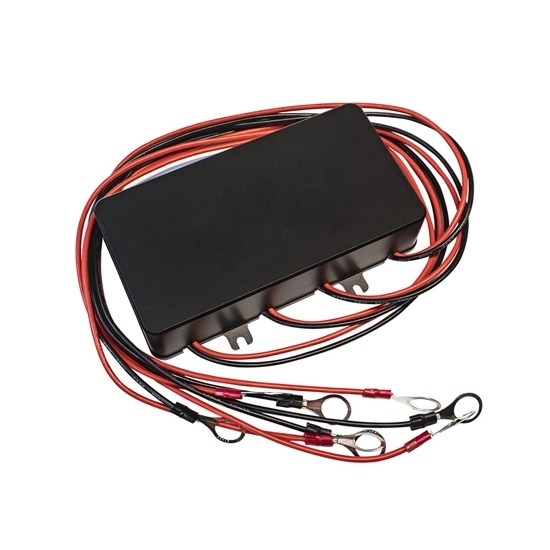

4S 10A Active Battery Balancer, 4x12V

The 4s active battery balancer employs advanced circuitry to monitor each cell's voltage and redistribute energy, promoting uniformity. This LiPo battery balancer is widely used in various applications, including electric vehicles, portable electronics, and renewable energy systems.

Specification

• Model: ATO-BE-201
• Number of Battery Pack Strings: 4S (4 Batteries Connected in Series)
• Battery Nominal Voltage: 4*12V (2.AV-12V)
• Working Current: 0-10A
• Standby Current: 5mA
• Working Temperature: -20℃~+50℃
• Protection: Reverse Polarity Protection
• Connecting Line: 50cm
• Terminal: φ8mm/ φ10mm
• Diameter: 129*69*28mm

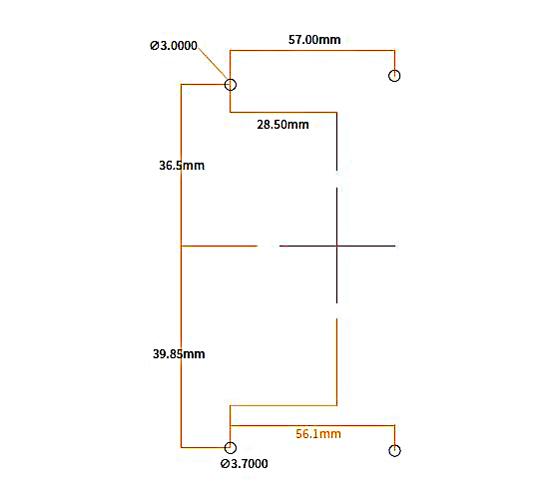

Dimension (Unit: mm)

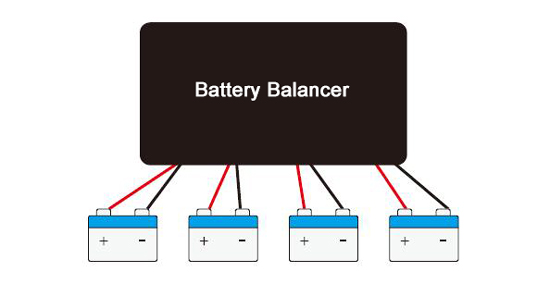

Wiring

1. Black cable connects negative/-pole.
2. Red cable connects positive/+ pole.
3. When the battery pack is less than 4, the additional cable can be suspended (the positive and negative ends should be avoided), which does not affect the equalization effect.

Note:

1. Please read the instructions before installing the equipment.
2. Before connecting to the balancer, please confirm the positive and negative electrodes of the battery pack to avoid a short circuit between the terminals of the equalizer.

Tips: How does an active battery balancer work?
