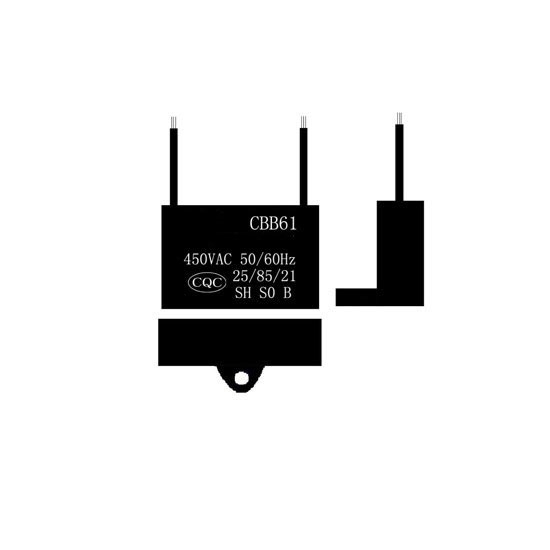

    5μF 450V Ceiling Fan Capacitor

    Square ceiling fan capacitor with capacity value 5μF, small loss and low temperature rise, high reliability, explosion-proof, long service life, proper installation of ceiling fan capacitors can improve efficiency.
    SKU: ATO-FC-CBB61-050
    This product has a minimum quantity of 100
    30-day Returns
    Free Shipping
    Delivery date: 10-12 days

    2 Wire small capacitor for high speed fan, rated voltage 450V AC, capacitance tolerance 5%, ceiling fan capacitor dimension 47 x 19 x 31mm, 250V voltage can be customized, small size, flat bottom housing, easy to install.


    • Model: ATO-FC-CBB61-050
    • Capacity: 5μF
    • Rated Voltage: 450V
    • Tolerance: ±5%
    • Withstand Voltage: 2. 0 Un (2s)
    • Loss: (DF)≤0.0010 100Hz
    • Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
    • Rated Frequency: 50/60Hz
    • Climate Category: 40/105/21
    • Scope of Application: Start, run
    • Appearance: Rectangular
    • Lead Out Method: Cord, pin, insert
    • Dielectric Material: Organic thin film
    • Dimension: 47(W) x 19(L) x 31(H)mm
    • Certificate: CE, CQC

    5μF Ceiling Fan Capacitor Wiring Diagram

    Ceiling fan capacitor circuit diagram


    Ceiling fan capacitor details

    Ceiling fan capacitor detail

    Tips: Electric fan press the speed control key, why the motor buzzing sound?

    1. The motor buzzing sound means that the motor can not start, remove the starting capacitor to measure whether the capacity has become small or failed or bulging, if so, replace the starting capacitor with a new one.
    2. Turn the fan motor blade by hand to see if the blade rotation is very smooth, if it is very smooth, it means that the motor bearing is not rusty, if it does not turn, you need to disassemble the motor and clean the motor bearings and shaft. If the motor bearings are not rusty, you need to disassemble the motor, clean the bearings and the shaft, and add some oil to lubricate it after cleaning.
    3. The above situation is not a problem, which is the motor winding between turns heat bad, or bearing jammed situation In this case, we can only replace the motor motor.
