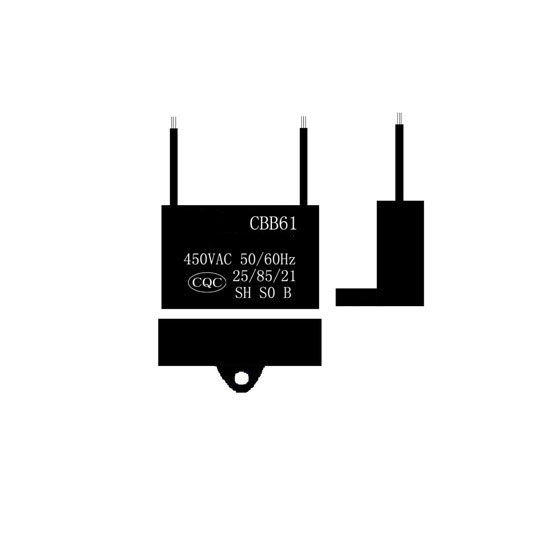

    8μF 450V Ceiling Fan Capacitor

    Buy low price ceiling fan capacitor, rated capacity 8μF, AC voltage 450V, low loss, excellent electrical performance, long service life, widely used in ceiling fans, wall fans, pedestal fans and industrial fans to start the work.
    SKU: ATO-FC-CBB61-080
    This product has a minimum quantity of 100
    30-day Returns
    Free Shipping
    Delivery date: 10-12 days

    Low cost 8 mfd ceiling fan capacitor for sale, tolerance ±5%, rated voltage 450V AC, inch 48 x 23 x 35mm, widely used in running range hood fan, ventilation fan, water pump, motor, generator and other machines.


    • Model: ATO-FC-CBB61-080
    • Capacity: 8μF
    • Rated Voltage: 450V
    • Tolerance: ±5%
    • Withstand Voltage: 2. 0 Un (2s)
    • Loss: (DF)≤0.0010 100Hz
    • Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
    • Rated Frequency: 50/60Hz
    • Climate Category: 40/105/21
    • Scope of Application: Start, run
    • Appearance: Rectangular
    • Lead Out Method: Cord, pin, insert
    • Dielectric Material: Organic thin film
    • Dimension: 48(W) x 23(L) x 35(H)mm
    • Certificate: CE, CQC

    8μF Ceiling Fan Capacitor Wiring Diagram


    Ceiling fan capacitor circuit diagram

    Ceiling fan capacitor details

    Ceiling fan capacitor detail

    Tips: What is metallized film capacitor

    Metallized film capacitor is a layer of metal film vaporized on the surface of polyester film instead of metal foil as the electrode, because the thickness of metallized film layer is much smaller than the thickness of metal foil, so the volume after winding is much smaller than the volume of metal foil capacitor. The biggest advantage of metalized film capacitors is the "self-healing" feature. The so-called self-healing property means that if the film dielectric is defective at a certain point or has a short circuit due to overvoltage, the metallized layer at the breakdown point can melt and evaporate instantly under the arc and form a small metal-free zone, so that the two poles of the capacitor can be insulated from each other again and still continue to work, thus greatly improving the reliability of the capacitor.
