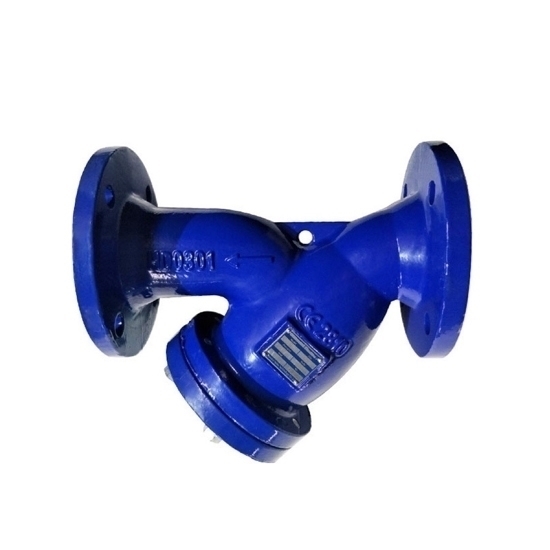

5 inch Cast Iron Y Strainer

Note: This Y type strainer cannot be used for drinking water.

Good price 5 inch ductile iron Y type strainer with DN125 nominal diameter, flange connection, working pressure PN16, commonly used in water supply systems to effectively filter out sand, rust, sediment and other debris.

Specifications

• Model: ATO-GL41H-16Q
• Type: Y Type Strainer
• Size: 5 inch (DN125, 125mm)
• Connection Method: Flange Connection
• Material: Ductile Cast Iron
• Pressure: PN16
• Applicable Temperature: -10~200℃
• Suitable Medium: Water, oil etc.
• Design and Manufacture: GB/T 14382
• Pressure Test: GB/T 14382
• Applications: Food, medicine, chemical industry, environmental protection, water treatment, water supply and drainage.

Dimension (Unit: mm)

Applications

Y-type strainers can remove impurities, debris, and solid particles from fluid or gas pipelines in industrial and commercial applications. They are typically used in applications where a high flow rate is required, and where there is a risk of damage to equipment or processes from the presence of solid particles.

Tips: Material Types of Y Strainers

• Brass: Offers good corrosion resistance and is used in plumbing and low-pressure systems. It is also non-sparking and has a nice appearance but is less strong.
• Stainless Steel: Highly resistant to corrosion and high temperatures, making it suitable for aggressive fluids and high-pressure applications. It is durable and has a long service life.
• Ductile Iron: Known for its high strength and durability, it is used in high-pressure and heavy-duty industrial applications. It may require coating for corrosion resistance.
• Carbon Steel: Cost-effective and strong, used in general industrial applications. It may need protective coating to prevent corrosion, especially in harsh environments.
• Plastic (e.g., PVC, CPVC): Lightweight, resistant to corrosion, and suitable for non-metallic fluid applications. Ideal for less aggressive or lower-pressure systems.
