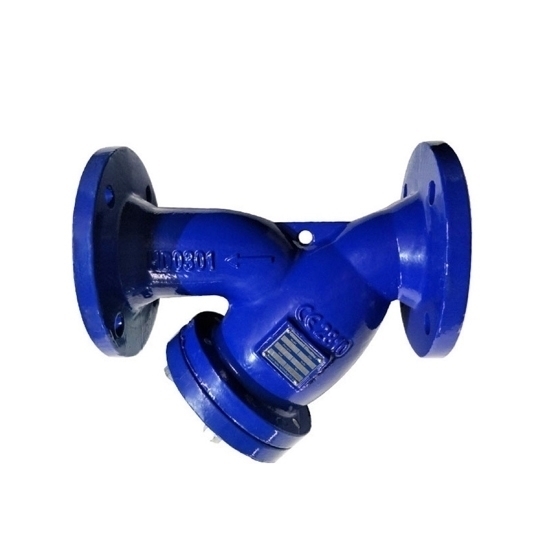

    4 inch Cast Iron Y Strainer

    $297.38
    The flanged 4 inch (DN100) Y strainer valve is used in piping systems to remove unwanted particles, debris, and other impurities from fluid flowing through the system. Ductile cast iron materials can withstand -10~200℃ high temperature and PN16 working pressure.
    SKU: ATO-YTS-100
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Ductile iron 4 inch Y strainer filter features PN16 working pressure and flange connection. 100mm wye strainer is easy to install and use, can effectively remove unwanted particles and debris from fluid systems.

    Specifications

    • Model: ATO-GL41H-16Q
    • Type: Y Type Strainer
    • Size: 4 inch (DN100, 100mm)
    • Connection Method: Flange Connection
    • Material: Ductile Cast Iron
    • Pressure: PN16
    • Applicable Temperature: -10~200℃
    • Suitable Medium: Water, oil etc.
    • Design and Manufacture: GB/T 14382
    • Pressure Test: GB/T 14382
    • Applications: Food, medicine, chemical industry, environmental protection, water treatment, water supply and drainage.

    Dimension (Unit: mm)

    Y yype strainer dimension

    DN INCH L φA φB φC
    DN100 4 350 215 180 155


    Applications

    Y-type strainers can remove impurities, debris, and solid particles from fluid or gas pipelines in industrial and commercial applications. They are typically used in applications where a high flow rate is required, and where there is a risk of damage to equipment or processes from the presence of solid particles.

    Y strainer applications

    Tips: Brass vs. Ductile Iron Y-type Strainer

    • Material Strength: Ductile iron is stronger and more durable, making it suitable for high-pressure and heavy-duty applications, whereas brass is less strong but offers better corrosion resistance for less demanding environments.
    • Corrosion Resistance: Brass has superior corrosion resistance, especially in water and chemical environments, while ductile iron may require additional coating to resist corrosion effectively.
