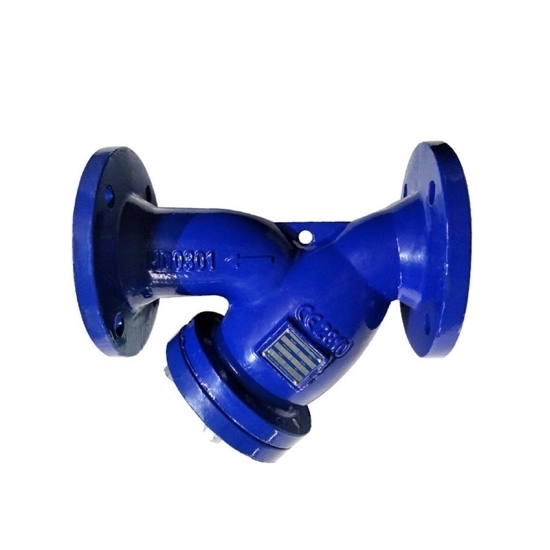

2-1/2 inch Cast Iron Y Strainer

Note: This Y type strainer cannot be used for drinking water.

Cost effective 2-1/2" ductile iron Y pattern strainer, PN16 working pressure and flanged connection, can be installed in the pipe and act as a filter to capture particles such as sediment, scale and debris that may be present in the fluid.

Specifications

• Model: ATO-GL41H-16Q
• Type: Y Type Strainer
• Size: 2-1/2 inch (DN65, 65mm)
• Connection Method: Flange Connection
• Material: Ductile Cast Iron
• Pressure: PN16
• Applicable Temperature: -10~200℃
• Suitable Medium: Water, oil etc.
• Design and Manufacture: GB/T 14382
• Pressure Test: GB/T 14382
• Applications: Food, medicine, chemical industry, environmental protection, water treatment, water supply and drainage.

Dimension (Unit: mm)

Applications

Y-type strainers can remove impurities, debris, and solid particles from fluid or gas pipelines in industrial and commercial applications. They are typically used in applications where a high flow rate is required, and where there is a risk of damage to equipment or processes from the presence of solid particles.

Tips: Advantages of ductile iron Y-type strainer

• High Strength: Ductile iron is stronger than regular cast iron, making the strainer durable and able to withstand high pressure.
• Corrosion Resistance: Ductile iron strainers are often coated to resist corrosion, suitable for water treatment and chemical processes.
• Flexibility: The material is slightly flexible, reducing the risk of breakage under stress or impact.
• Cost-Effective: Despite a higher initial cost, ductile iron strainers are durable and require less maintenance, lowering long-term costs.
• Easy Maintenance: Y-type strainers are designed for easy cleaning and maintenance without dismantling the entire unit.
• Versatility: Suitable for various applications like HVAC systems, oil and gas pipelines, and industrial processes, protecting equipment from debris.
